Seat Cushion - Rear

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

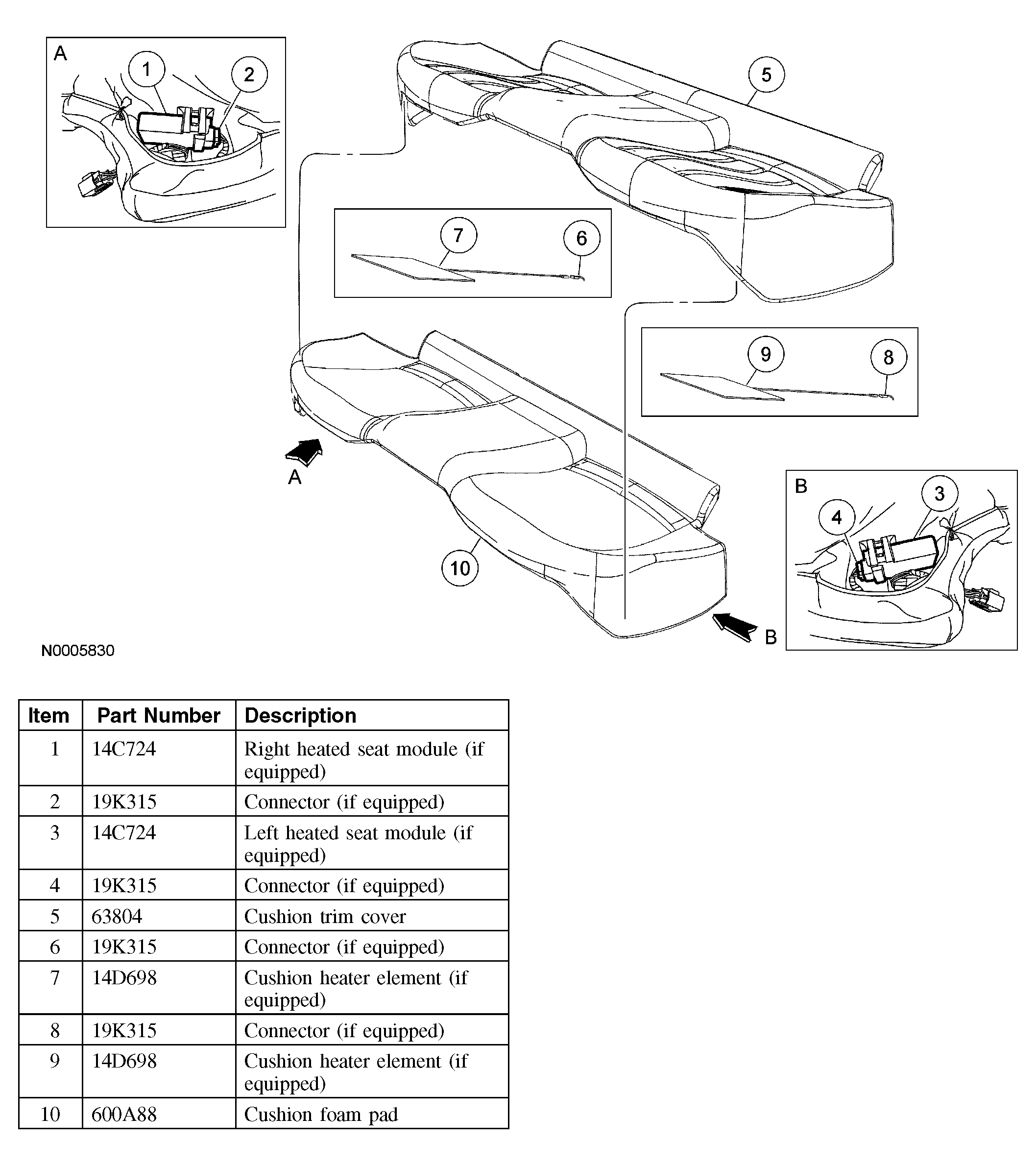

Fig 1: Identifying Rear Seat Cushion
G03999589Courtesy of FORD MOTOR CO.
  1. Using a suitable tool, release the mini-buckle.
    Fig 2: Identifying Mini-Buckle
    G03999570Courtesy of FORD MOTOR CO.
  2. Release the 2 levers located at the lower outboard edges of the seat cushion, lift the cushion up and pull the cushion out.
    Fig 3: Identifying Lower Seat Cushion Releasing Latch
    G03945904Courtesy of FORD MOTOR CO.
  3. If equipped, disconnect the heated seat electrical connectors at both outboard sides of the seat cushion.
    Fig 4: Disconnecting Heated Seat Electrical Connectors At Both Outboard Sides Of Seat Cushion
    G03999572Courtesy of FORD MOTOR CO.
  4. Remove the seat cushion.
  5. If equipped, remove and disconnect the right heated seat module.
  6. If equipped, remove and disconnect the left heated seat module.
  7. Remove all the outer seat cushion trim cover hog rings.
    8. CAUTION: Use care when separating the seat upholstery from the hook and loop strip, or the hook and loop strip can be torn from the seat cushion foam pad.
  8. Separate the hook and loop fasteners.
  9. Remove all the inner seat cushion trim cover hog rings.
  10. Remove the seat cushion trim cover.
  11. If equipped, disconnect and remove the right cushion heater element as needed.
  12. If equipped, disconnect and remove the left cushion heater element as needed.
  13. To assemble, reverse the disassembly procedure.
