Driver/Passenger Rear Heated Seat Module C3162/C3163

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

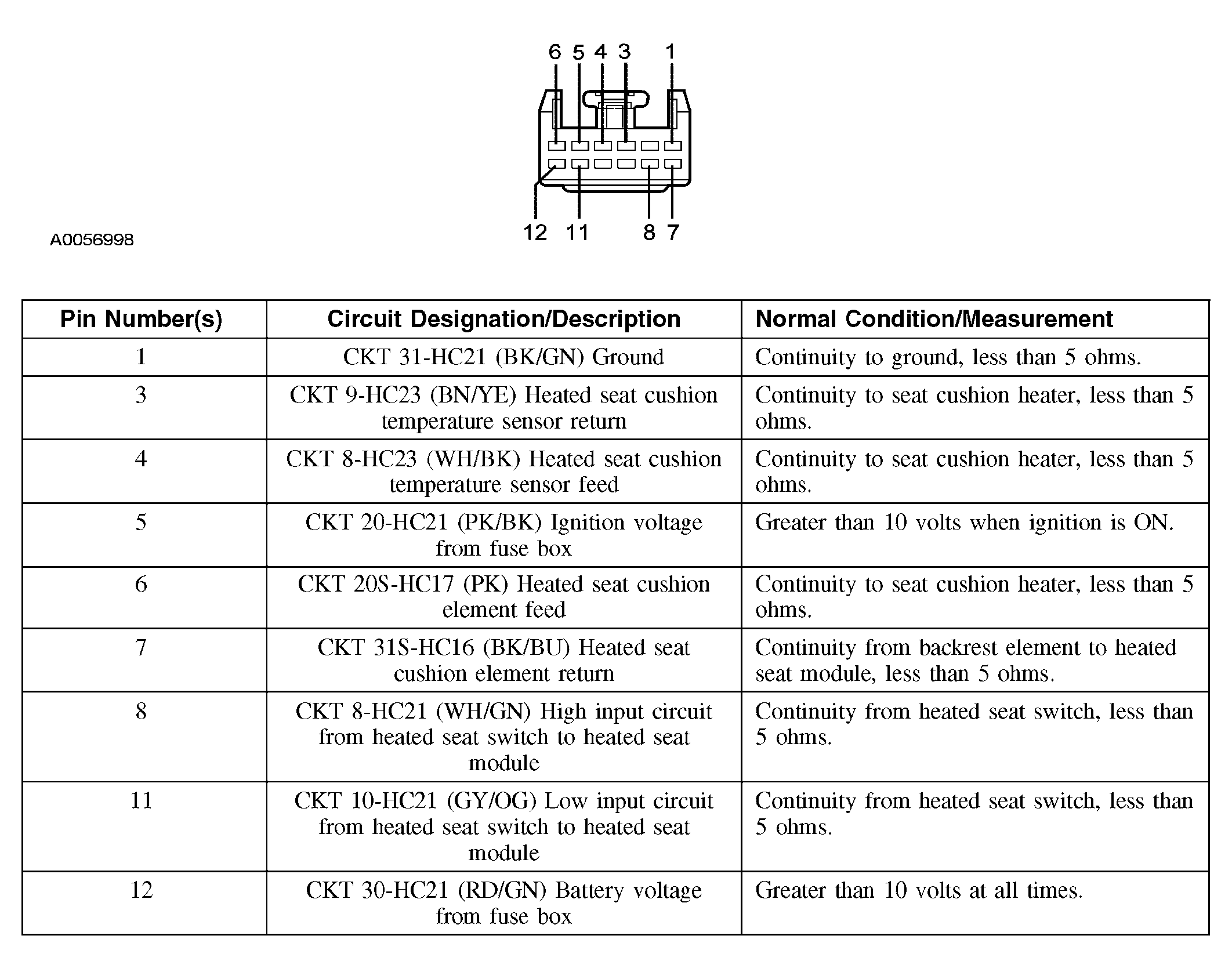

Fig 1: Identifying Driver/Passenger Rear Heated Seat Module C3162/C3163 Connector Pins
G03999353Courtesy of FORD MOTOR CO.
