Driver Climate Controlled Seat Backrest TED C3034

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

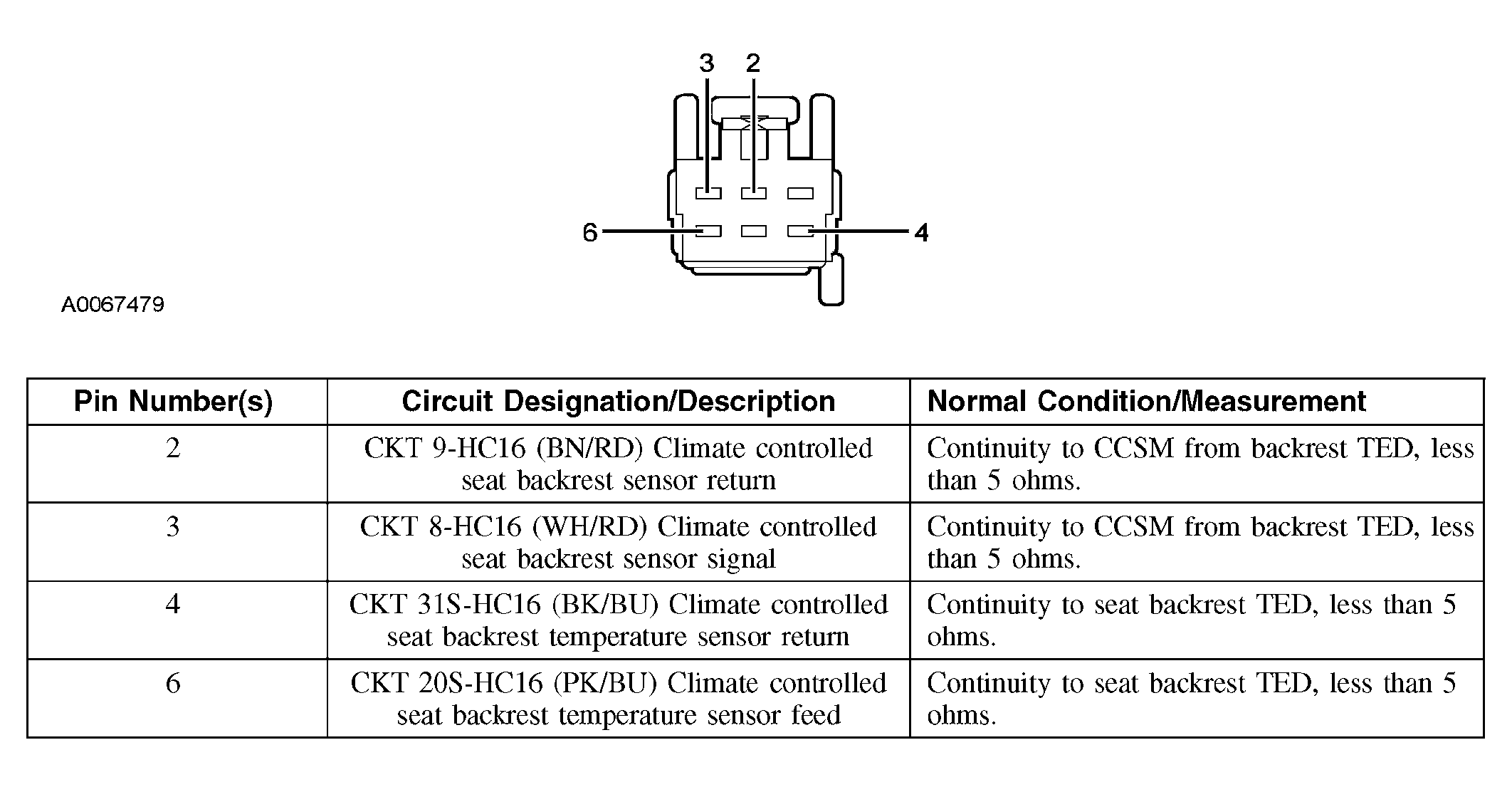

Fig 1: Identifying Driver Climate Controlled Seat Backrest TED C3034 Connector Pins
G03999369Courtesy of FORD MOTOR CO.
