Removal and Installation

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear seat bolsters. For additional information, refer to SEATING .
Using the special tool, remove the RH and LH rear safety belt anchor bolts.
- To install, tighten to 40 Nm (30 lb-ft).
Fig 1: Removing RH And LH Rear Safety Belt Anchor Bolts Using Special Tool
Courtesy of FORD MOTOR CO.
Position the weatherstrips aside, and remove the 2 rear quarter trim panels.
Remove the rear center safety belt cover.
Remove the 3 pin-type retainers, pull down the rear seat latch covers and remove the parcel shelf trim panel.

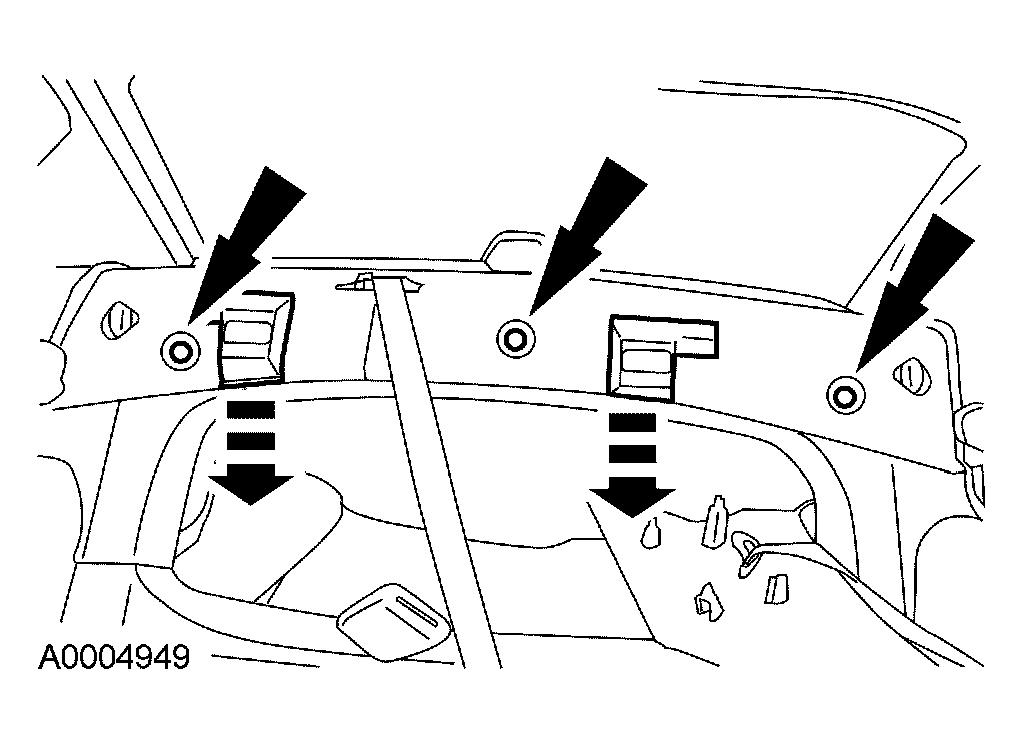

Fig 2: Identifying The 3 Pin-Type Retainers
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
