Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

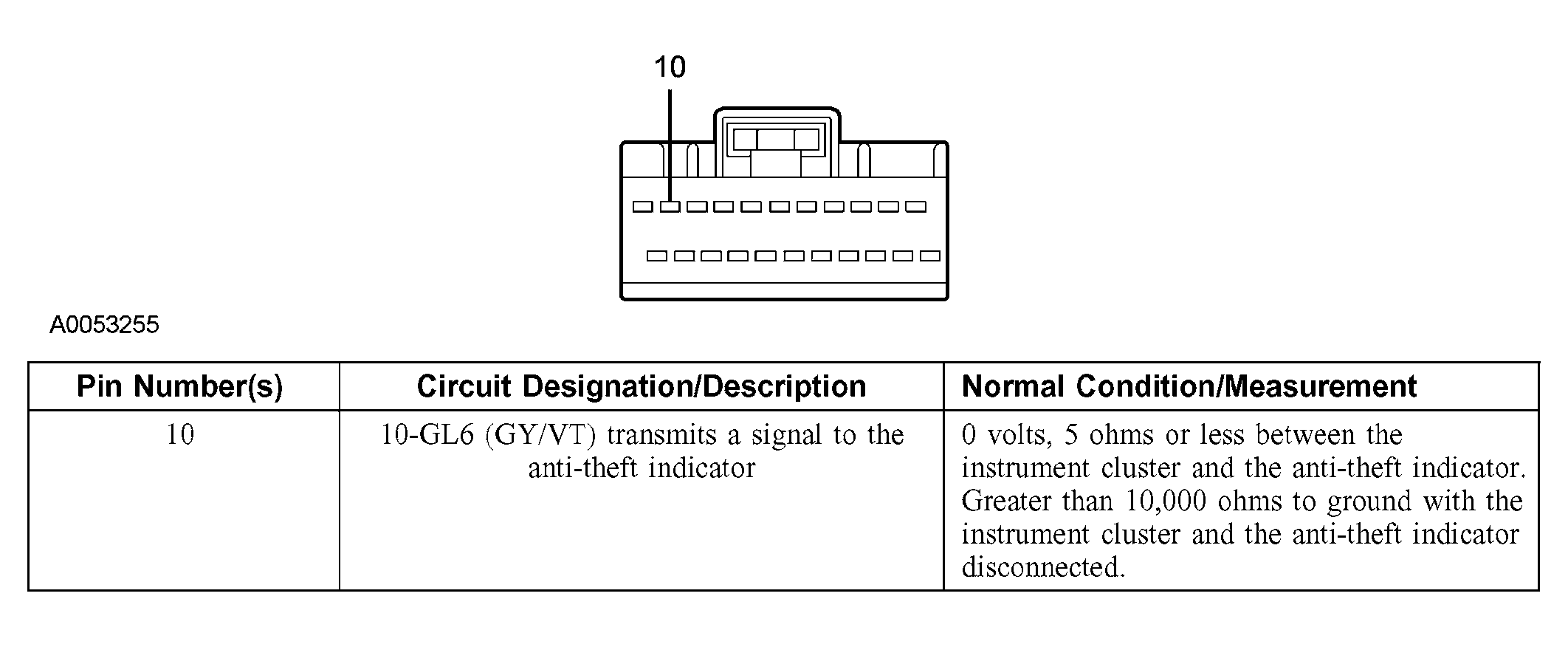

Fig 1: Instrument Cluster C220a
G03999092Courtesy of FORD MOTOR CO.

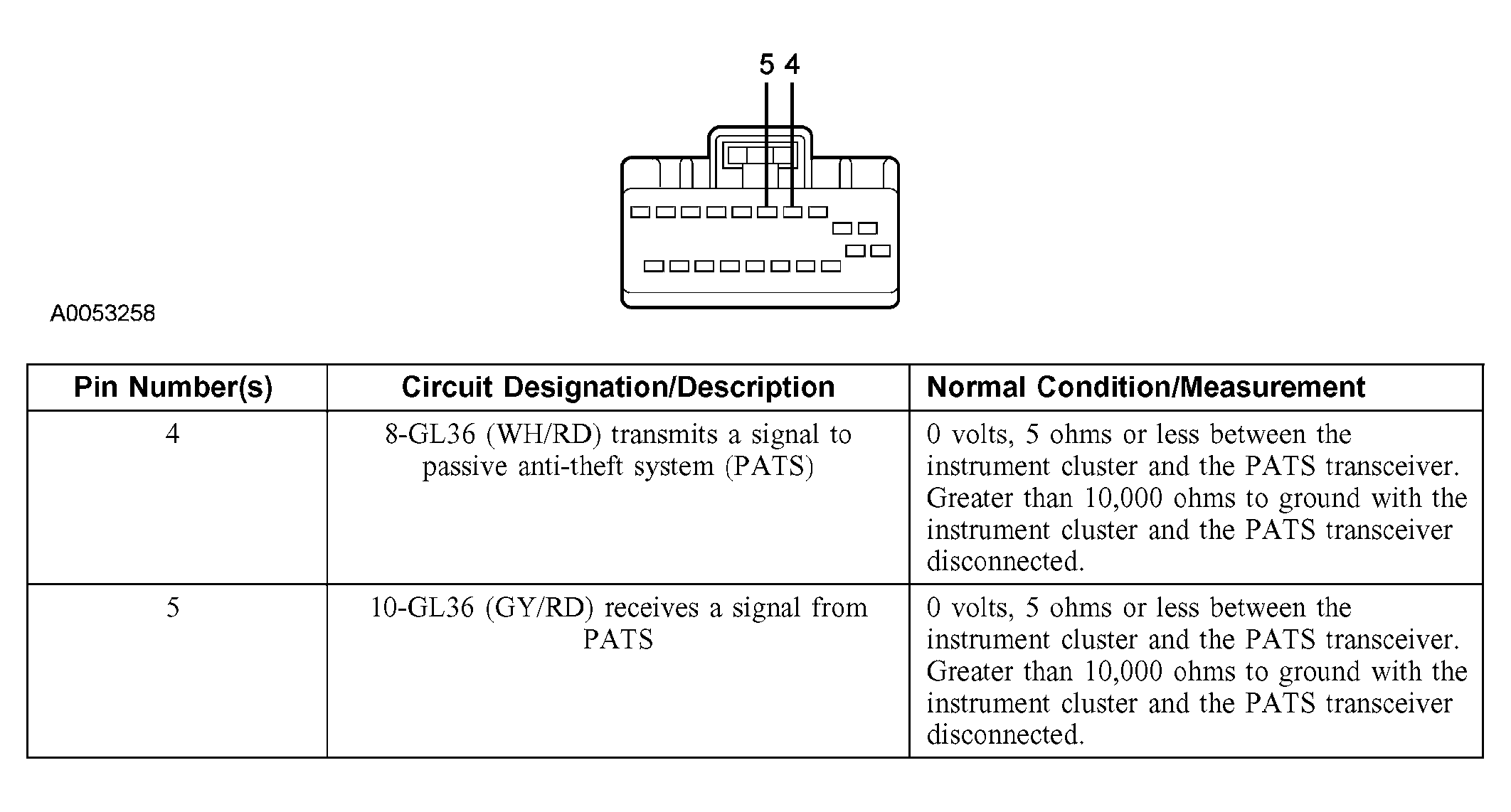

Fig 2: Instrument Cluster C220b
G03999093Courtesy of FORD MOTOR CO.

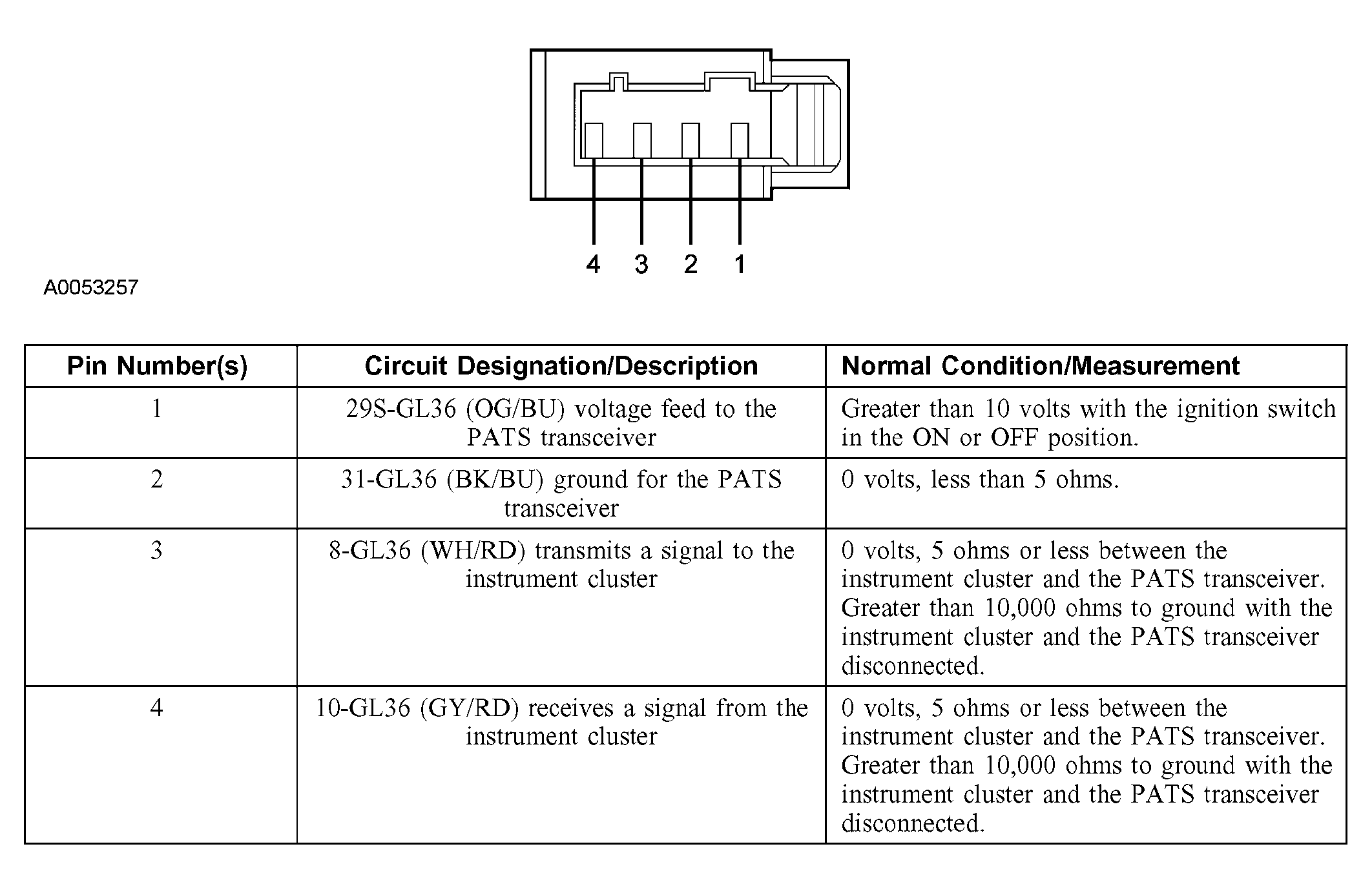

Fig 3: Passive Anti-Theft System (PATS) C252
G03999094Courtesy of FORD MOTOR CO.

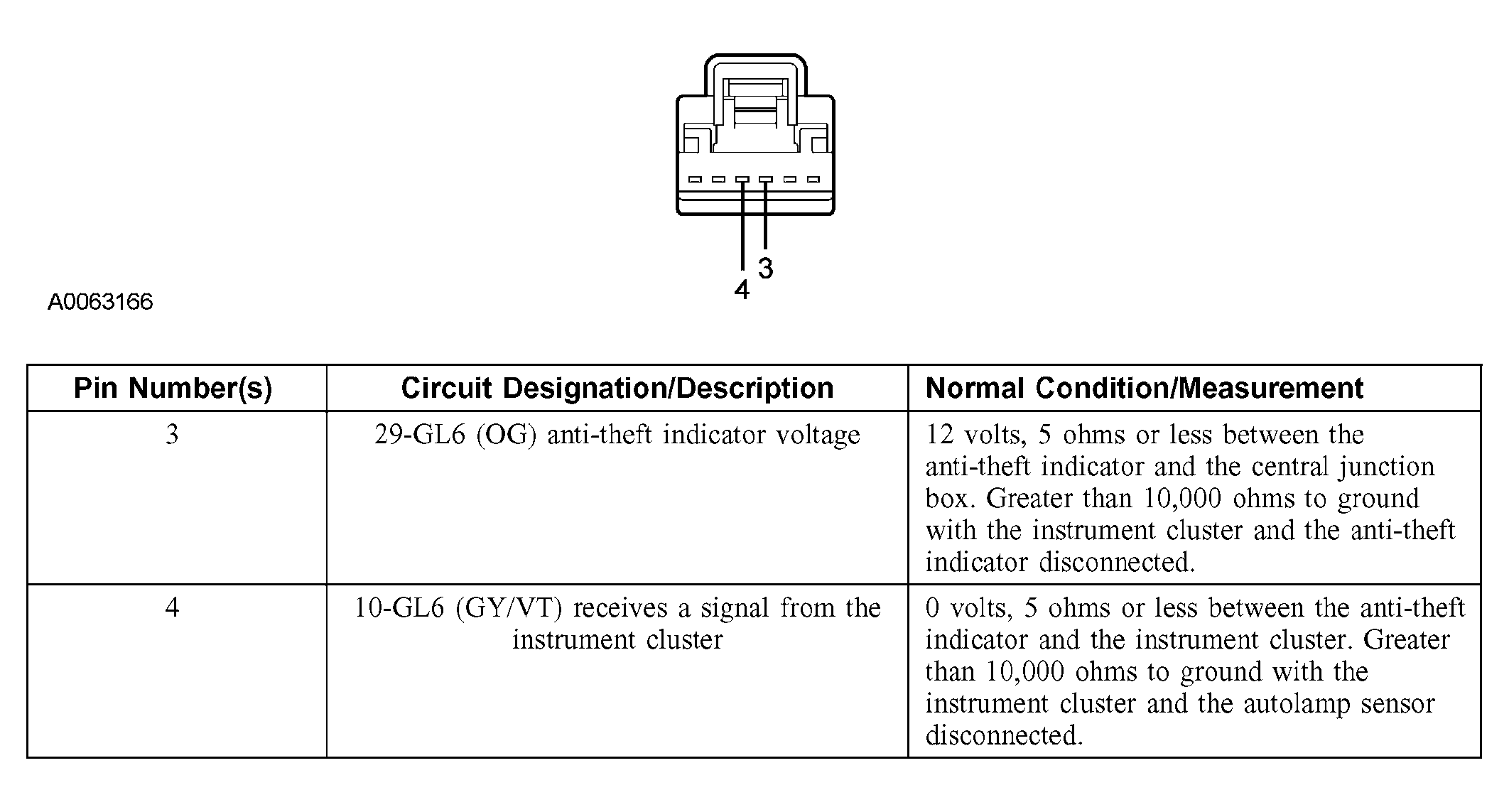

Fig 4: Sunload Sensor C286
G03999095Courtesy of FORD MOTOR CO.
