Connector Circuit Reference: Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

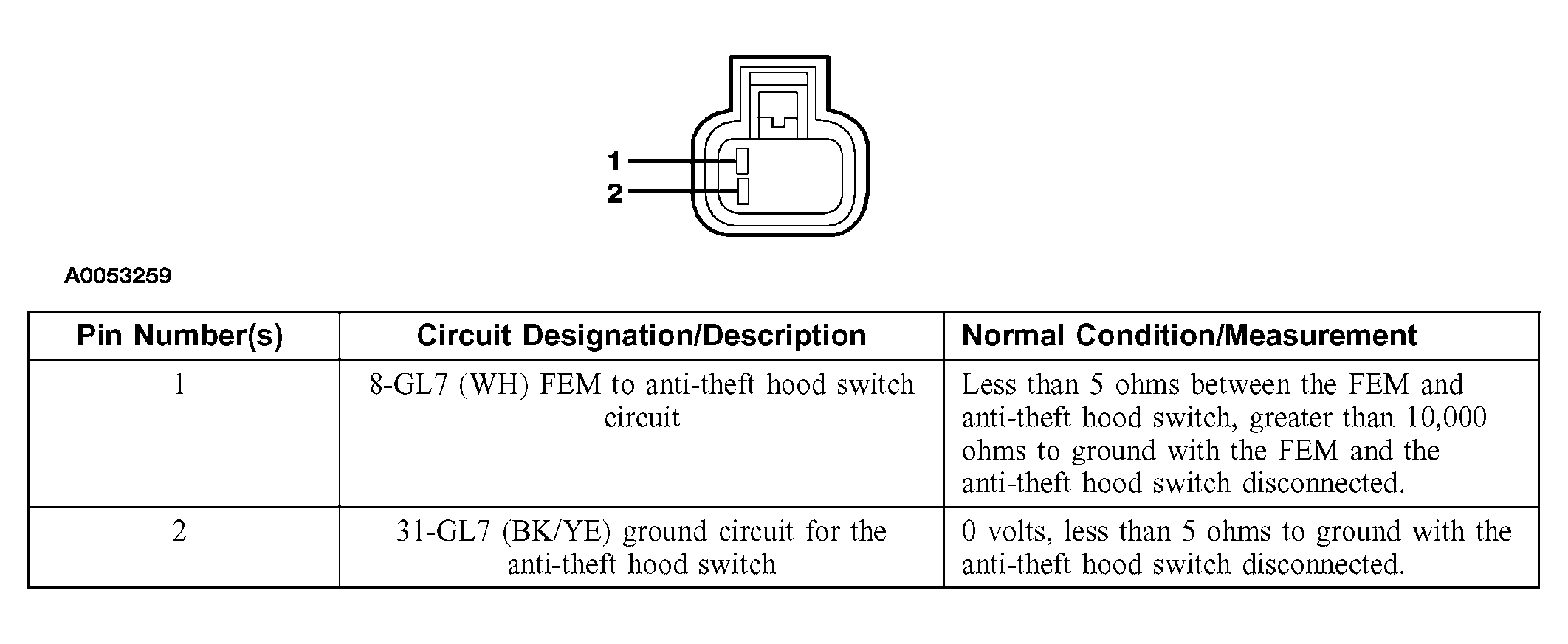

Fig 1: Anti-Theft Hood Switch C127

Courtesy of FORD MOTOR CO.

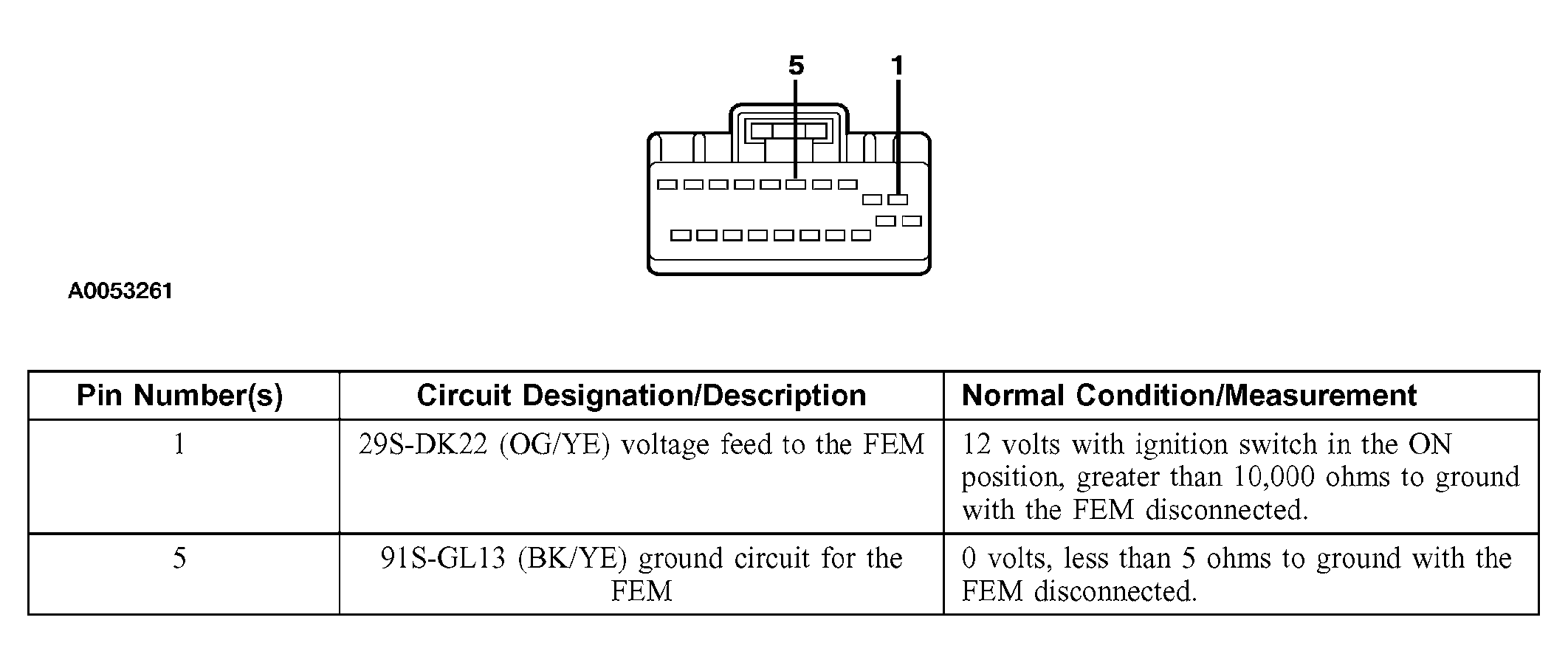

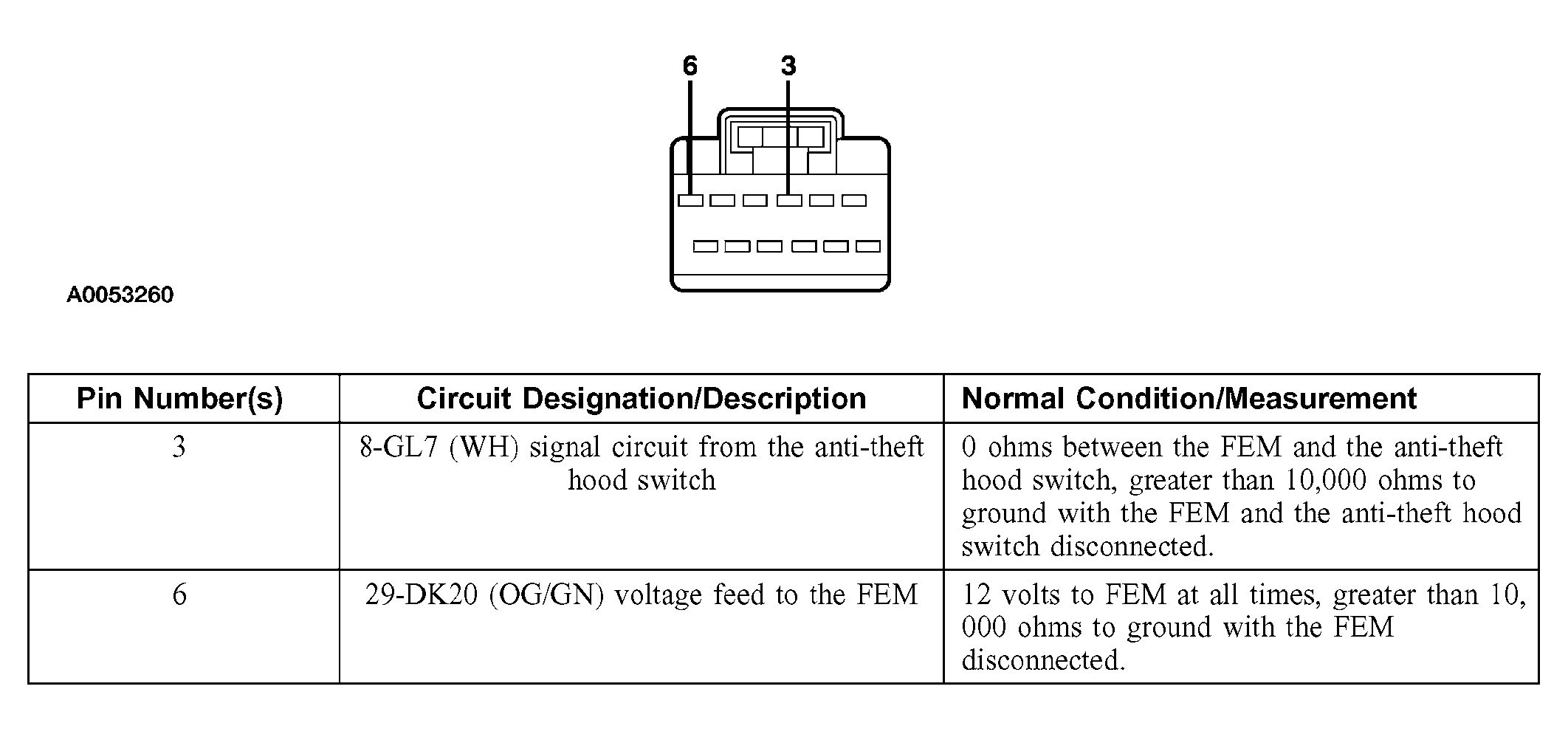

Fig 2: Front Electronic Module (FEM) C201a

Courtesy of FORD MOTOR CO.

Fig 3: Front Electronic Module (FEM) C201c

Courtesy of FORD MOTOR CO.

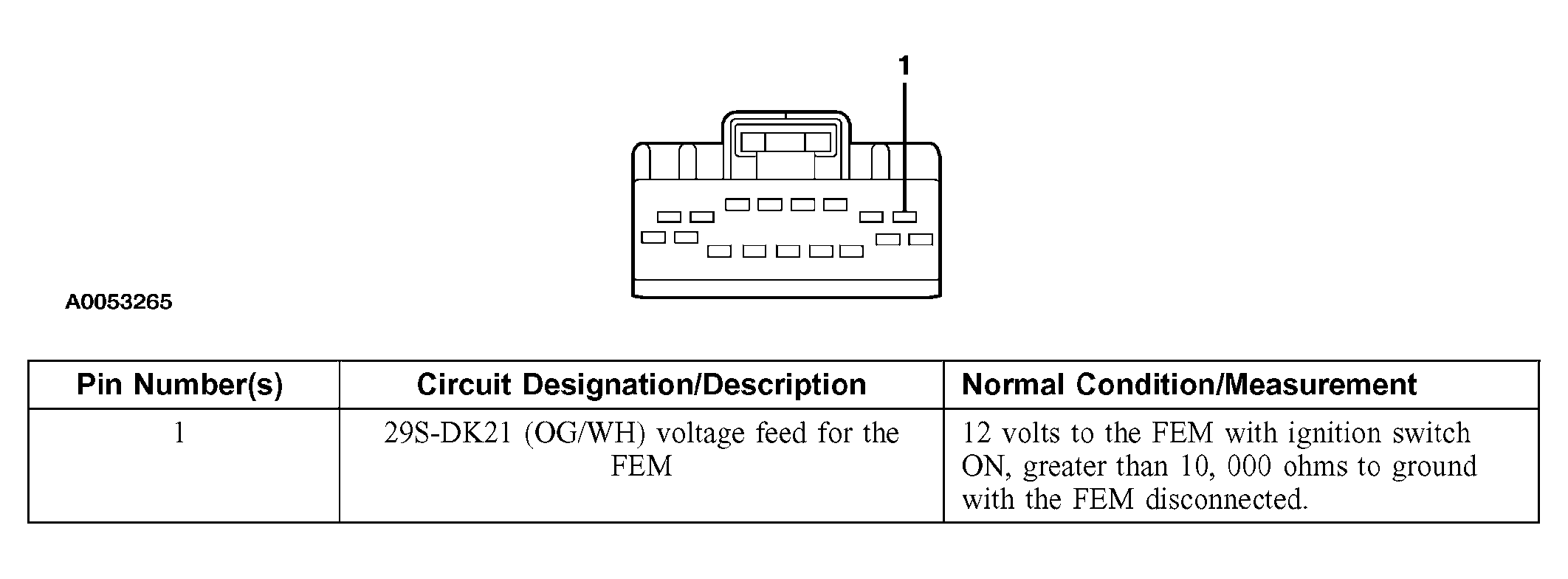

Fig 4: Front Electronic Module (FEM) C201f

Courtesy of FORD MOTOR CO.

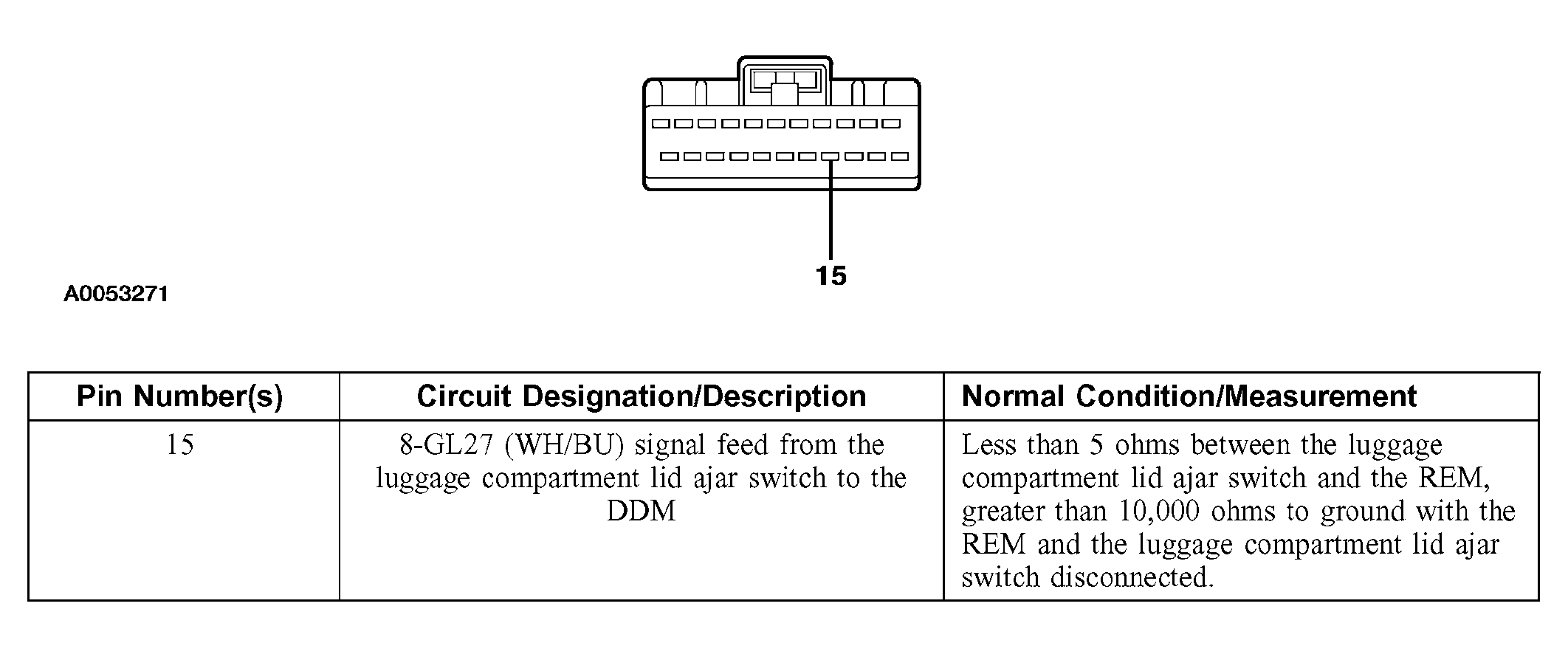

Fig 5: Rear Electronic Module (REM) C420b

Courtesy of FORD MOTOR CO.

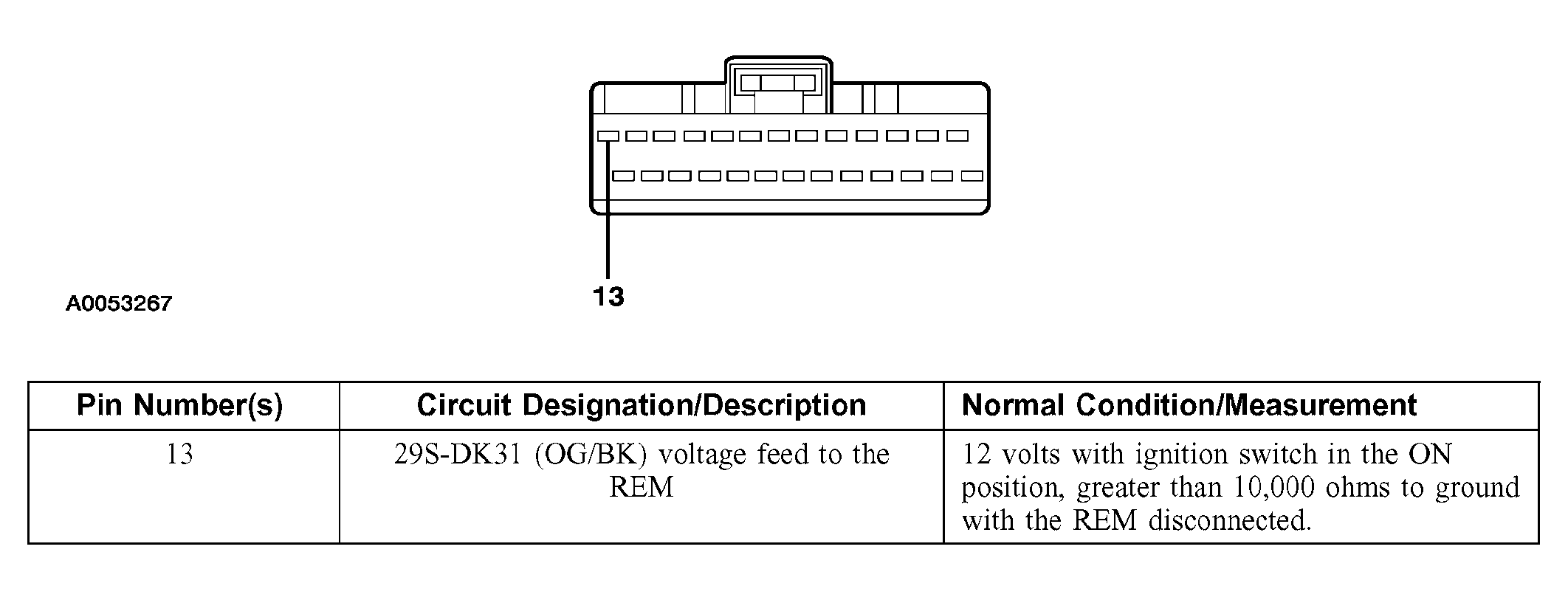

Fig 6: Rear Electronic Module (REM) C420c

Courtesy of FORD MOTOR CO.

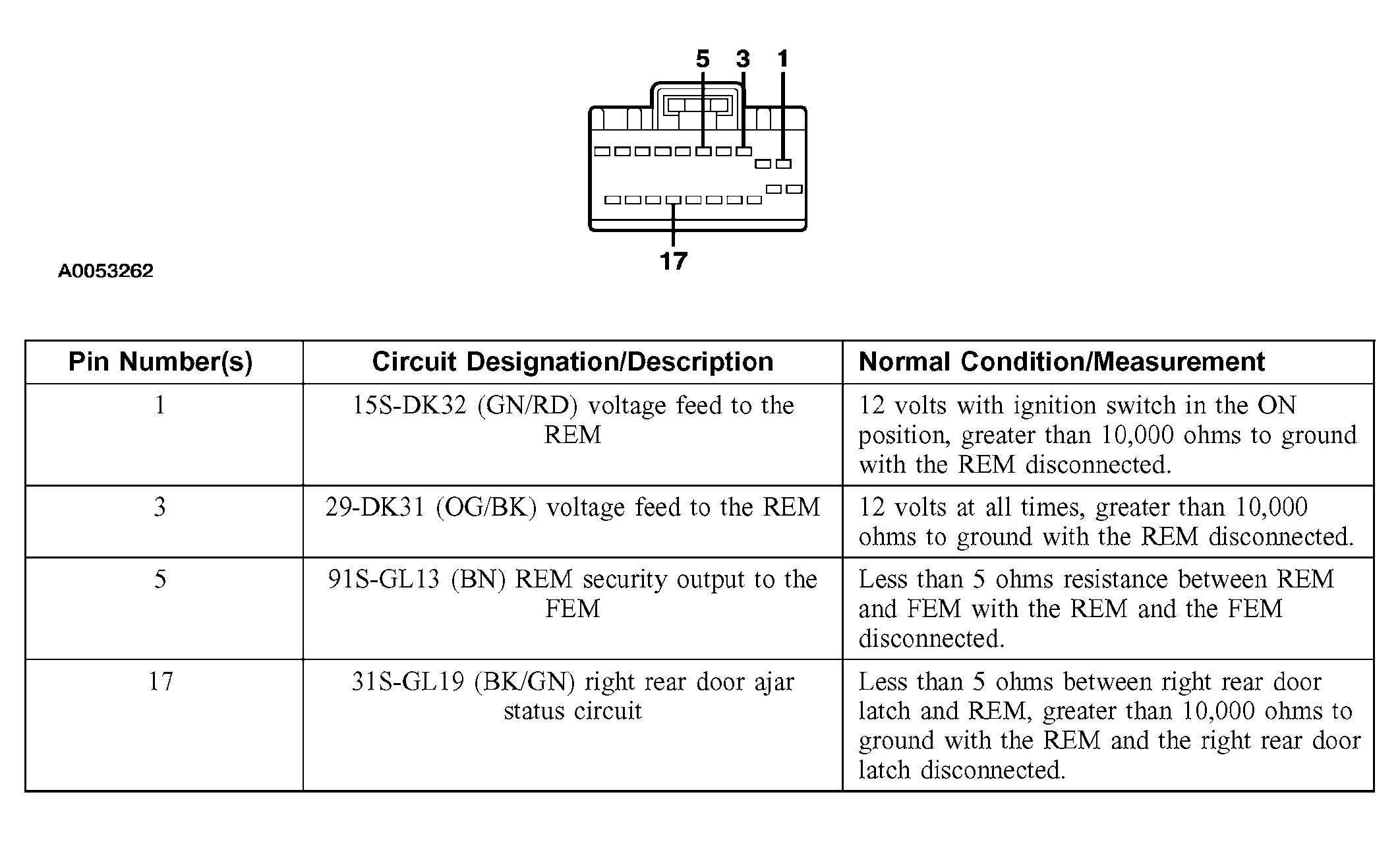

Fig 7: Rear Electronic Module (REM) C420d

Courtesy of FORD MOTOR CO.

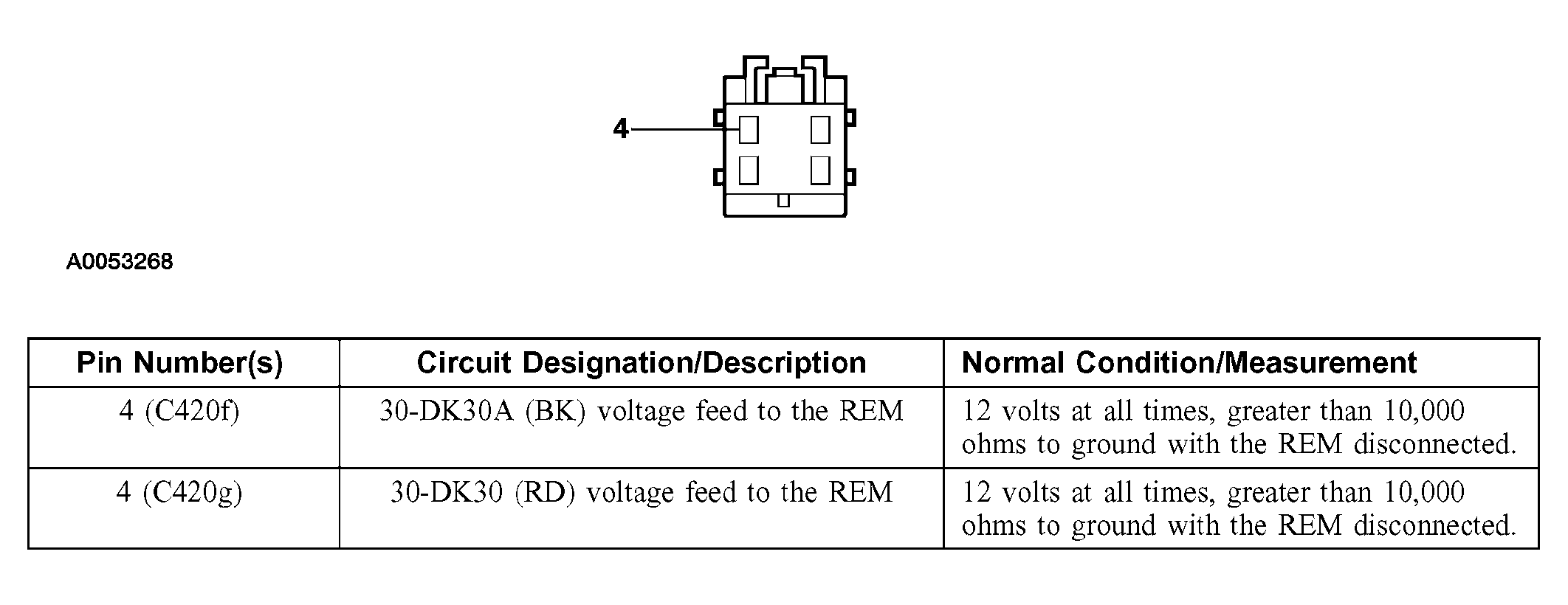

Fig 8: Rear Electronic Module (REM) C420f, C420g

Courtesy of FORD MOTOR CO.

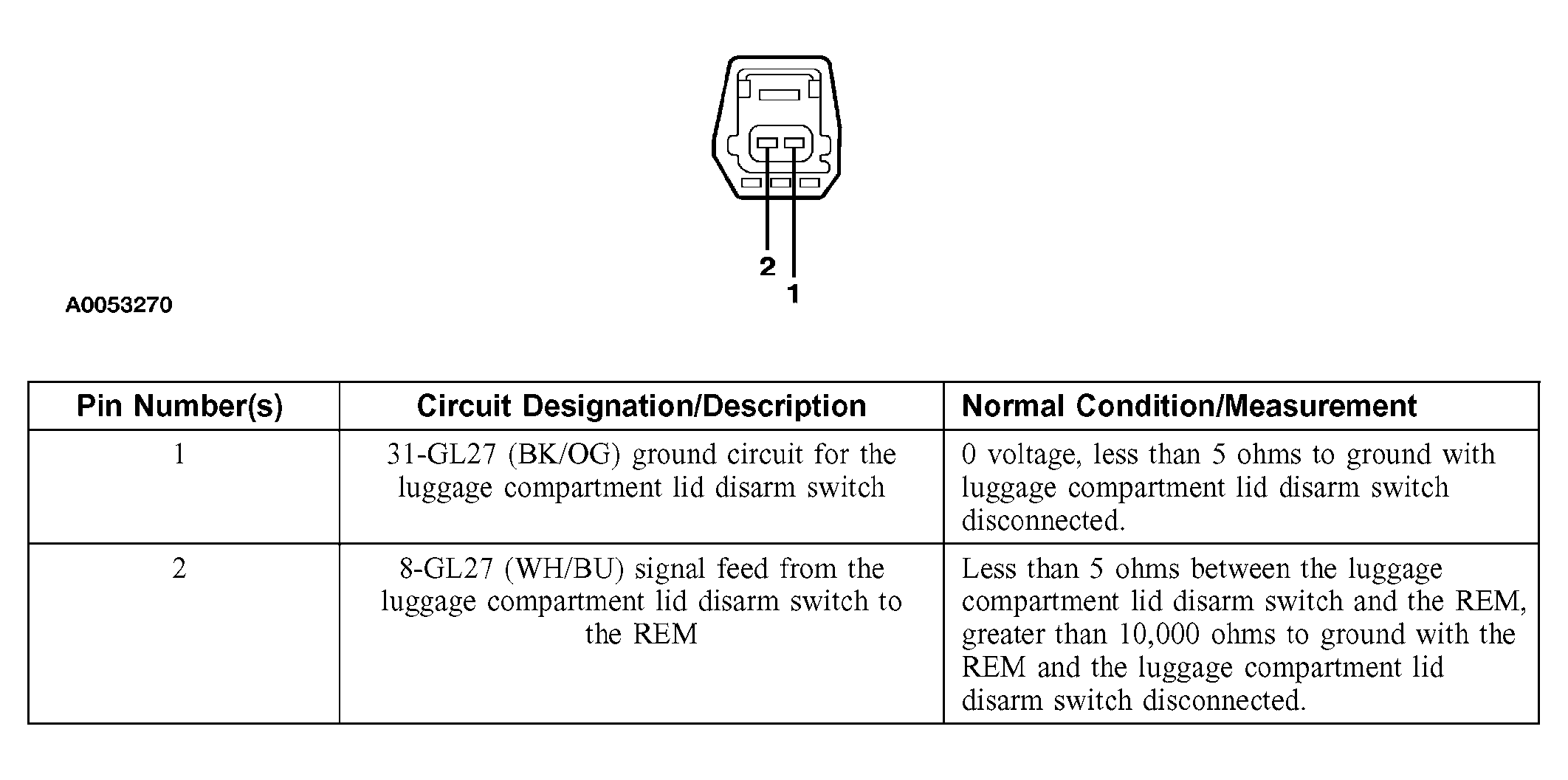

Fig 9: Luggage Compartment Lid Disarm Switch C483

Courtesy of FORD MOTOR CO.

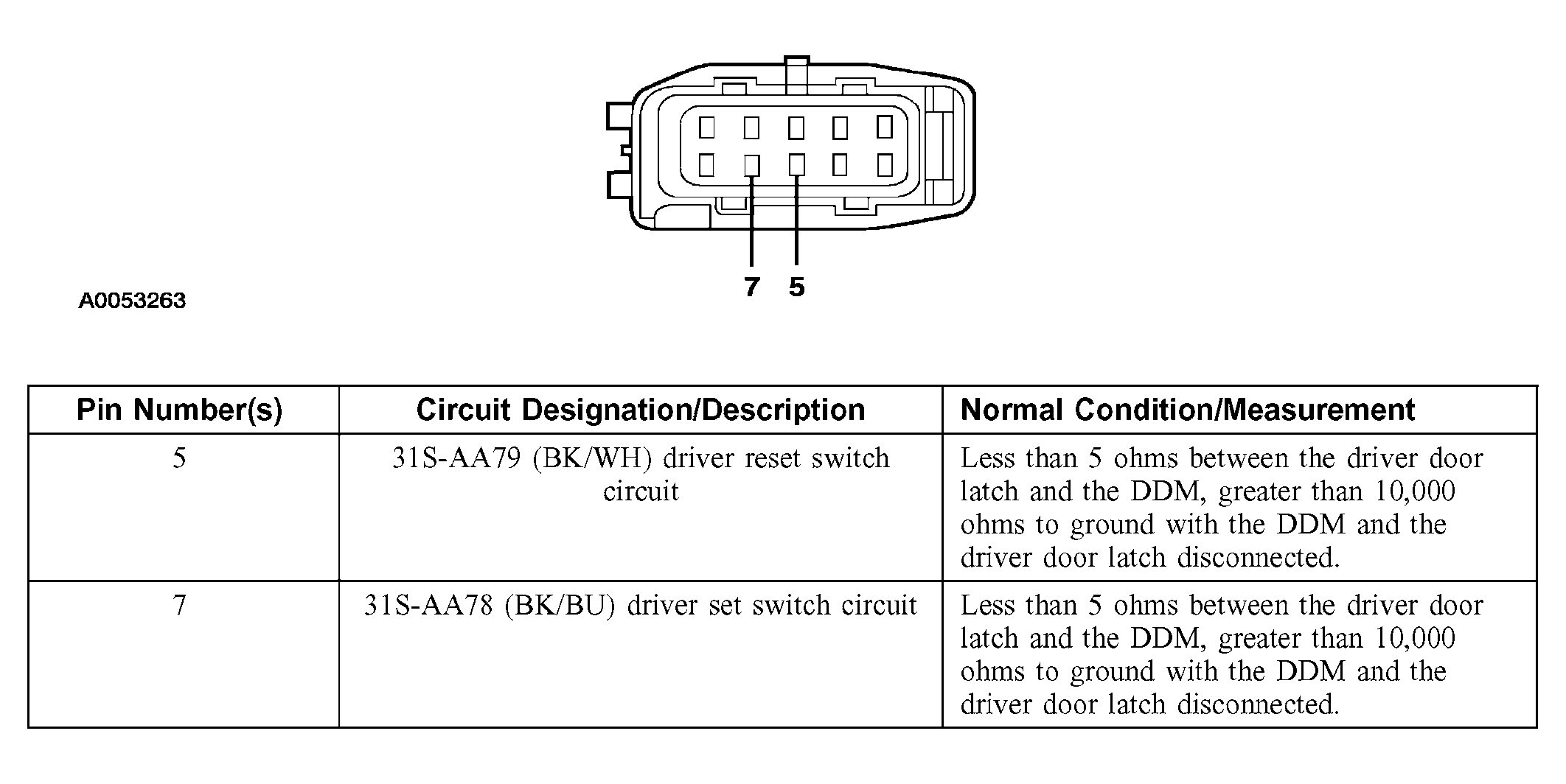

Fig 10: Driver Door Module (DDM) C501a

Courtesy of FORD MOTOR CO.

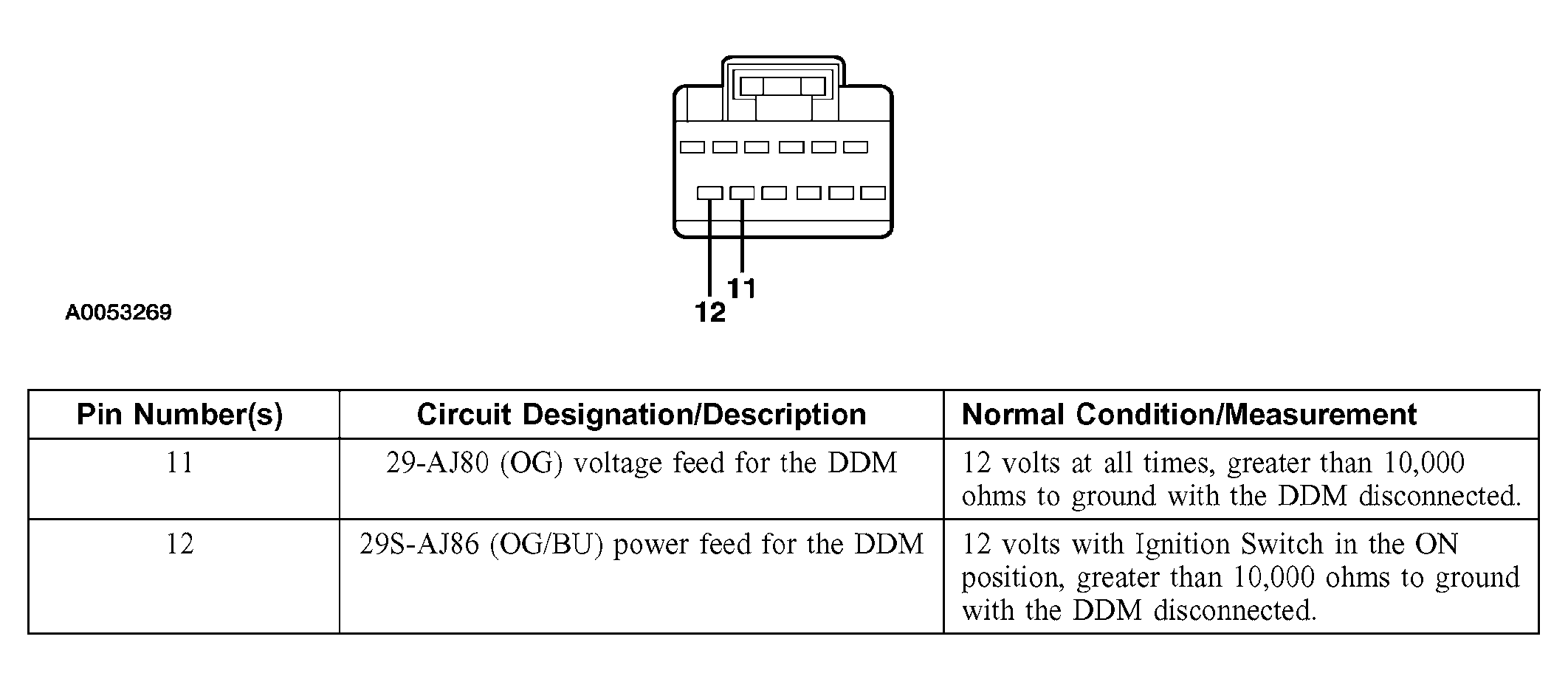

Fig 11: Driver Door Module (DDM) C501c

Courtesy of FORD MOTOR CO.

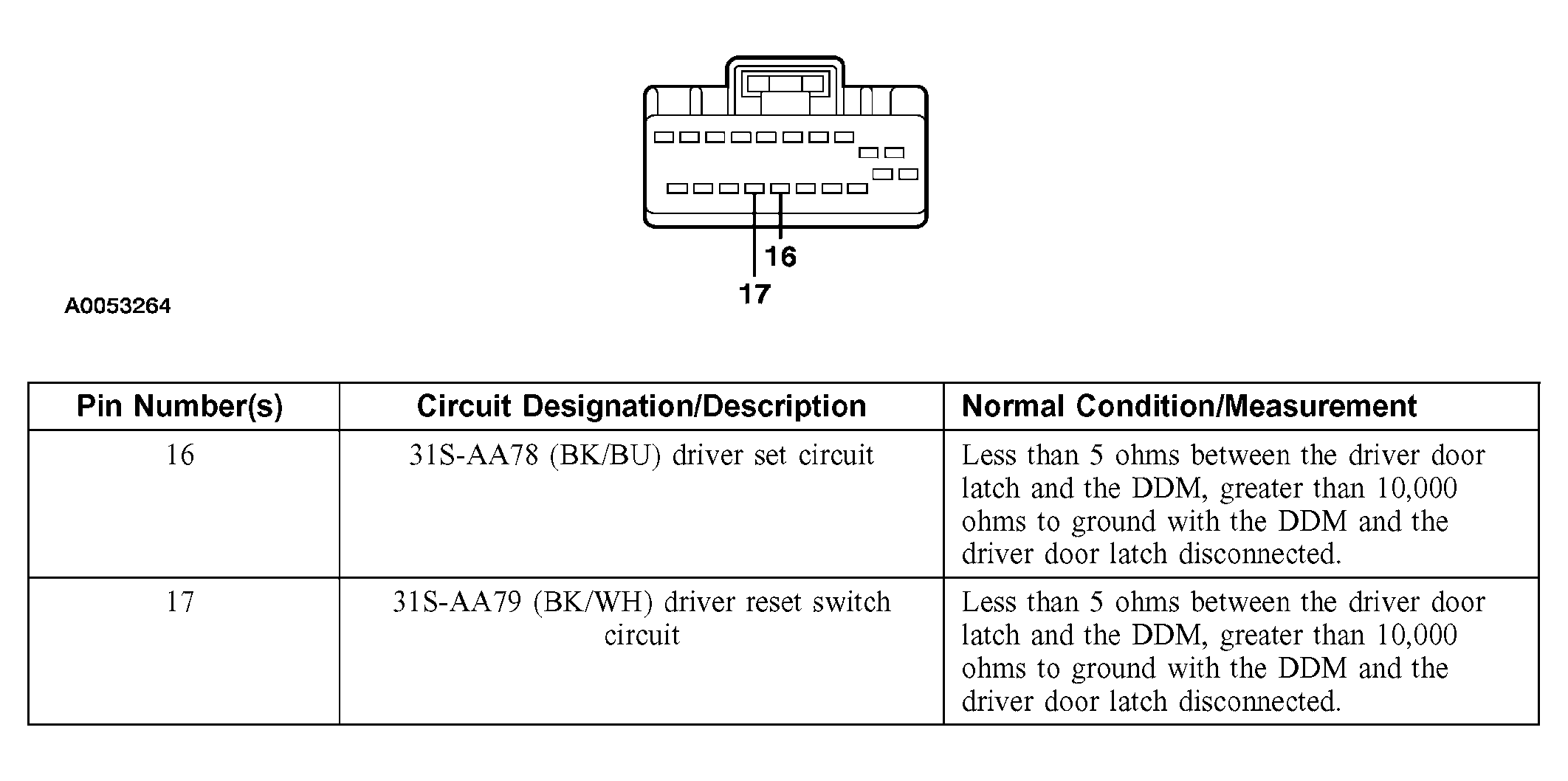

Fig 12: Drivers Door Lock Unit C525

Courtesy of FORD MOTOR CO.
