Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

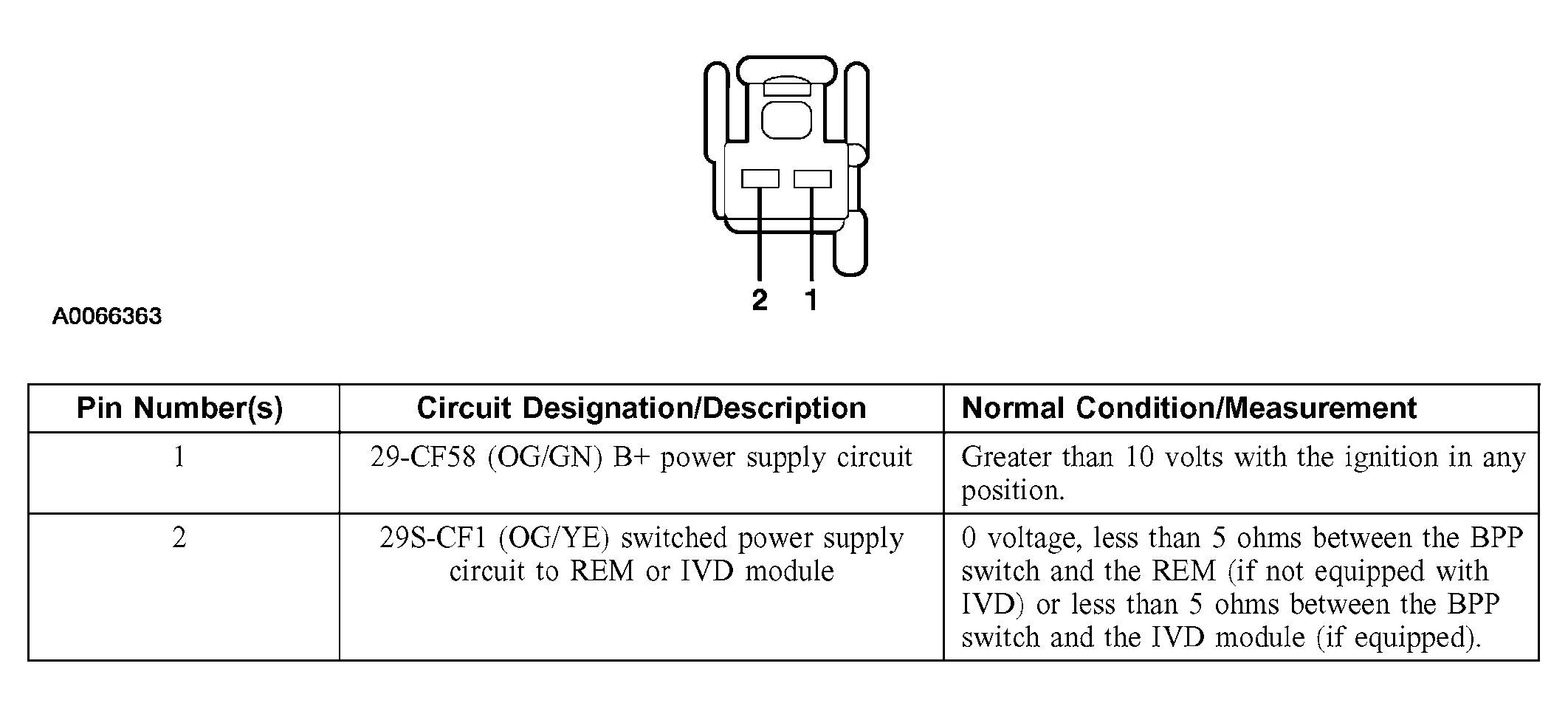

Fig 1: BPP Switch C278

Courtesy of FORD MOTOR CO.

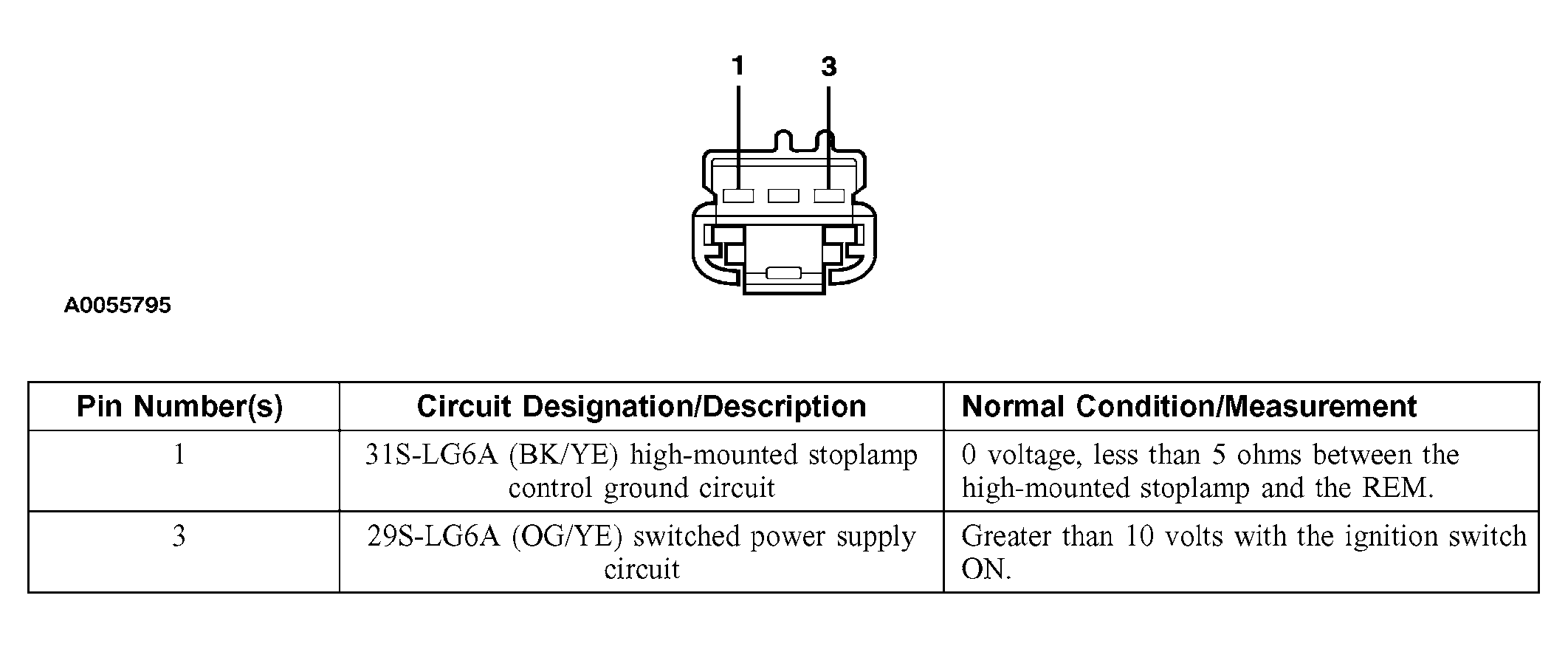

Fig 2: High-Mounted Stoplamp C302

Courtesy of FORD MOTOR CO.

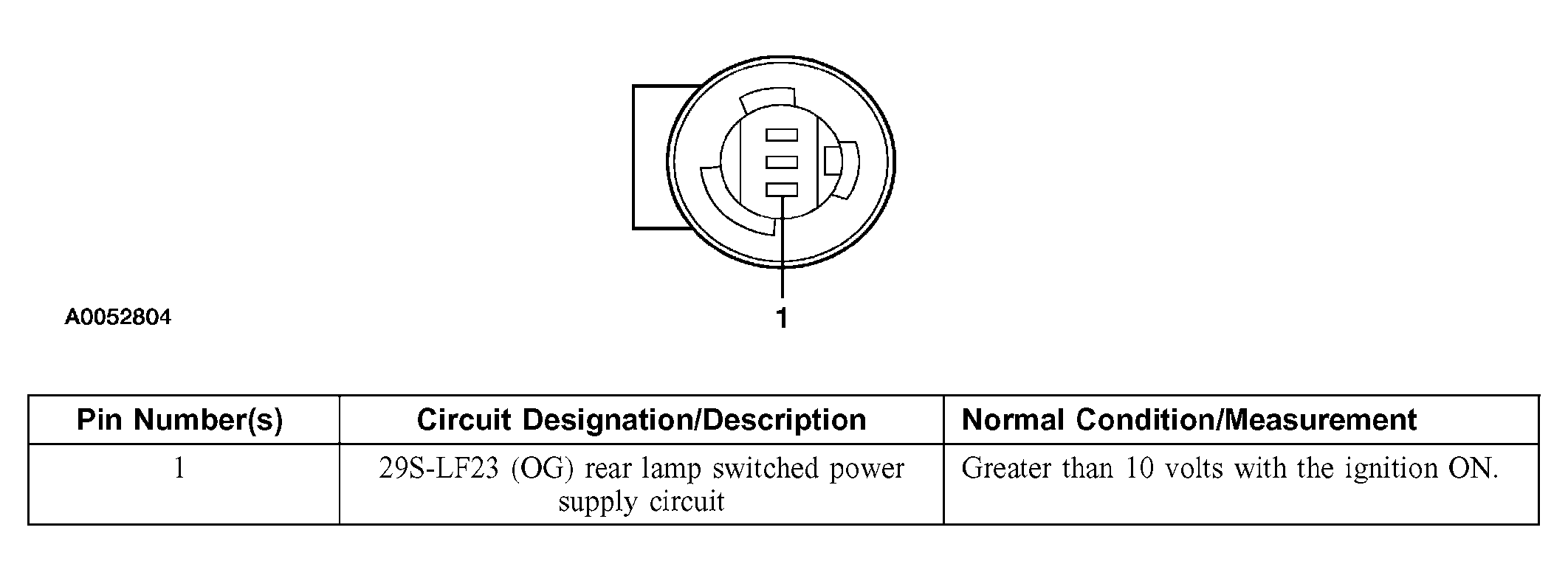

Fig 3: LH Combination Lamp C414, RH Combination Lamp C417

Courtesy of FORD MOTOR CO.

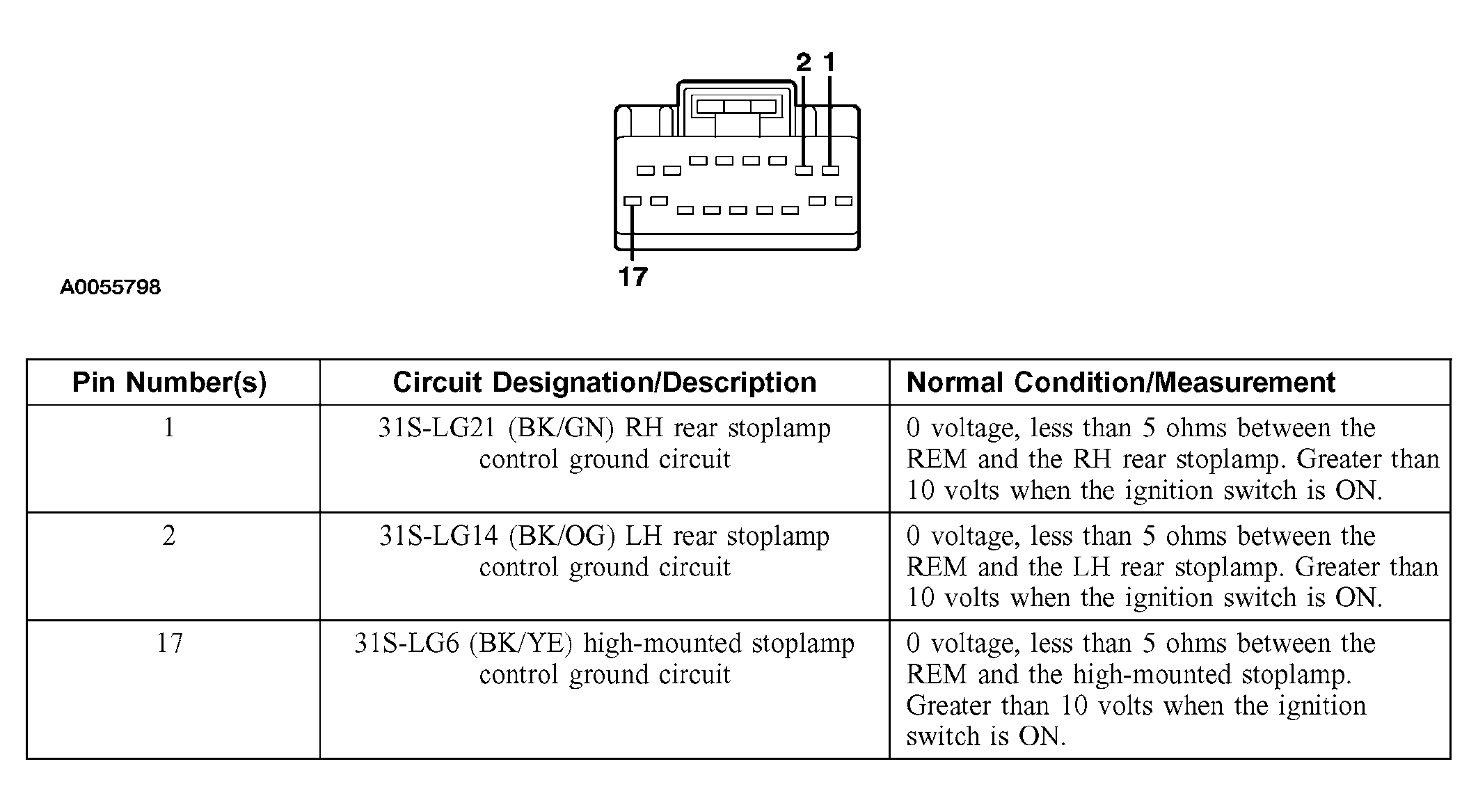

Fig 4: REM C420B

Courtesy of FORD MOTOR CO.

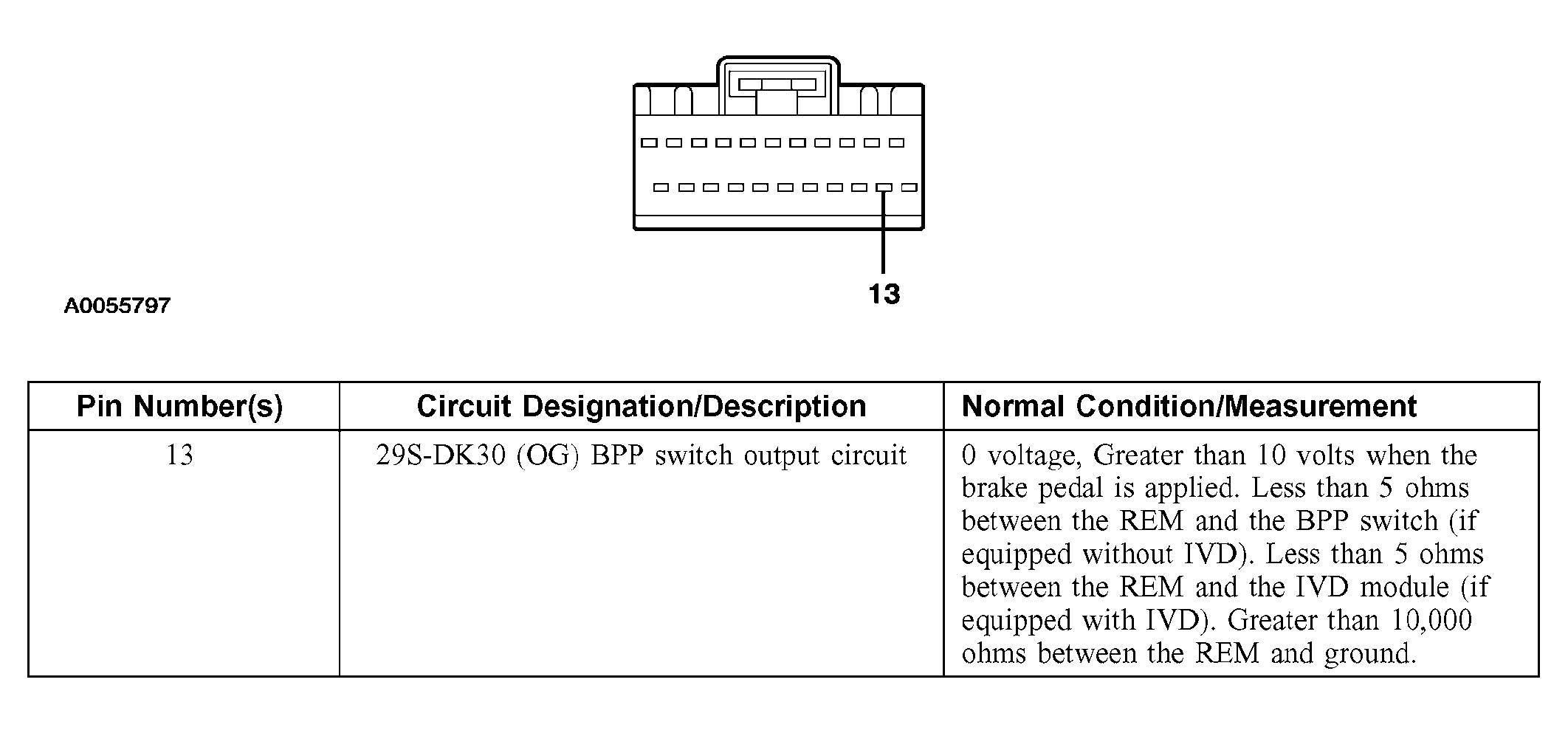

Fig 5: REM C420E

Courtesy of FORD MOTOR CO.

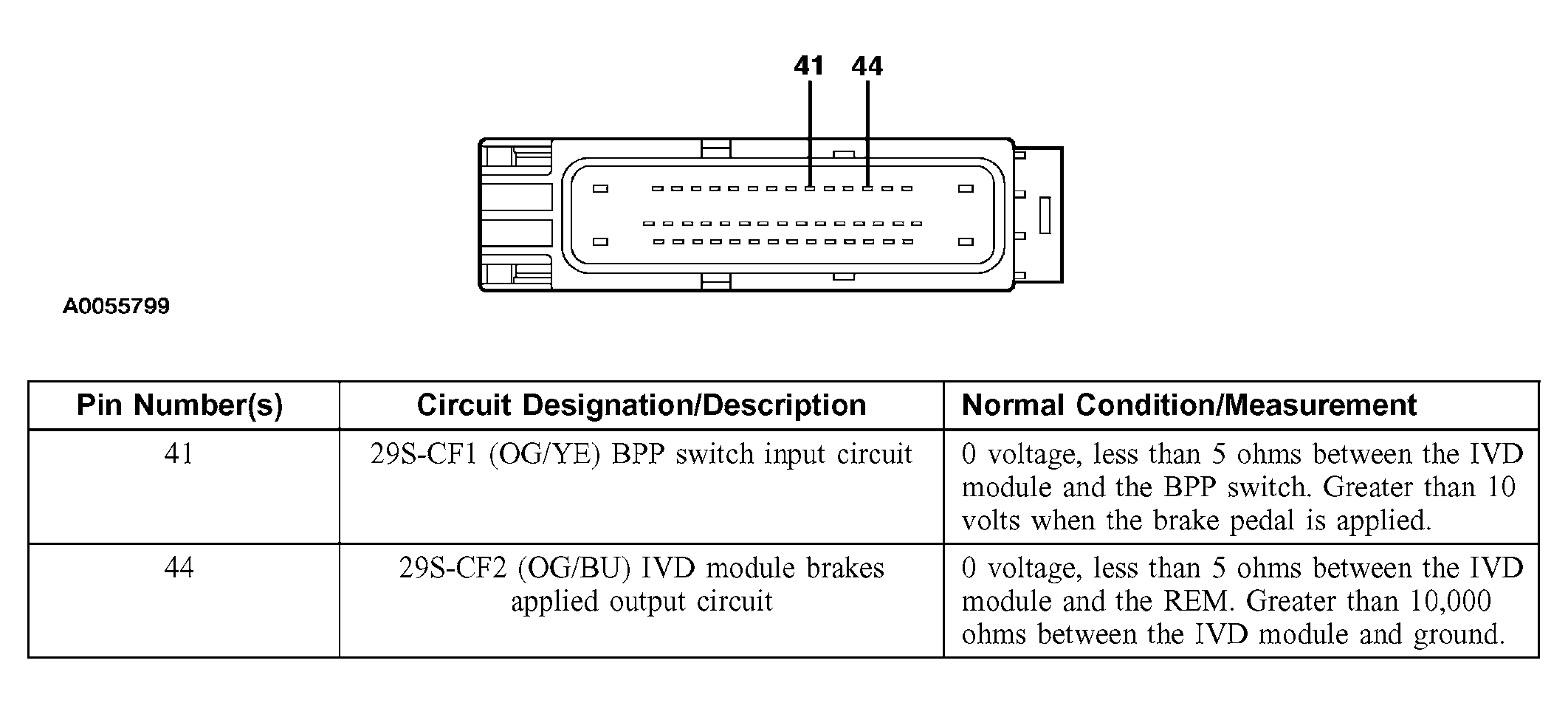

Fig 6: IVD Module C155

Courtesy of FORD MOTOR CO.
