Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

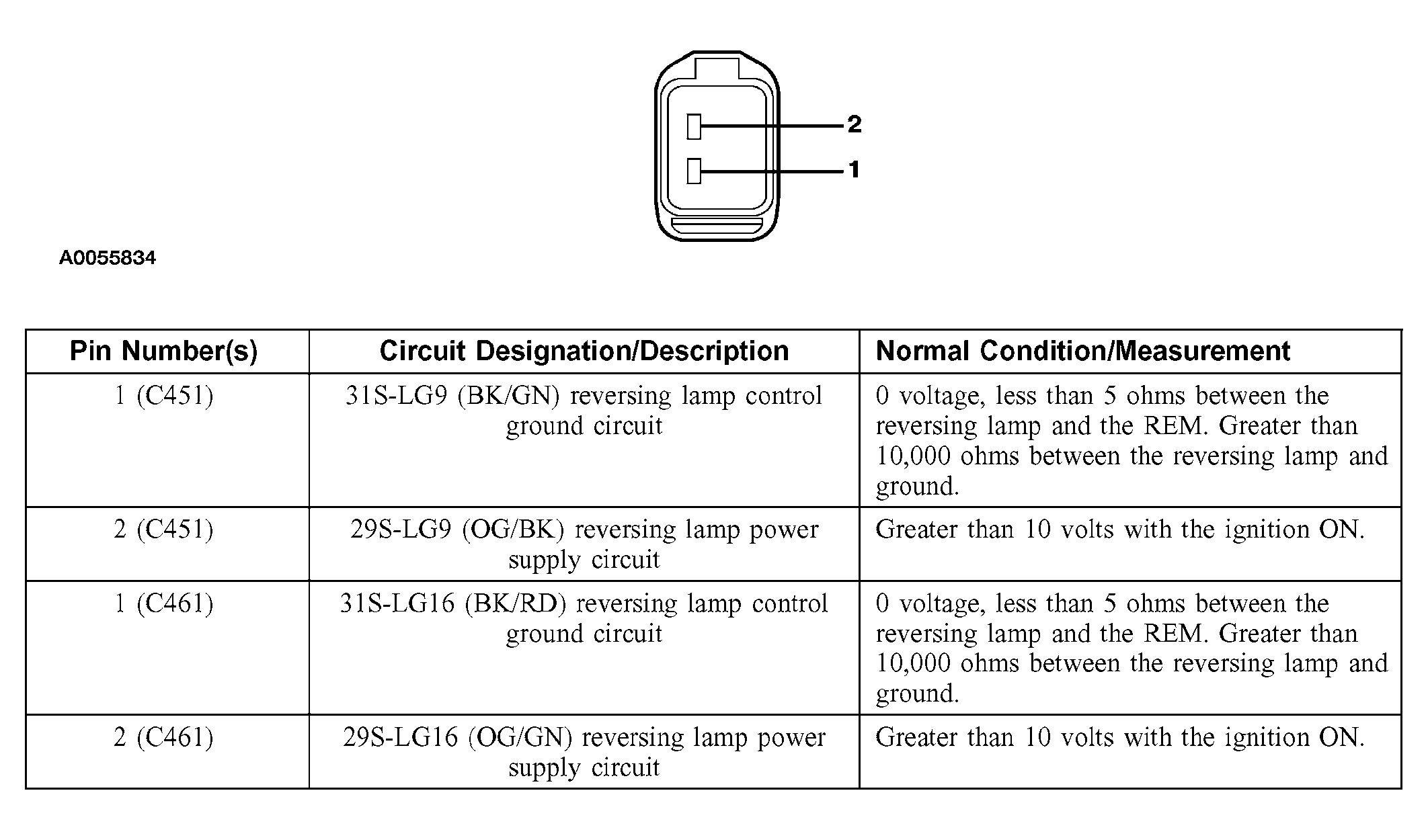

Fig 1: LH Reversing Lamp C451, RH Reversing Lamp C461
G03998666Courtesy of FORD MOTOR CO.

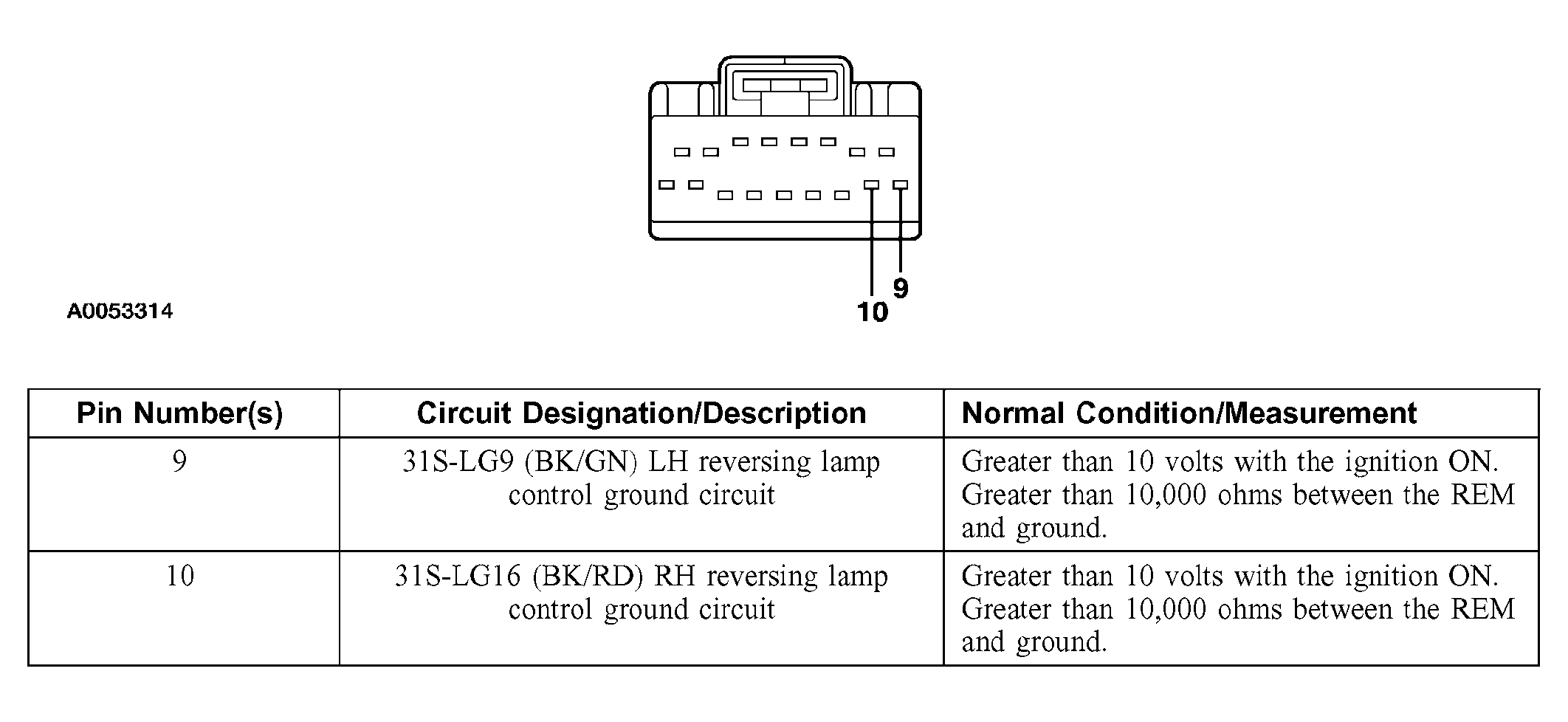

Fig 2: REM C420E
G03998667Courtesy of FORD MOTOR CO.
