Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Instrument Cluster C220c

Courtesy of FORD MOTOR CO.

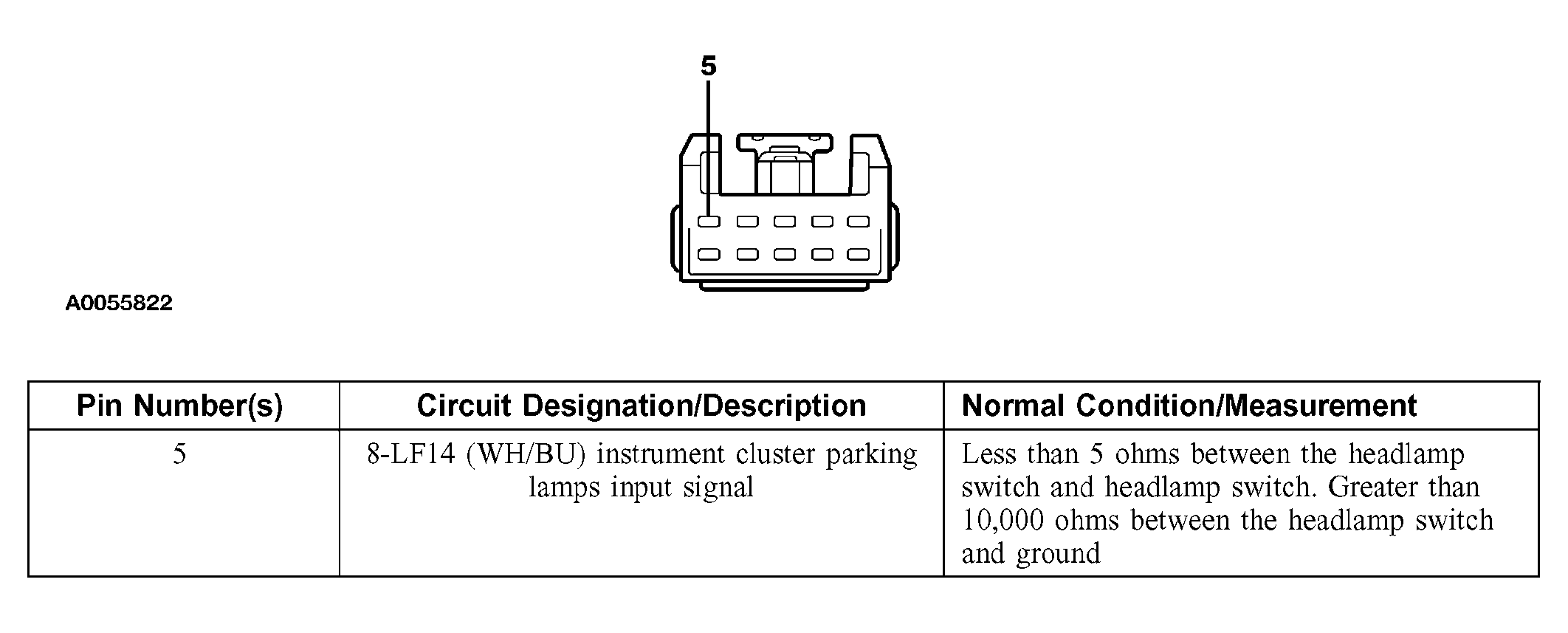

Fig 2: Headlamp Switch C205

Courtesy of FORD MOTOR CO.

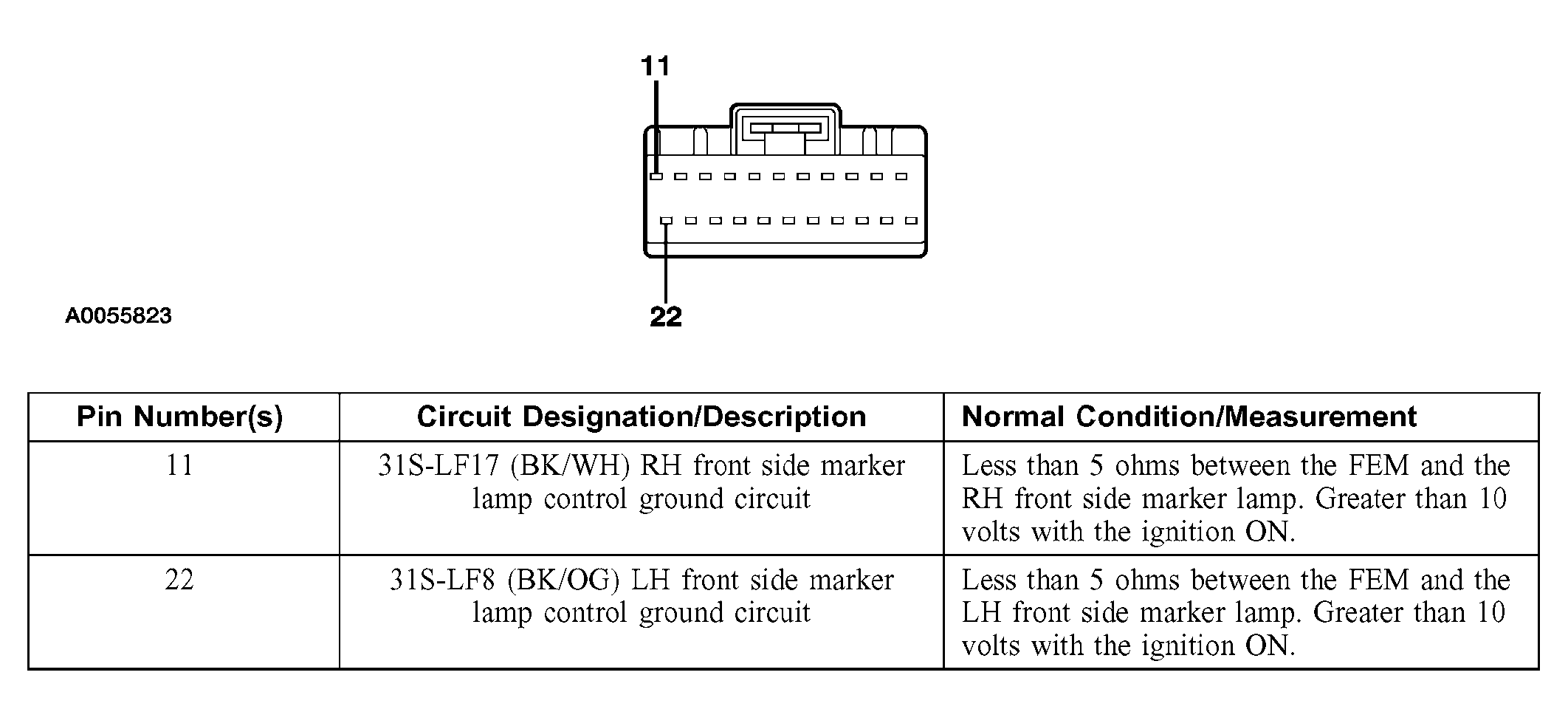

Fig 3: FEM C201B

Courtesy of FORD MOTOR CO.

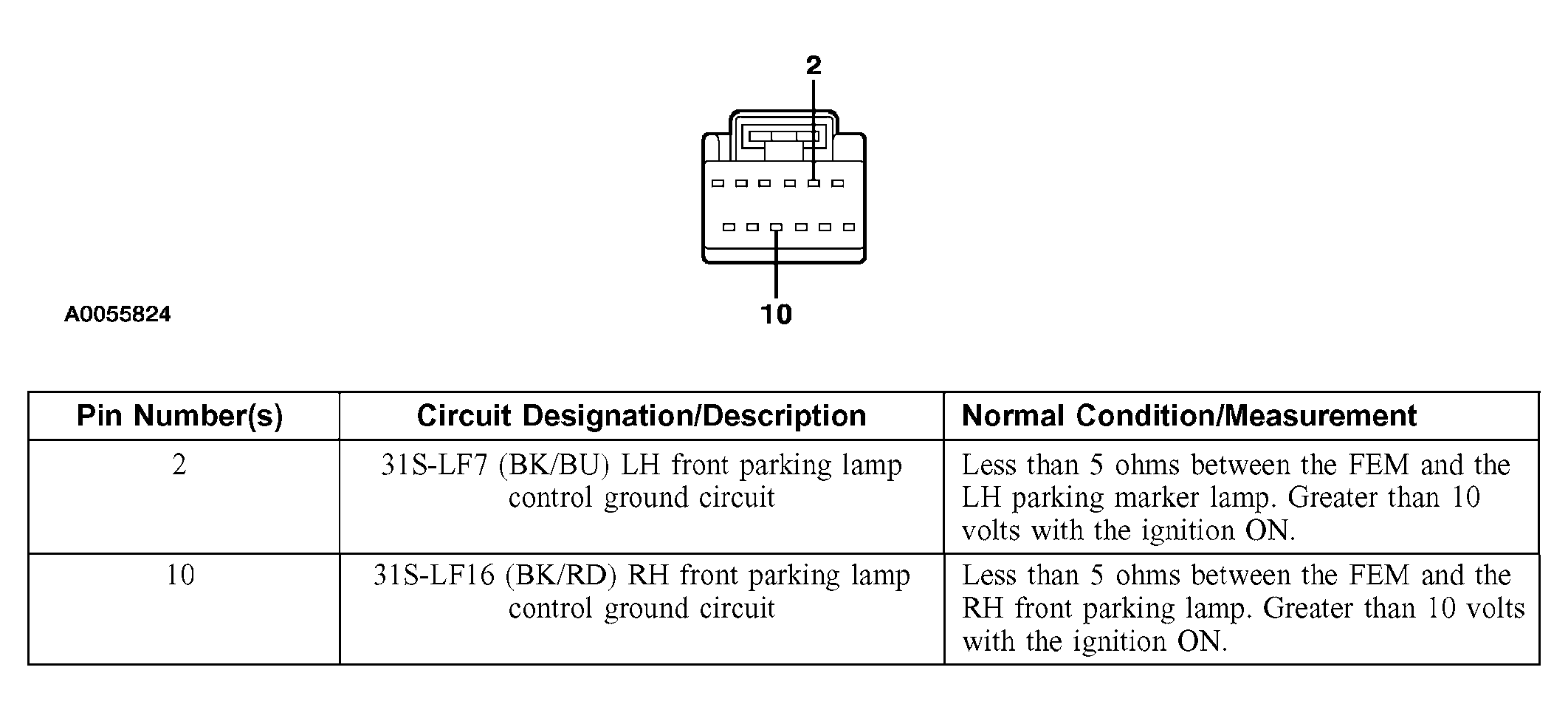

Fig 4: FEM C201c

Courtesy of FORD MOTOR CO.

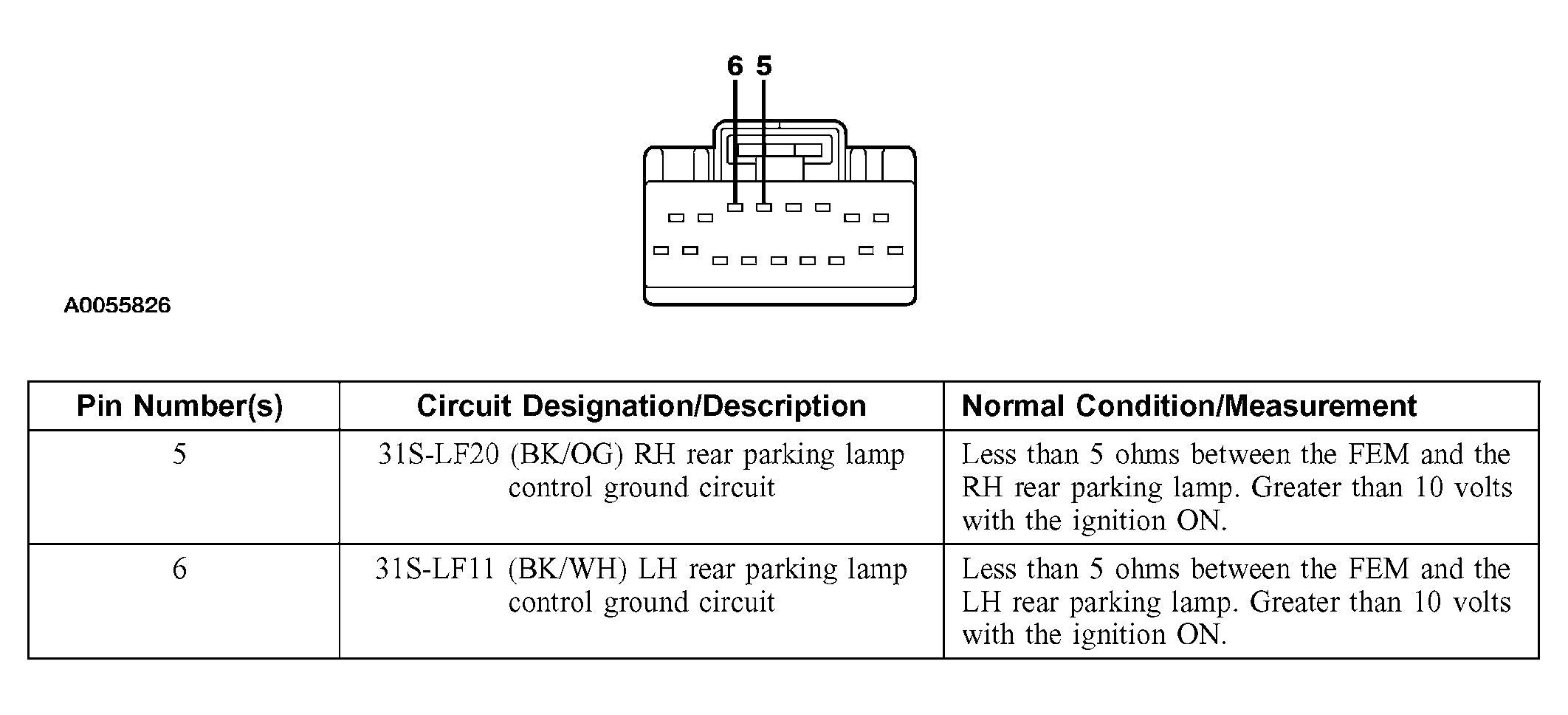

Fig 5: REM C420A

Courtesy of FORD MOTOR CO.

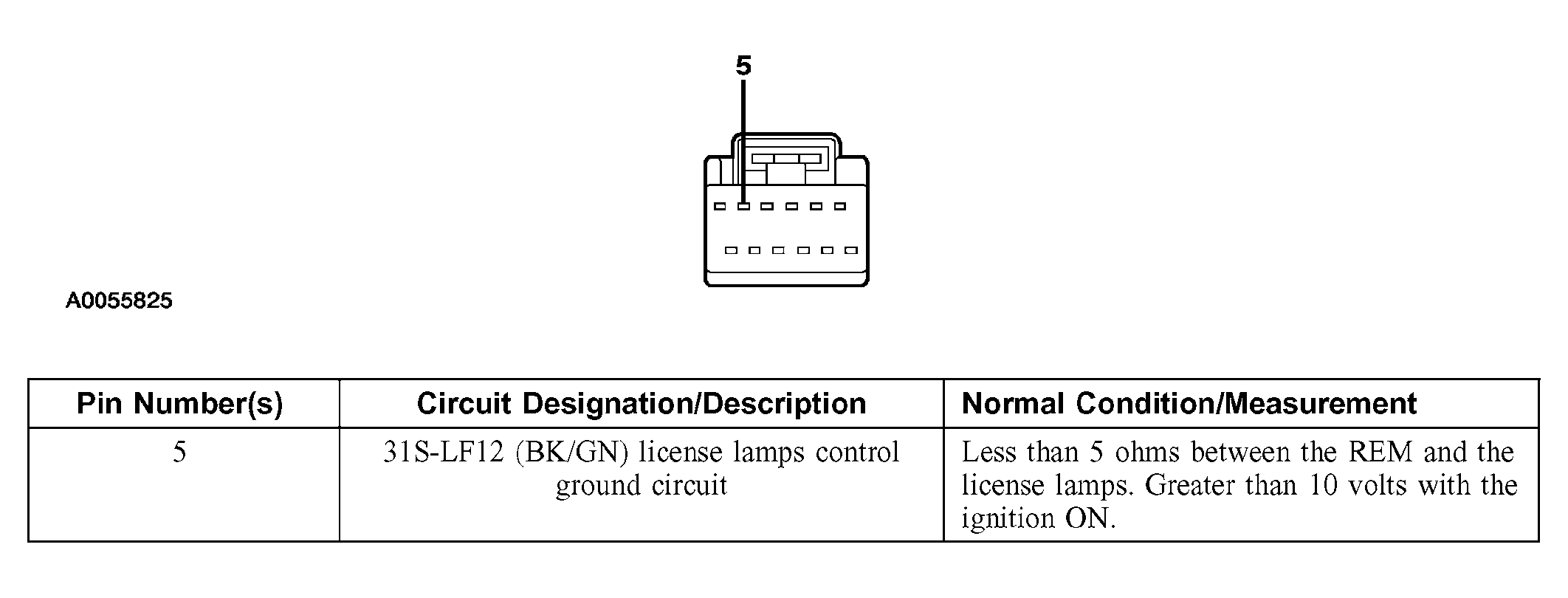

Fig 6: REM C420E

Courtesy of FORD MOTOR CO.

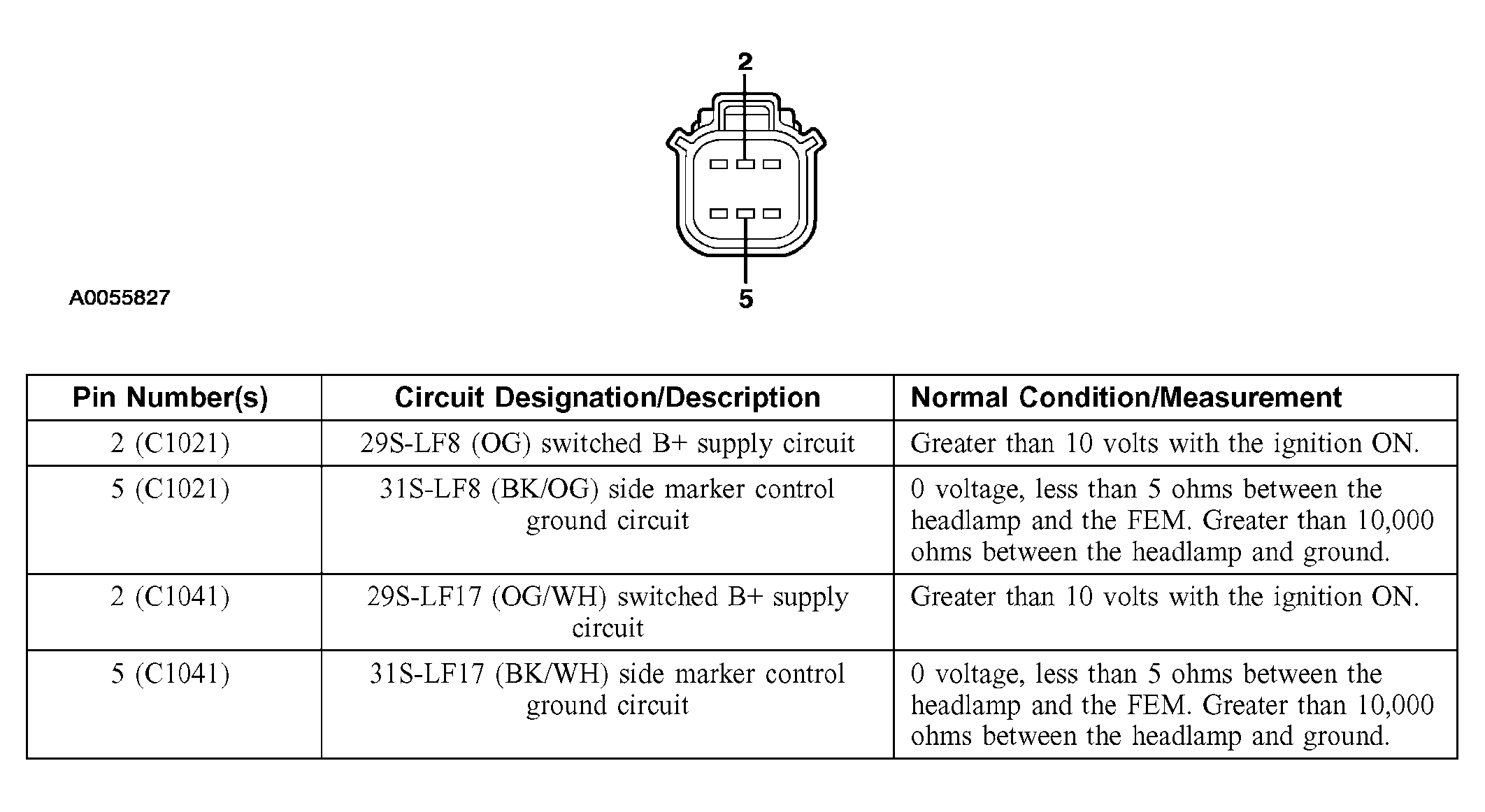

Fig 7: LH Headlamp C1021, RH Headlamp C1041

Courtesy of FORD MOTOR CO.

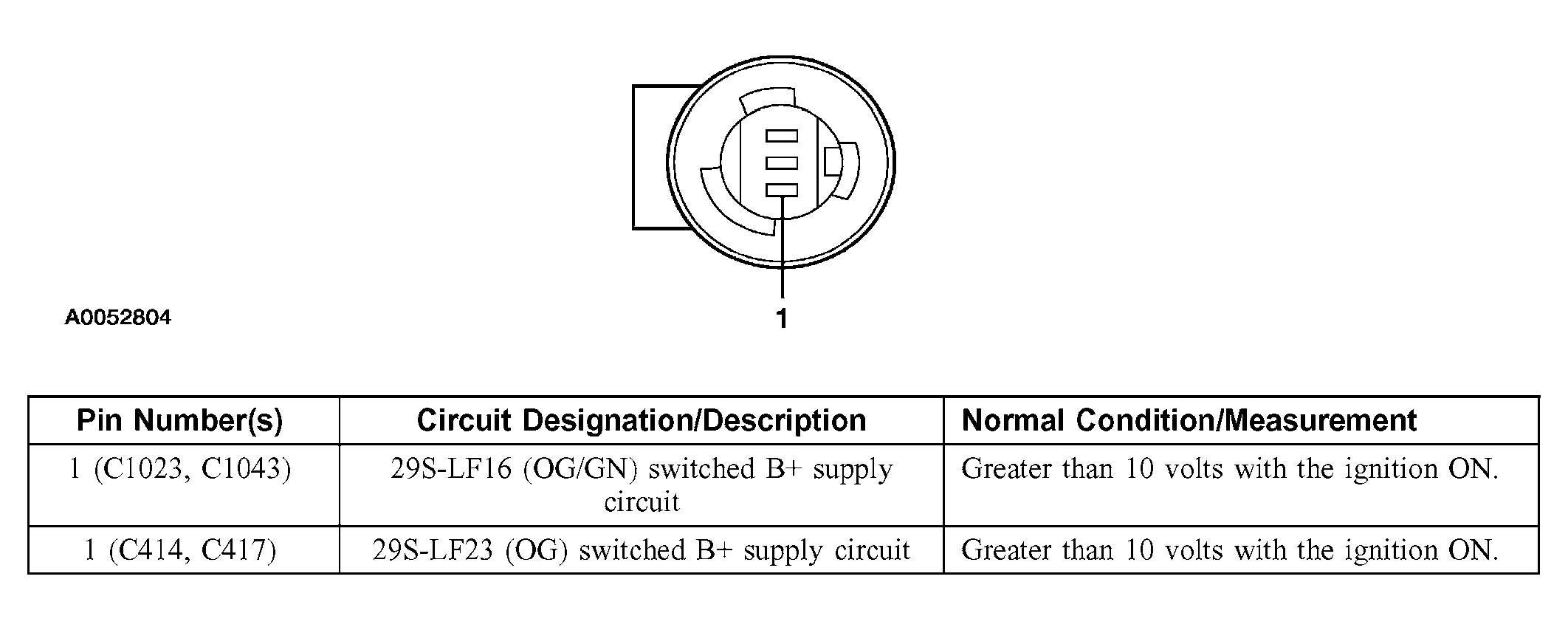

Fig 8: LH Front Parking/Turn Lamp C1023, RH Front Parking/Turn Lamp C1043, LH Rear Parking Lamp C414, RH Rear Parking Lamp C417

Courtesy of FORD MOTOR CO.

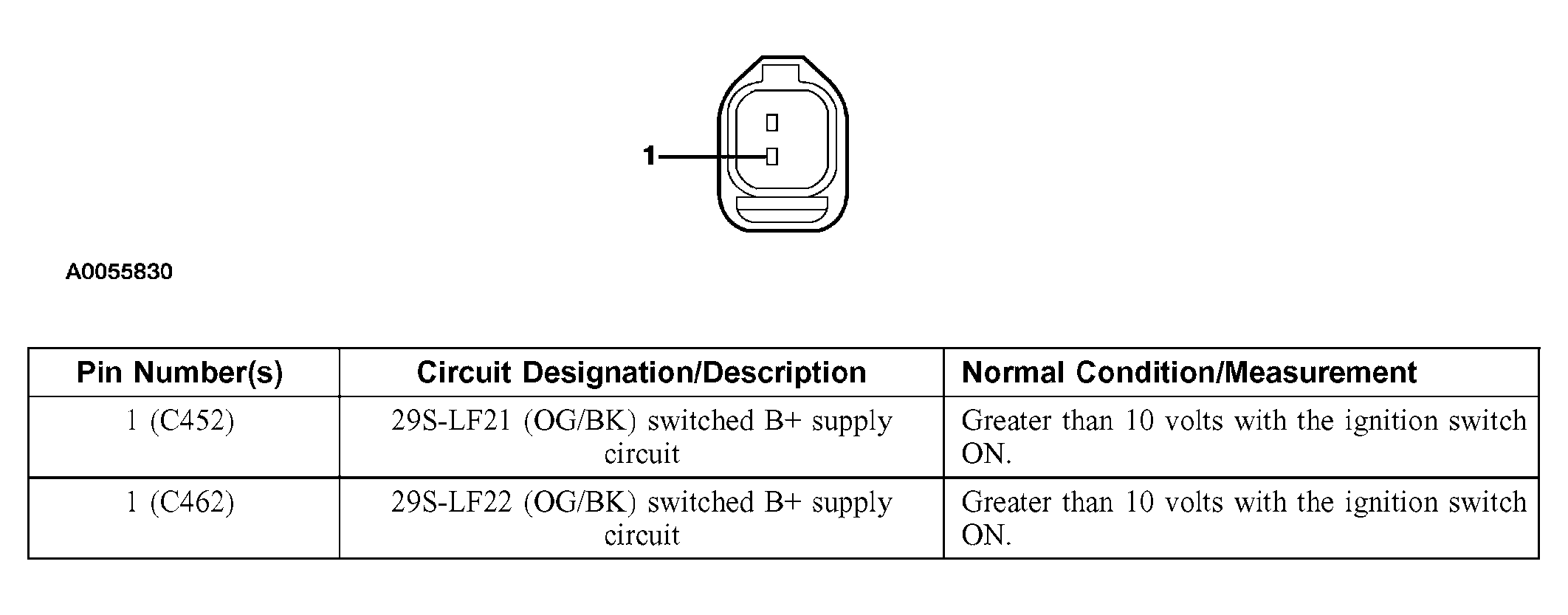

Fig 9: LH License Lamp C452, RH License Lamp C462

Courtesy of FORD MOTOR CO.
