Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

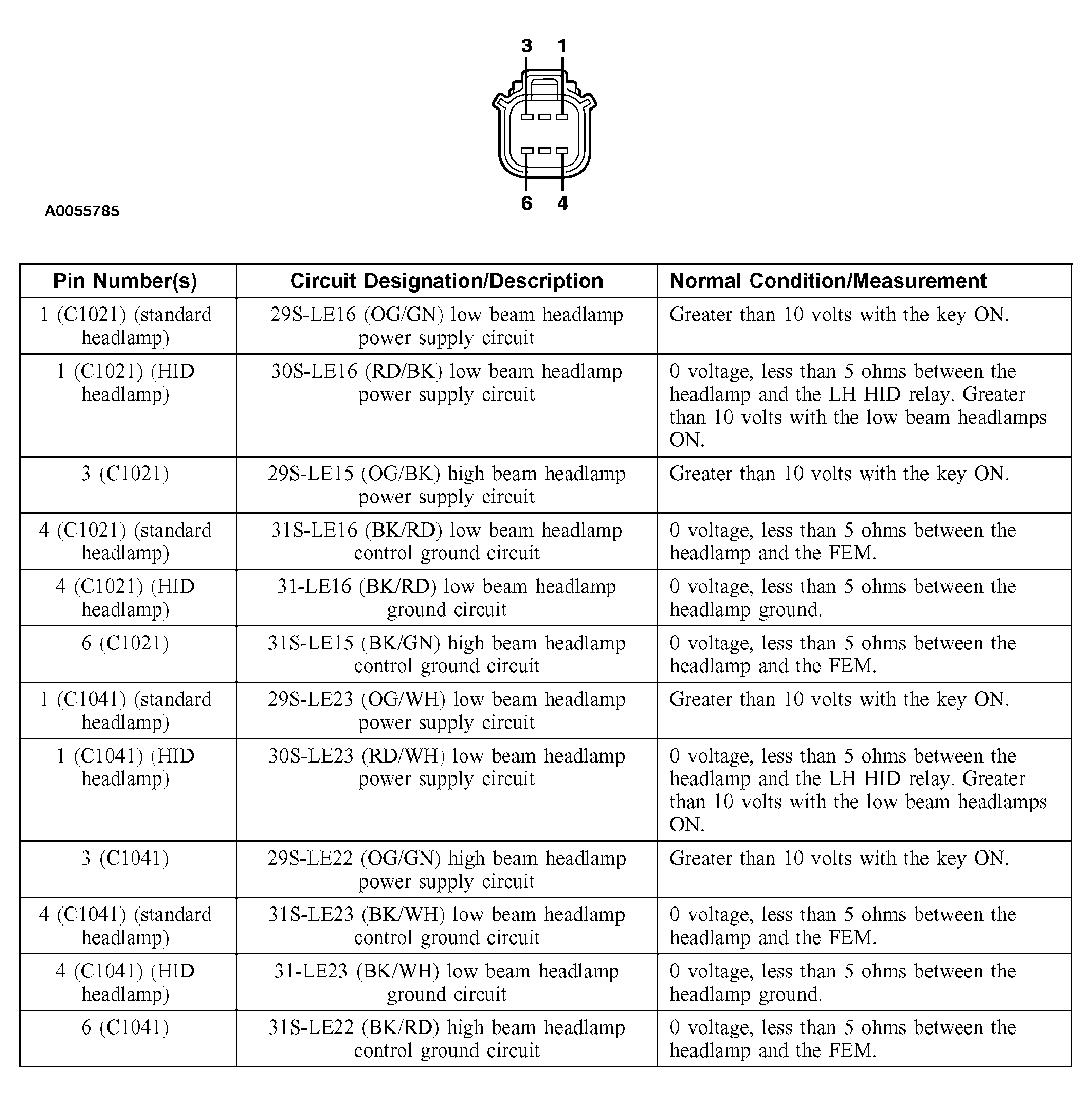

Fig 1: Connector Circuit Reference - LH Headlamp C1021, RH Headlamp C1041

Courtesy of FORD MOTOR CO.

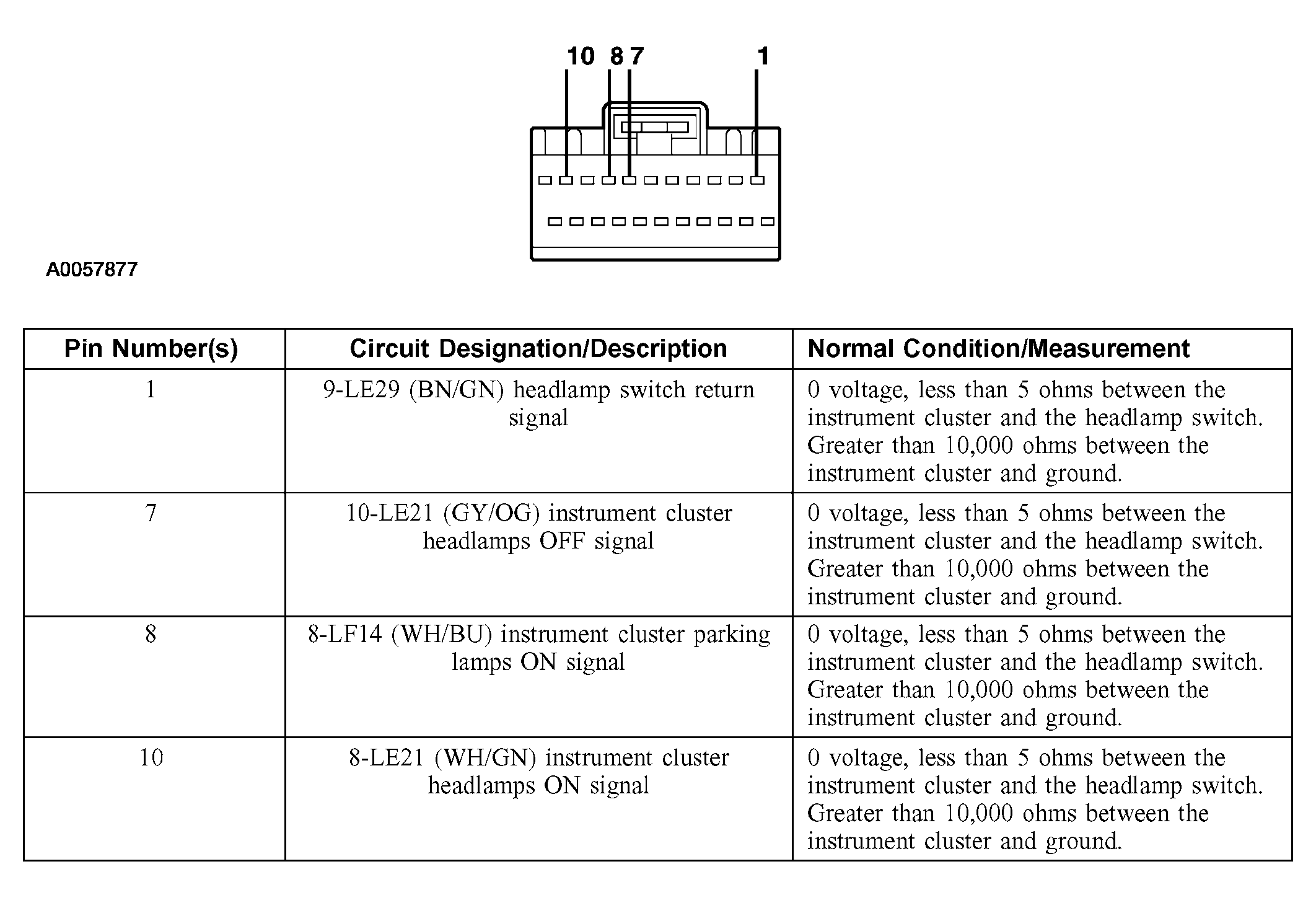

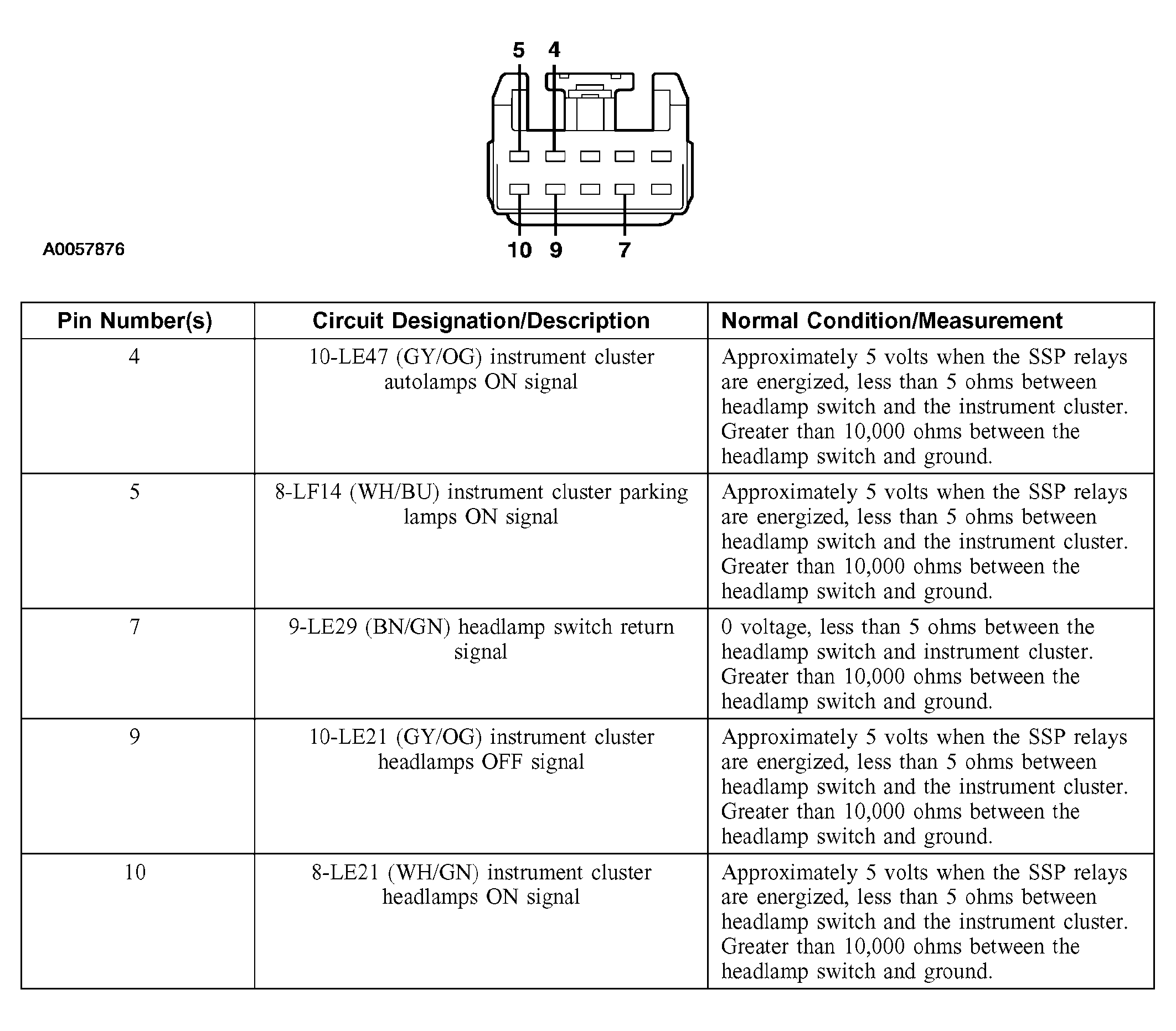

Fig 2: Connector Circuit Reference - Headlamp Switch C205

Courtesy of FORD MOTOR CO.

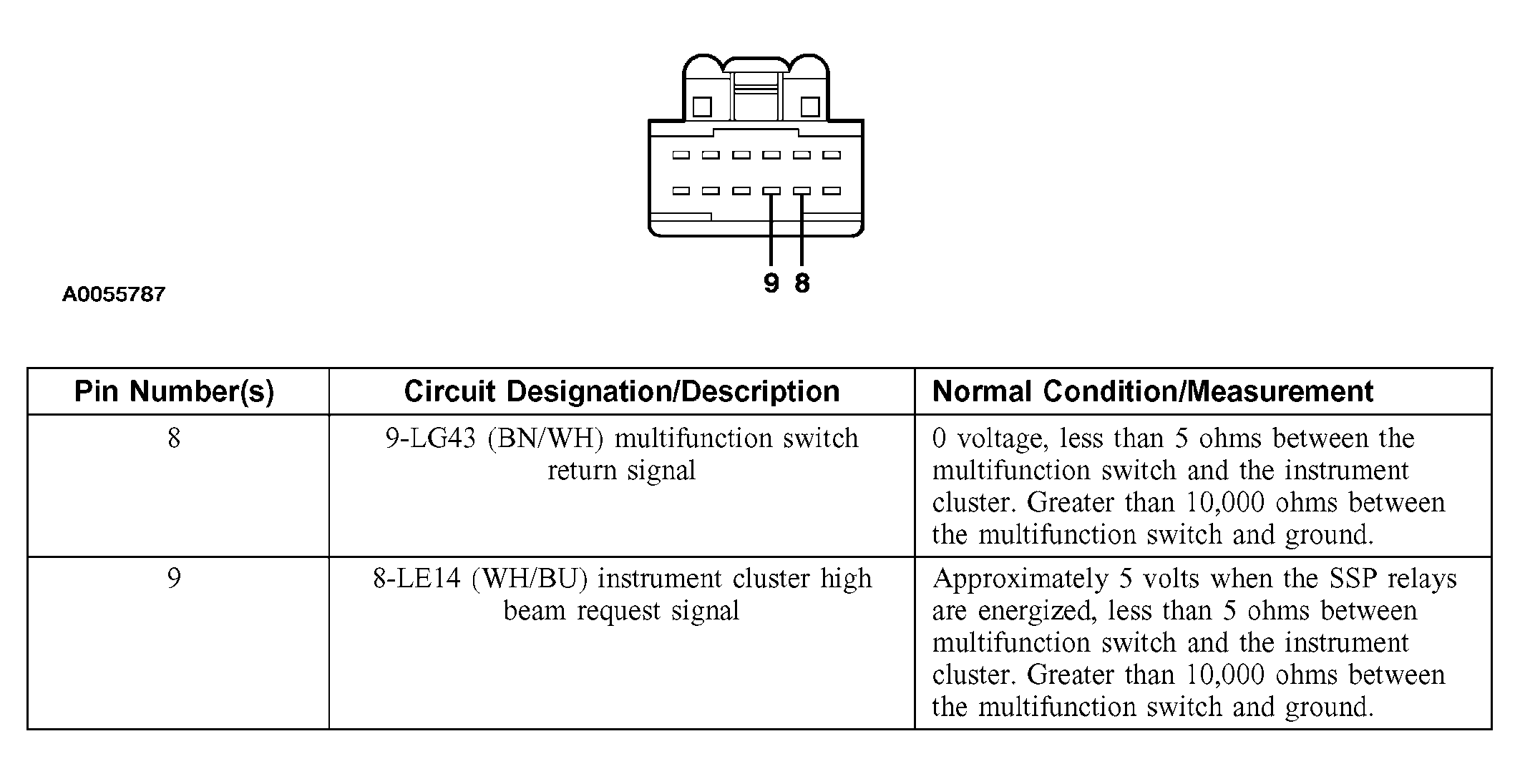

Fig 3: Connector Circuit Reference - Multifunction Switch C202

Courtesy of FORD MOTOR CO.

Fig 4: Connector Circuit Reference - Instrument Cluster C220B

Courtesy of FORD MOTOR CO.

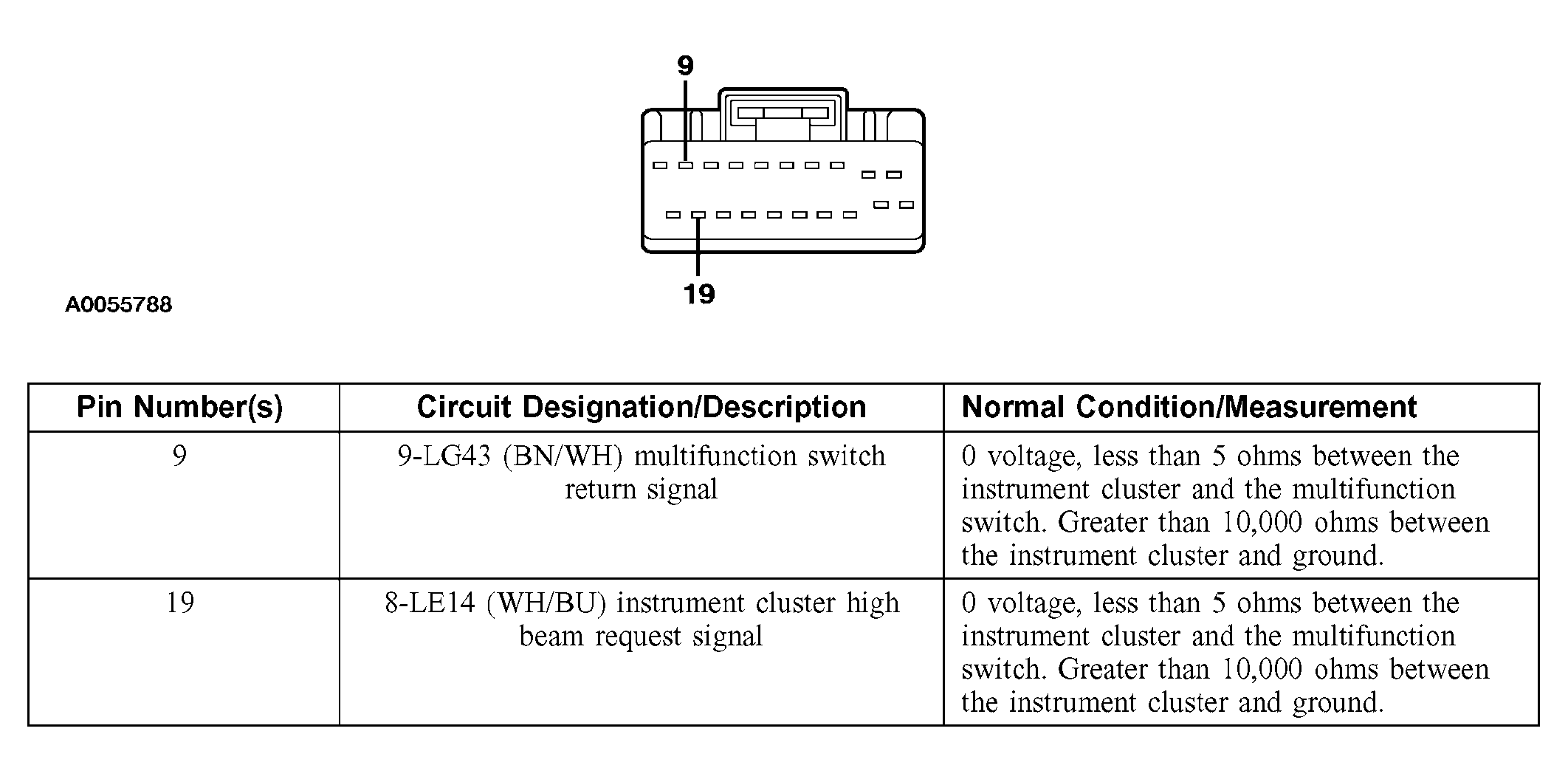

Fig 5: Connector Circuit Reference - Instrument Cluster C220C

Courtesy of FORD MOTOR CO.

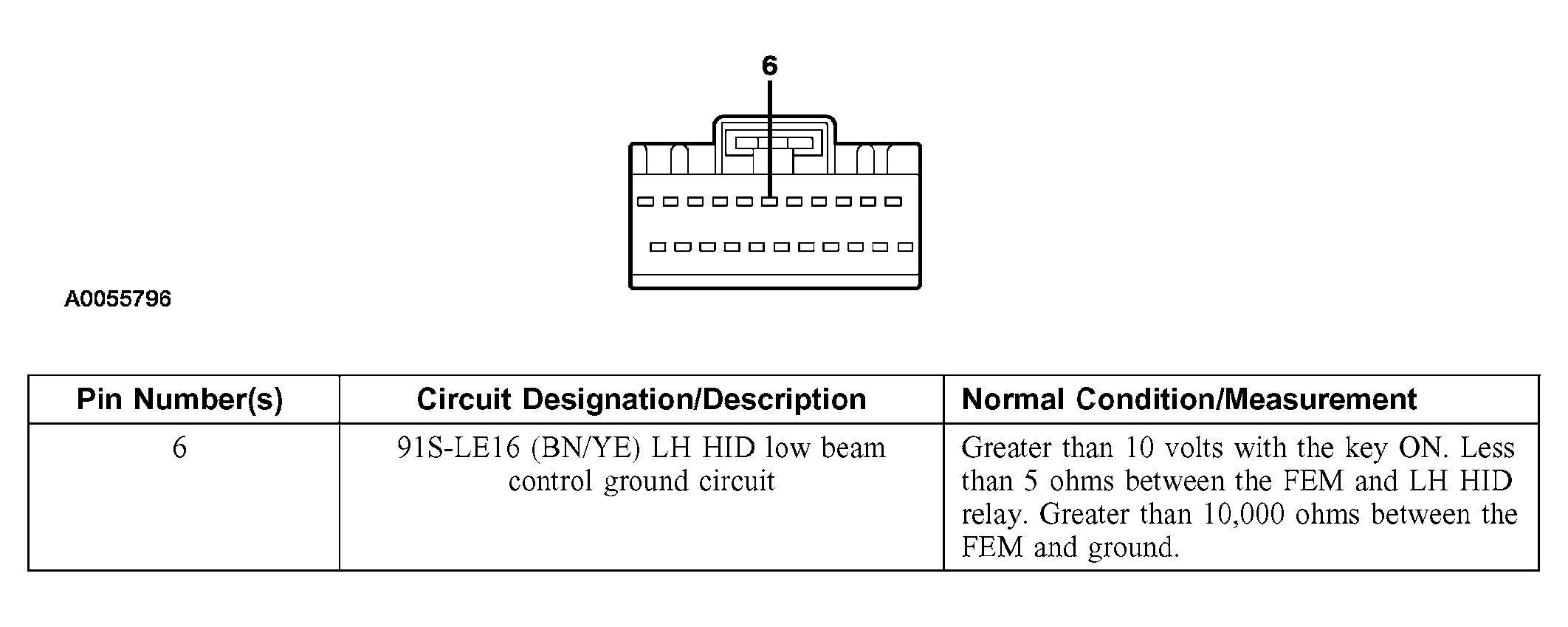

Fig 6: Connector Circuit Reference - FEM C201A

Courtesy of FORD MOTOR CO.

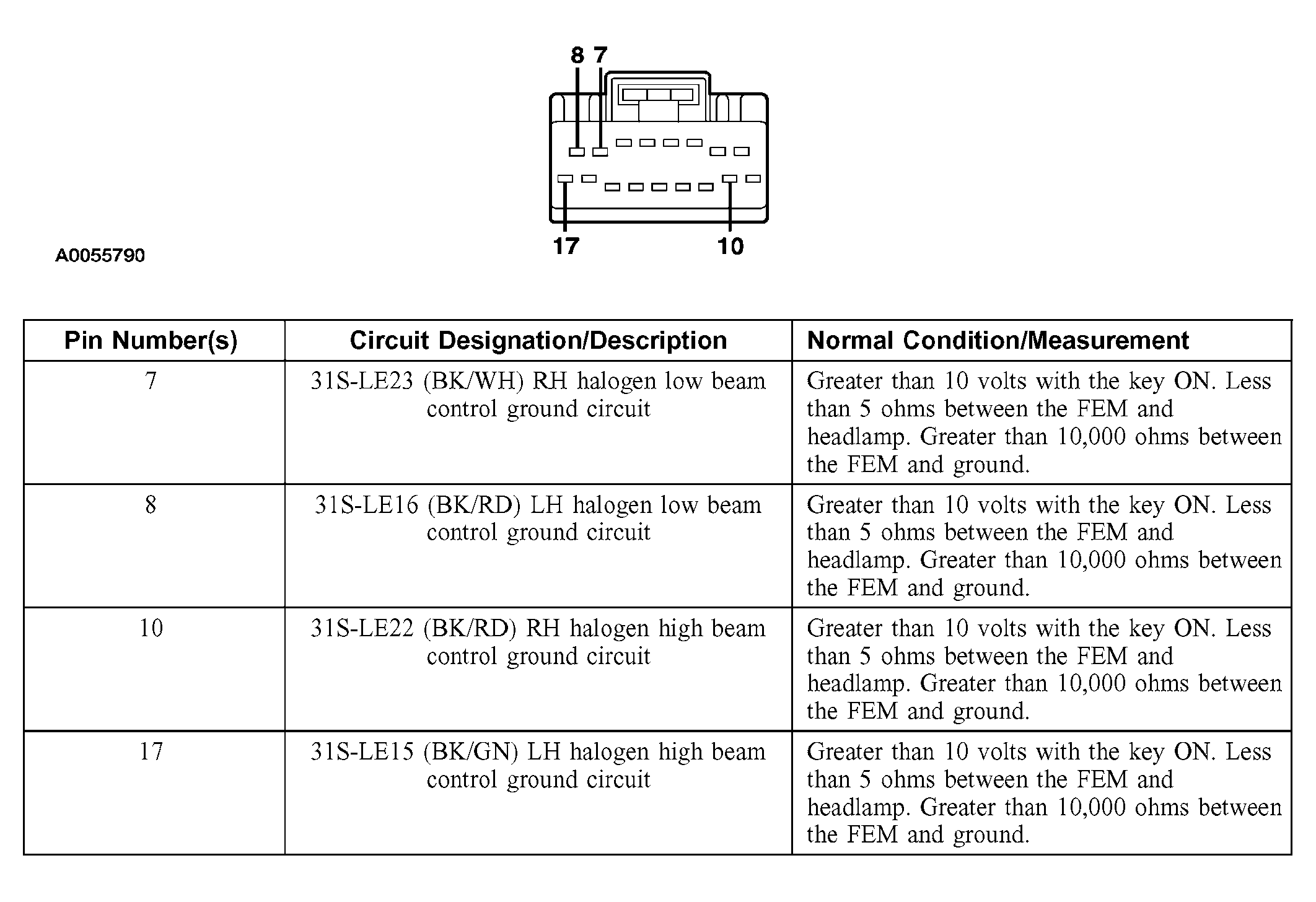

Fig 7: Connector Circuit Reference - FEM C201B

Courtesy of FORD MOTOR CO.

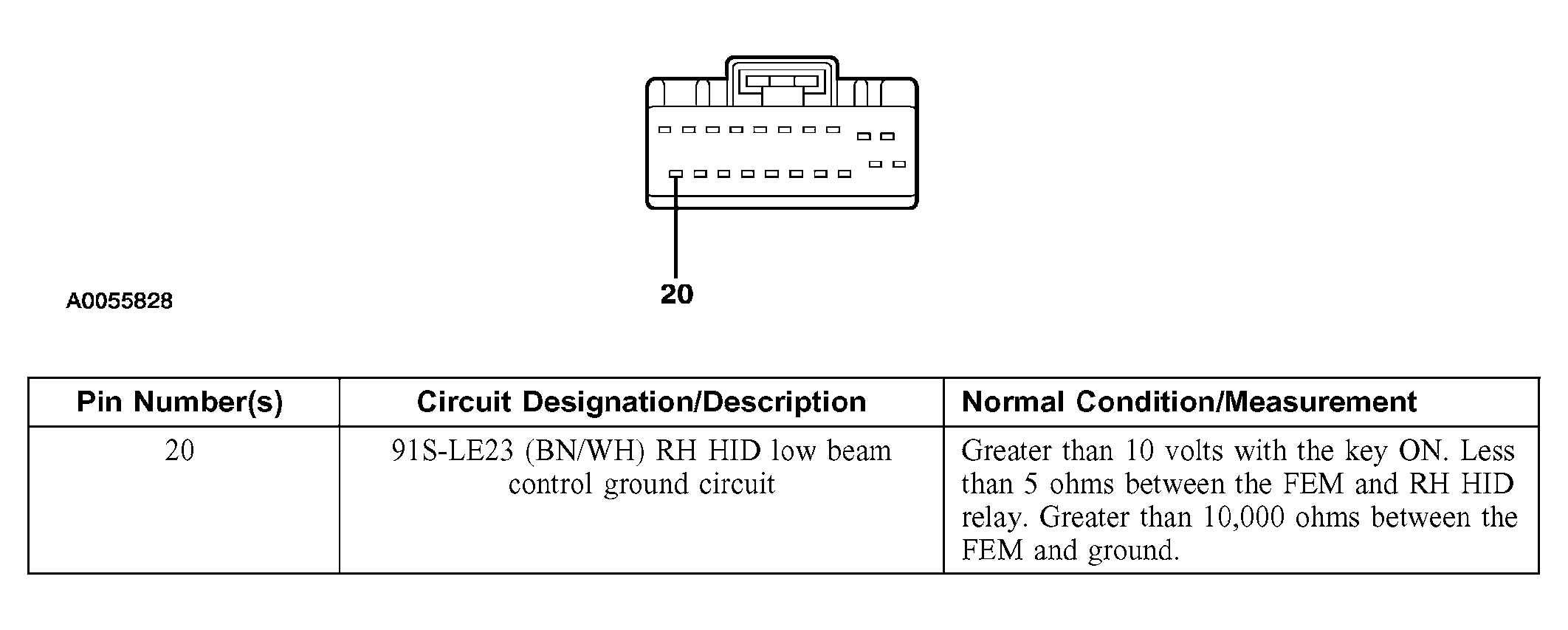

Fig 8: Connector Circuit Reference - FEM C201F

Courtesy of FORD MOTOR CO.

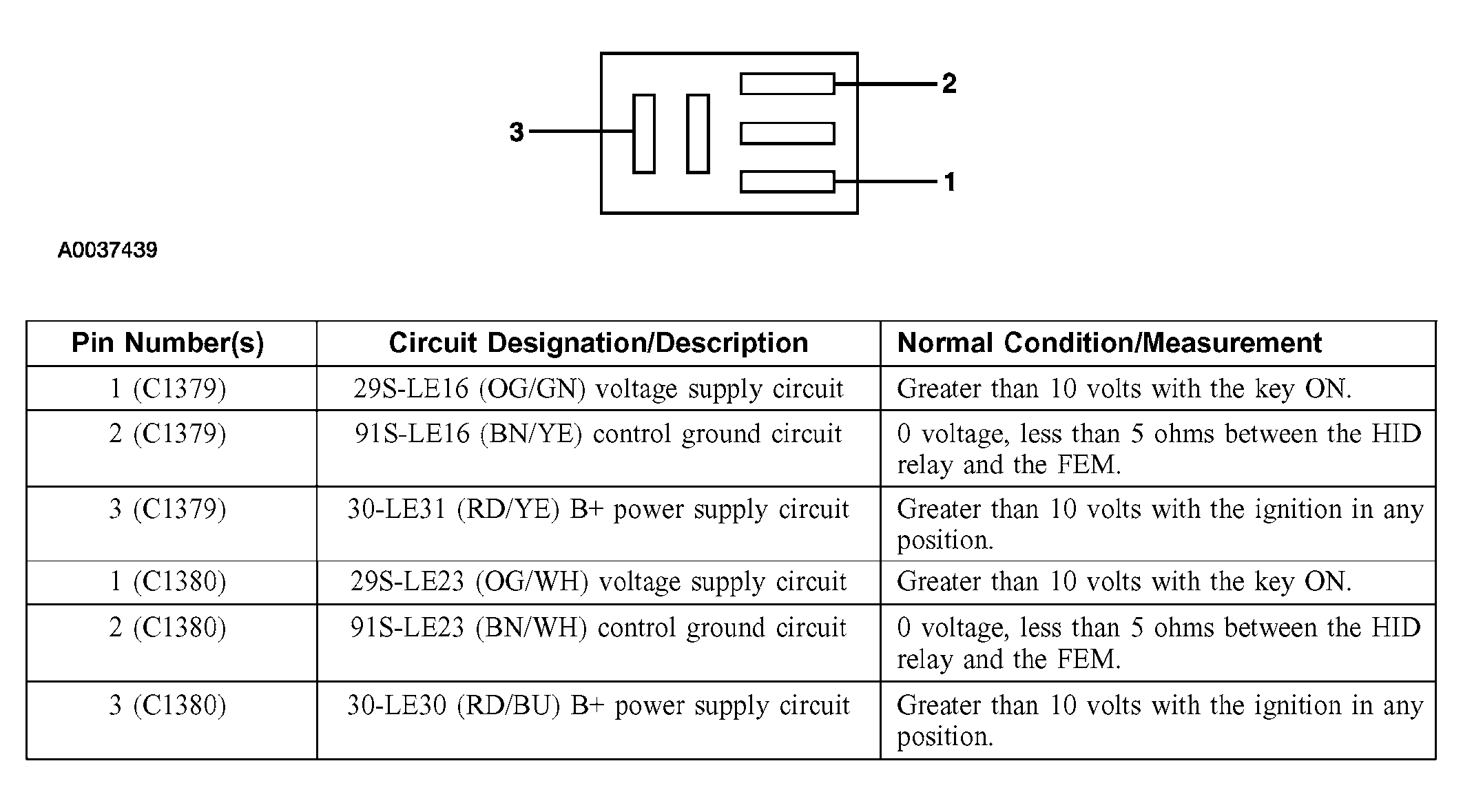

Fig 9: Connector Circuit Reference - LH Hid Relay C1379, RH Hid Relay C1380

Courtesy of FORD MOTOR CO.

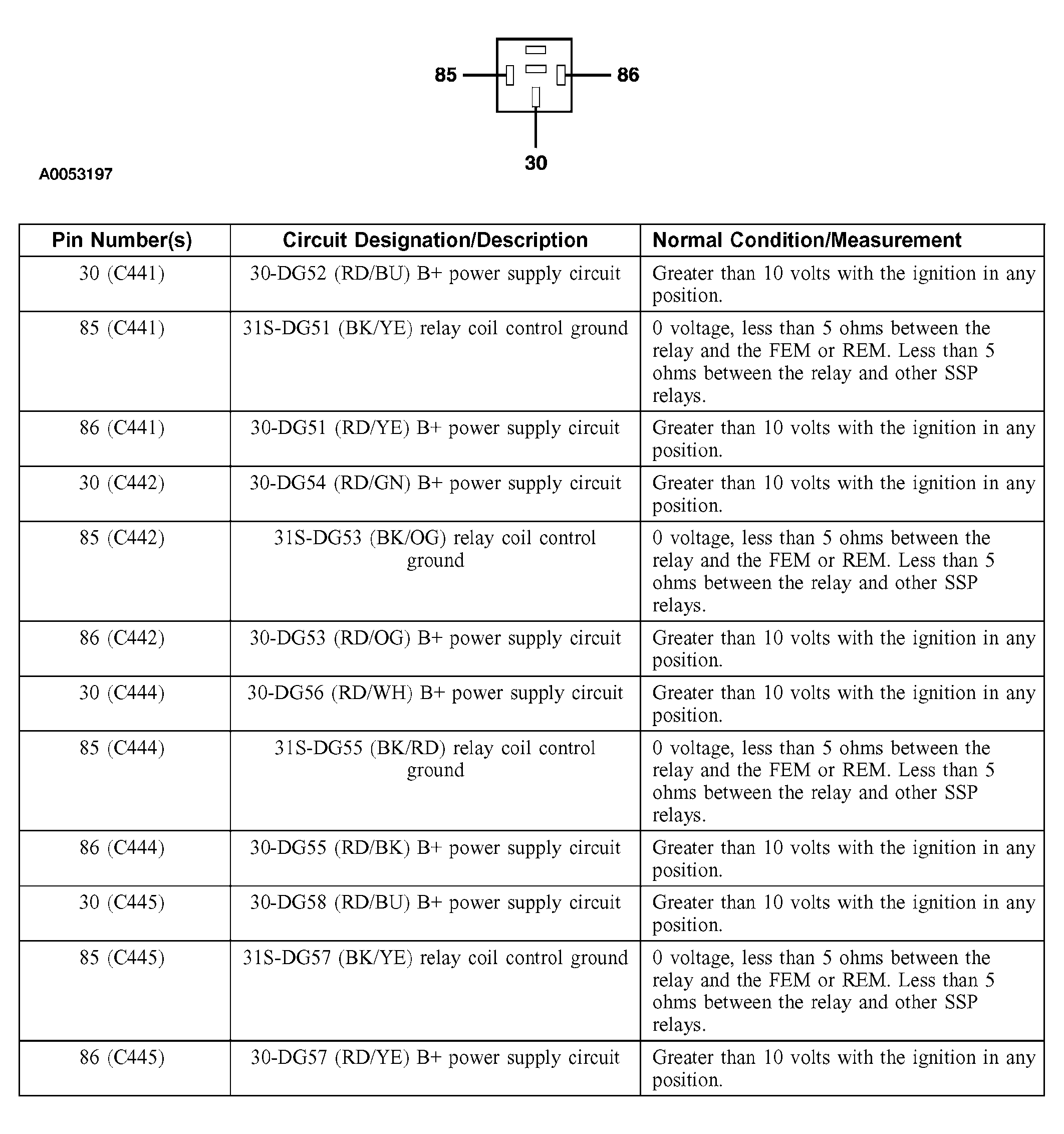

Fig 10: Connector Circuit Reference - SSP1 Relay, SSP2 Relay, SSP3 Relay, SSP4 Relay

Courtesy of FORD MOTOR CO.
