Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

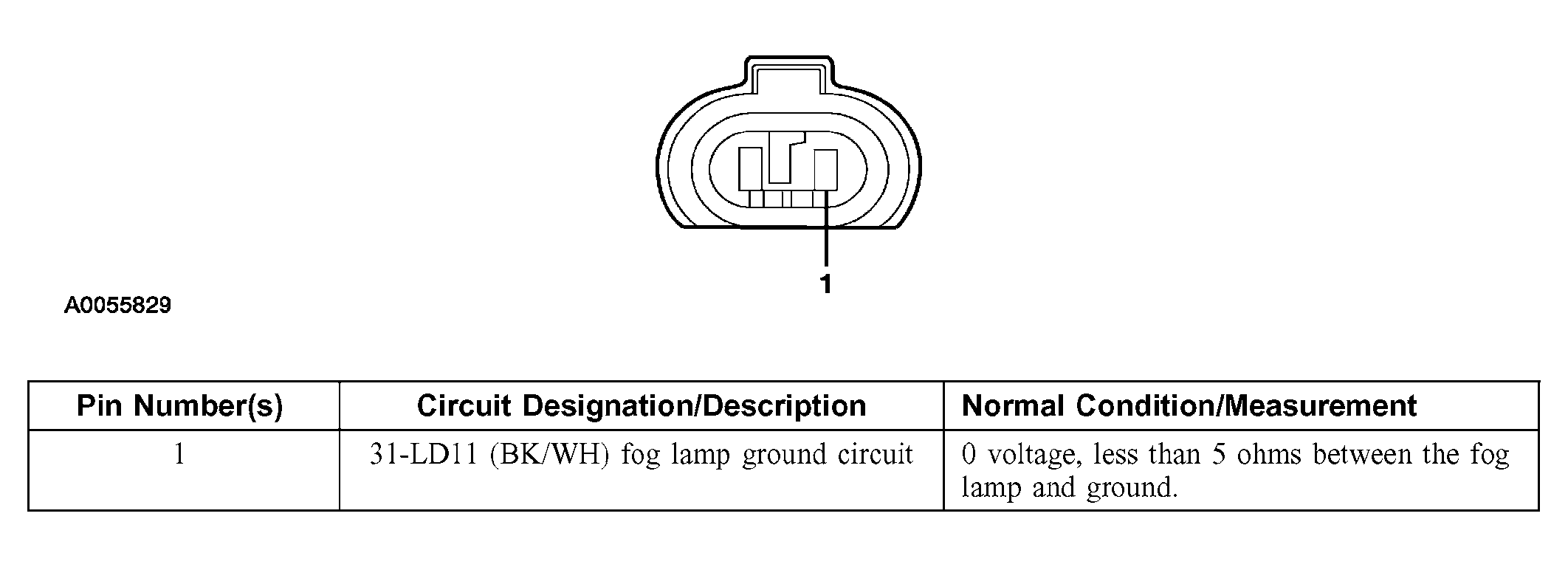

Fig 1: LH Fog Lamp C152

Courtesy of FORD MOTOR CO.

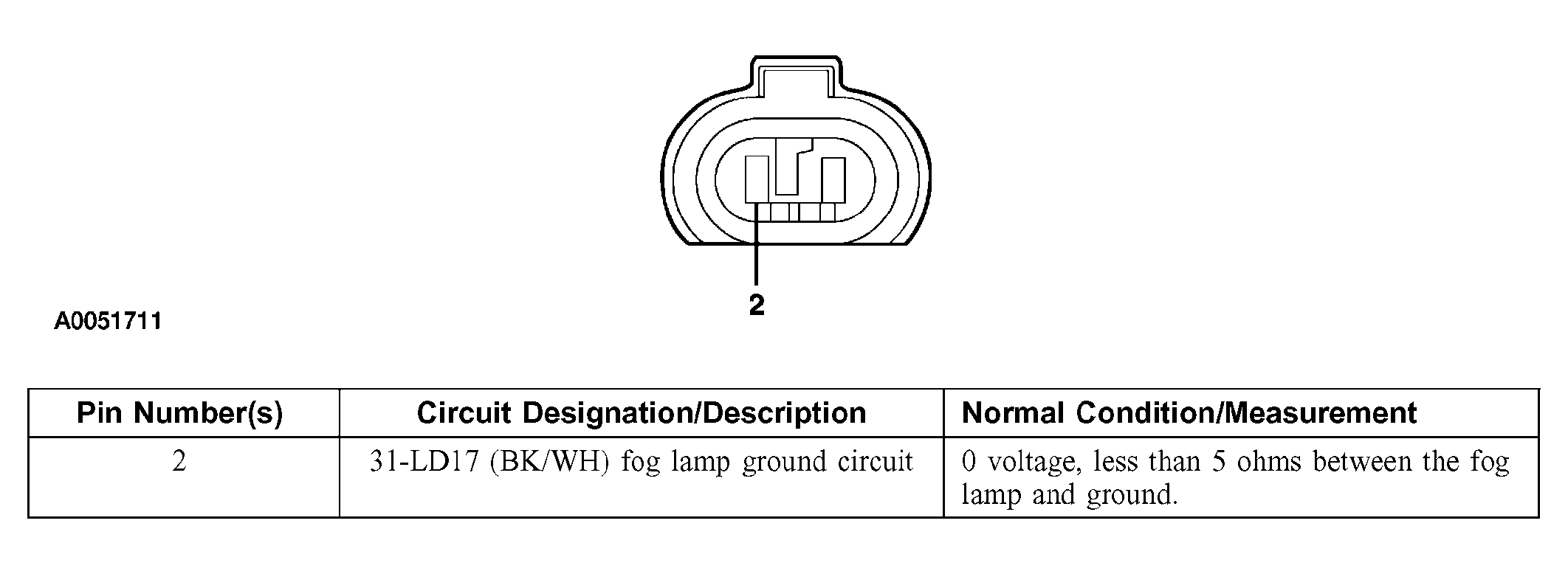

Fig 2: RH Fog Lamp C162

Courtesy of FORD MOTOR CO.

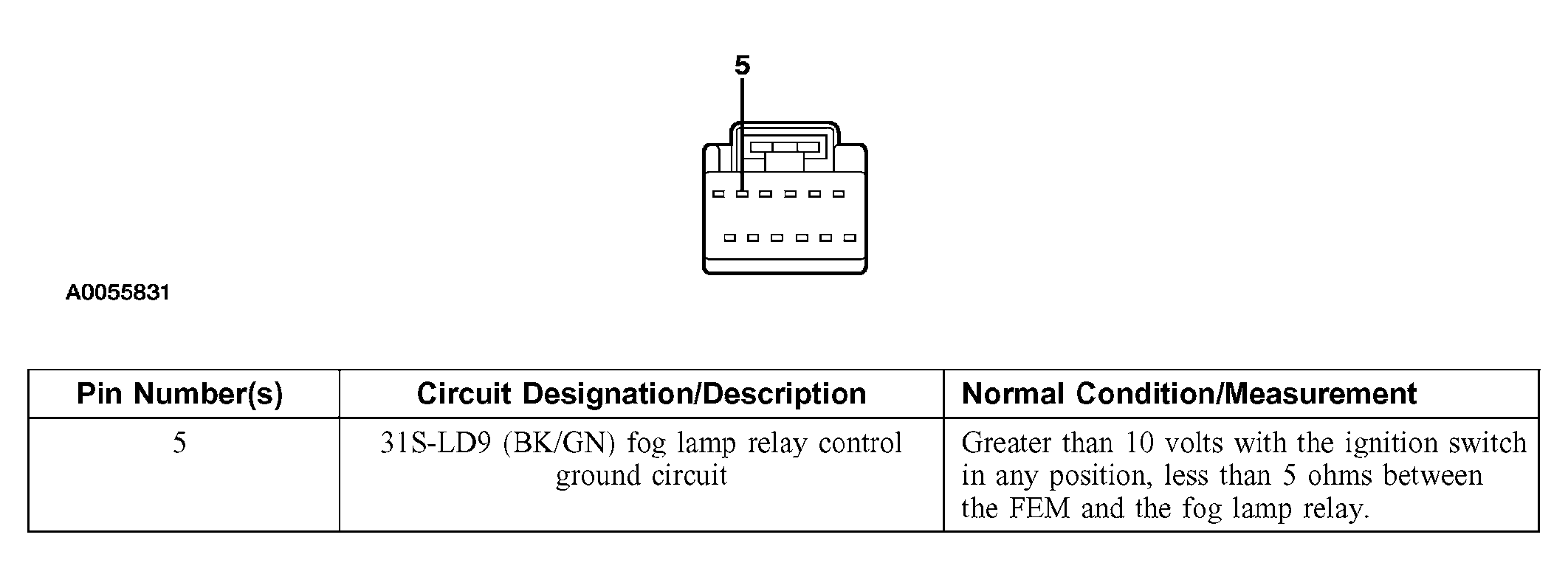

Fig 3: FEM C201C

Courtesy of FORD MOTOR CO.

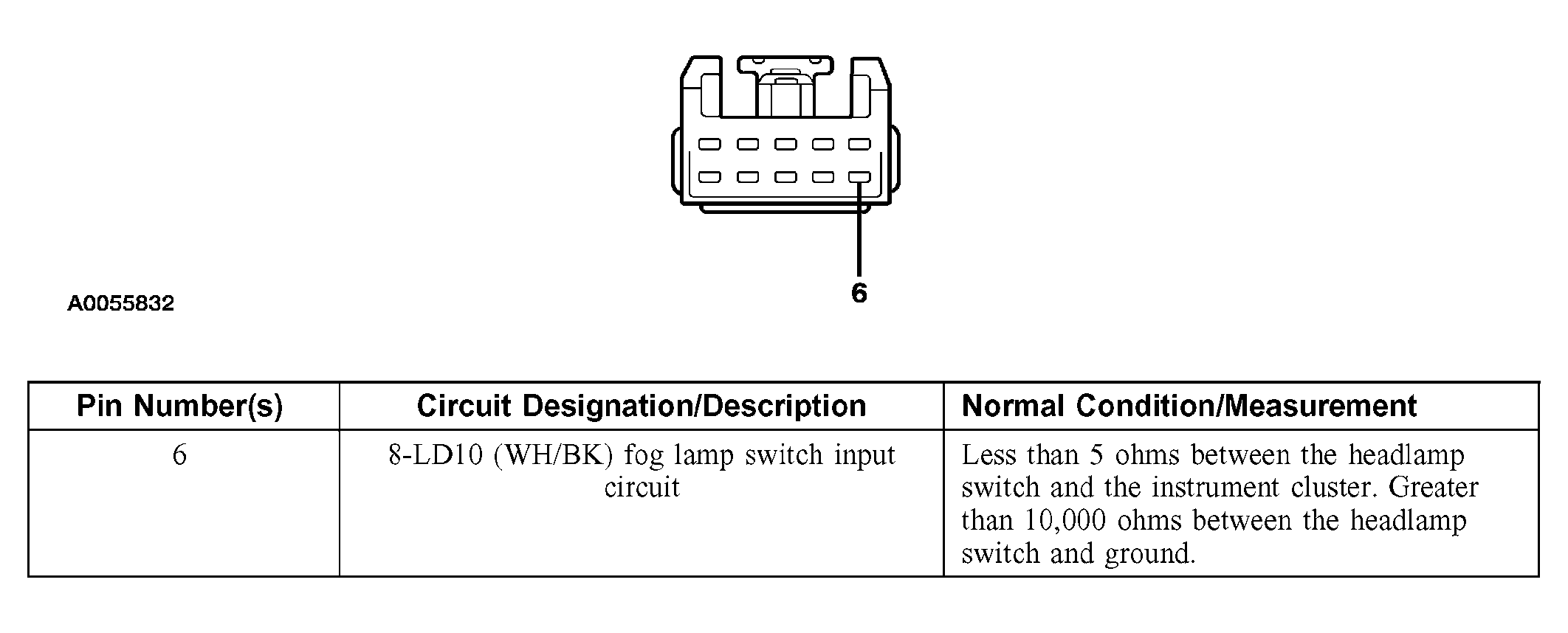

Fig 4: Headlamp Switch C205

Courtesy of FORD MOTOR CO.

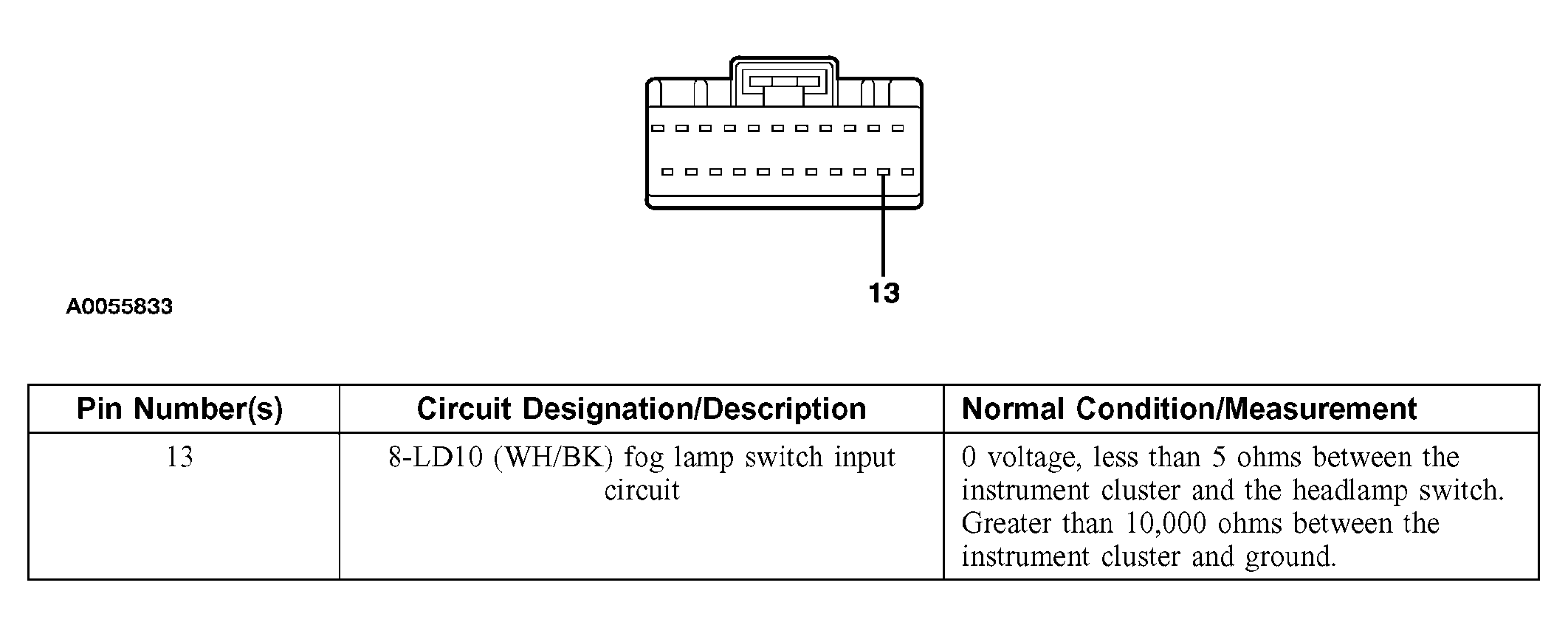

Fig 5: Instrument Cluster C220C

Courtesy of FORD MOTOR CO.

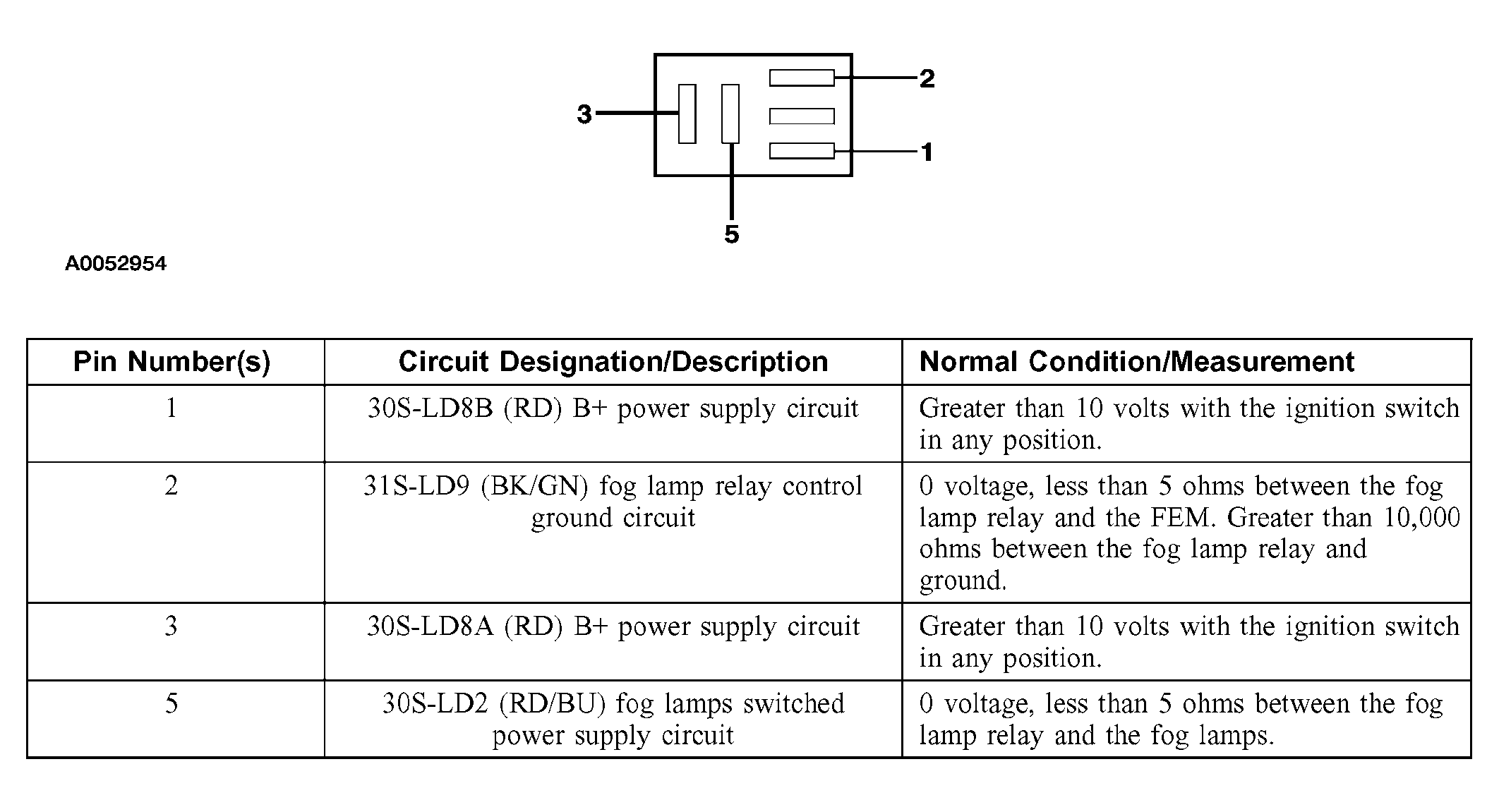

Fig 6: Fog Lamp Relay C1007

Courtesy of FORD MOTOR CO.
