Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

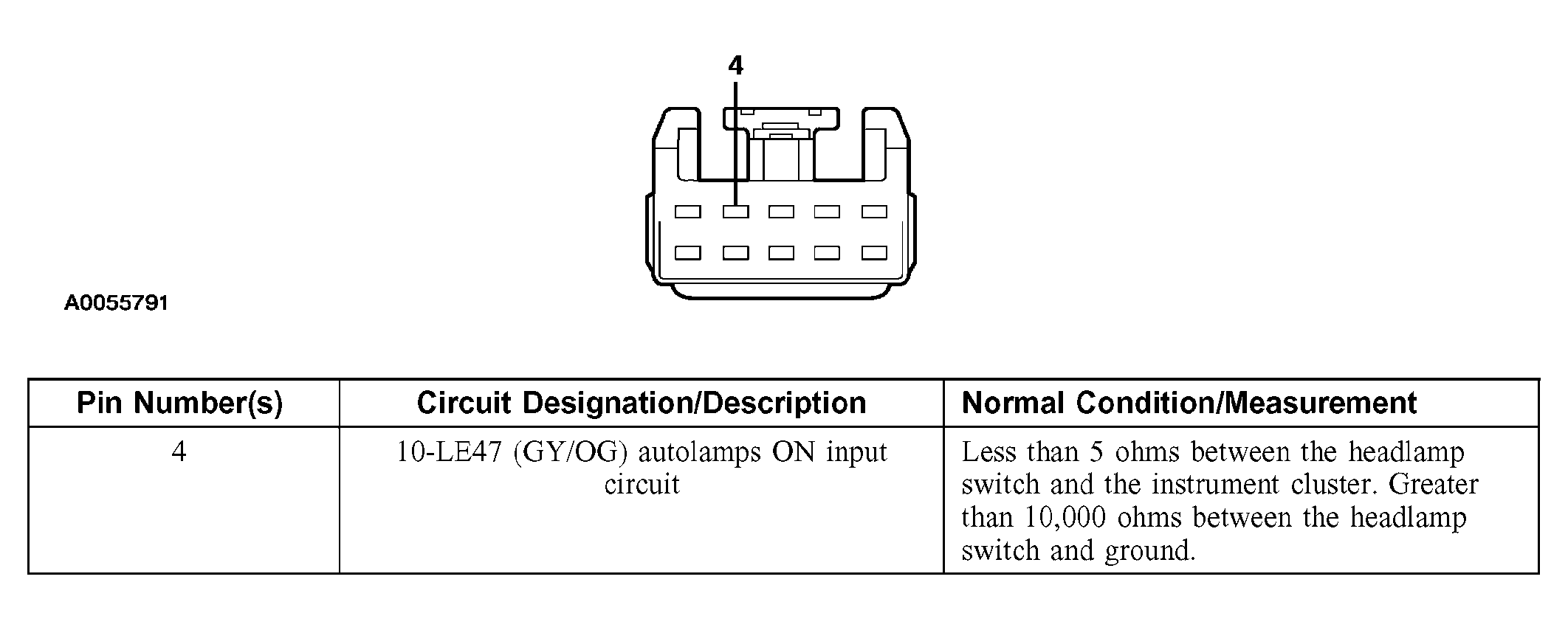

Fig 1: Headlamp Switch C205

Courtesy of FORD MOTOR CO.

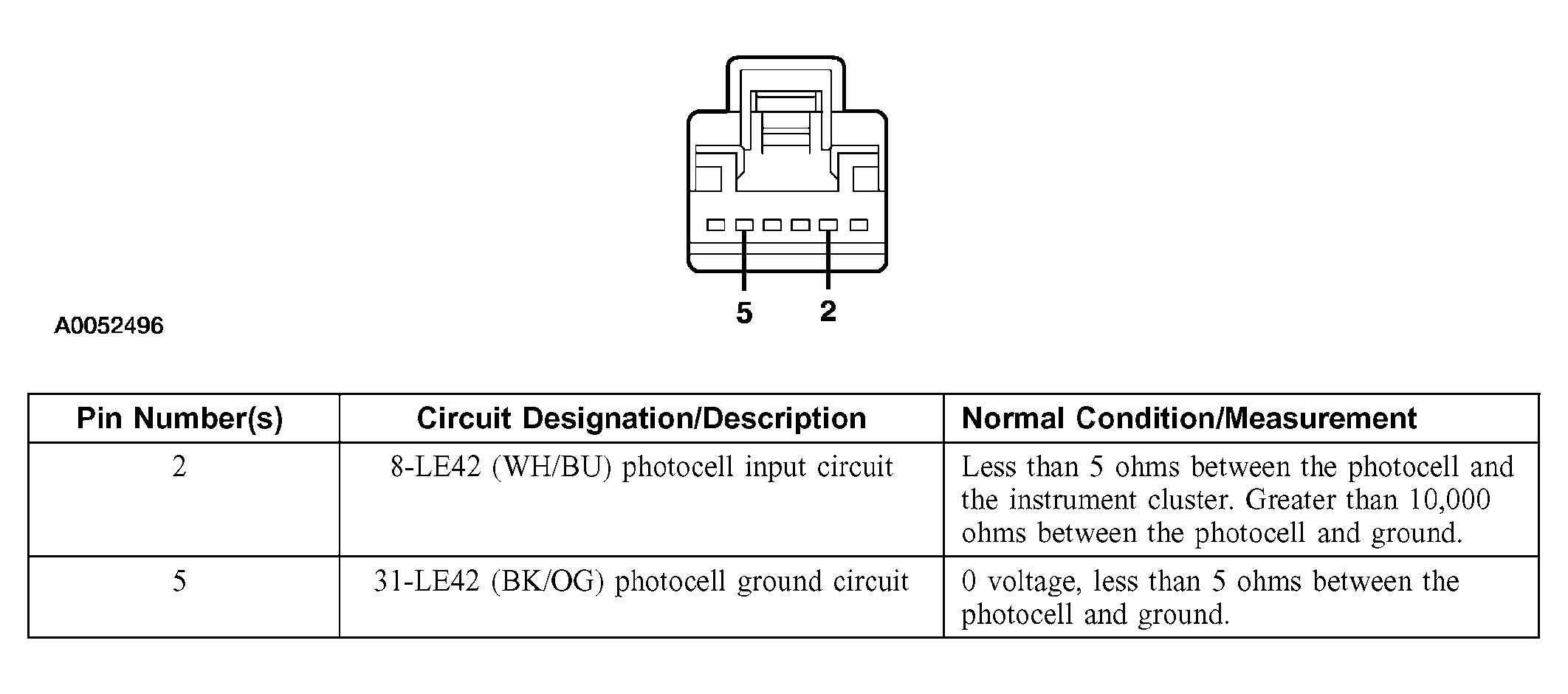

Fig 2: Photocell C286

Courtesy of FORD MOTOR CO.

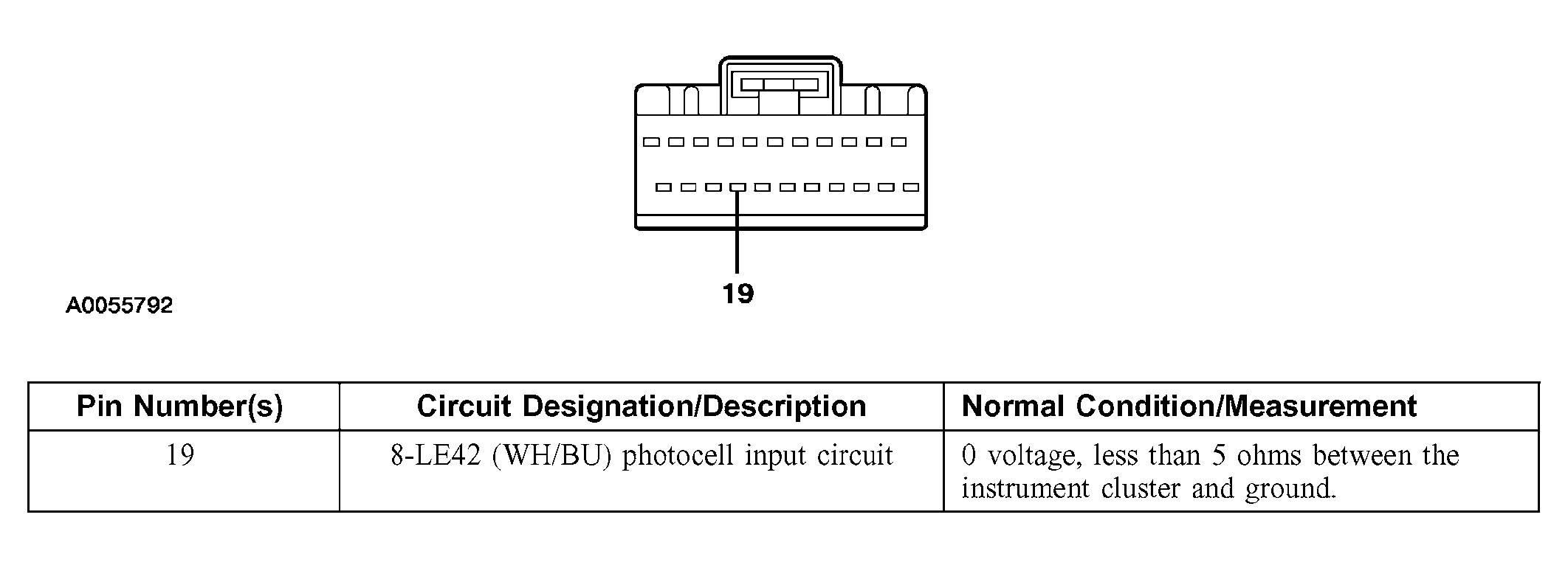

Fig 3: Instrument Cluster C220A

Courtesy of FORD MOTOR CO.

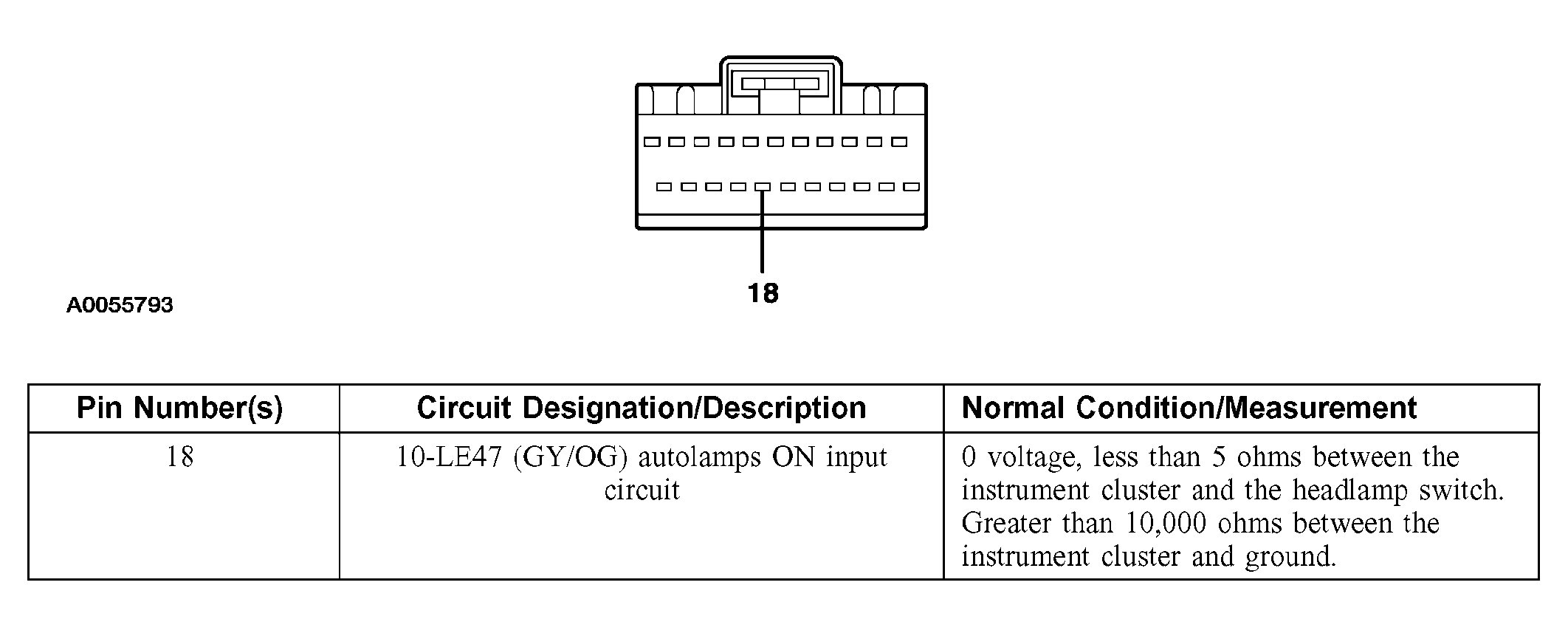

Fig 4: Instrument Cluster C220C

Courtesy of FORD MOTOR CO.
