Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

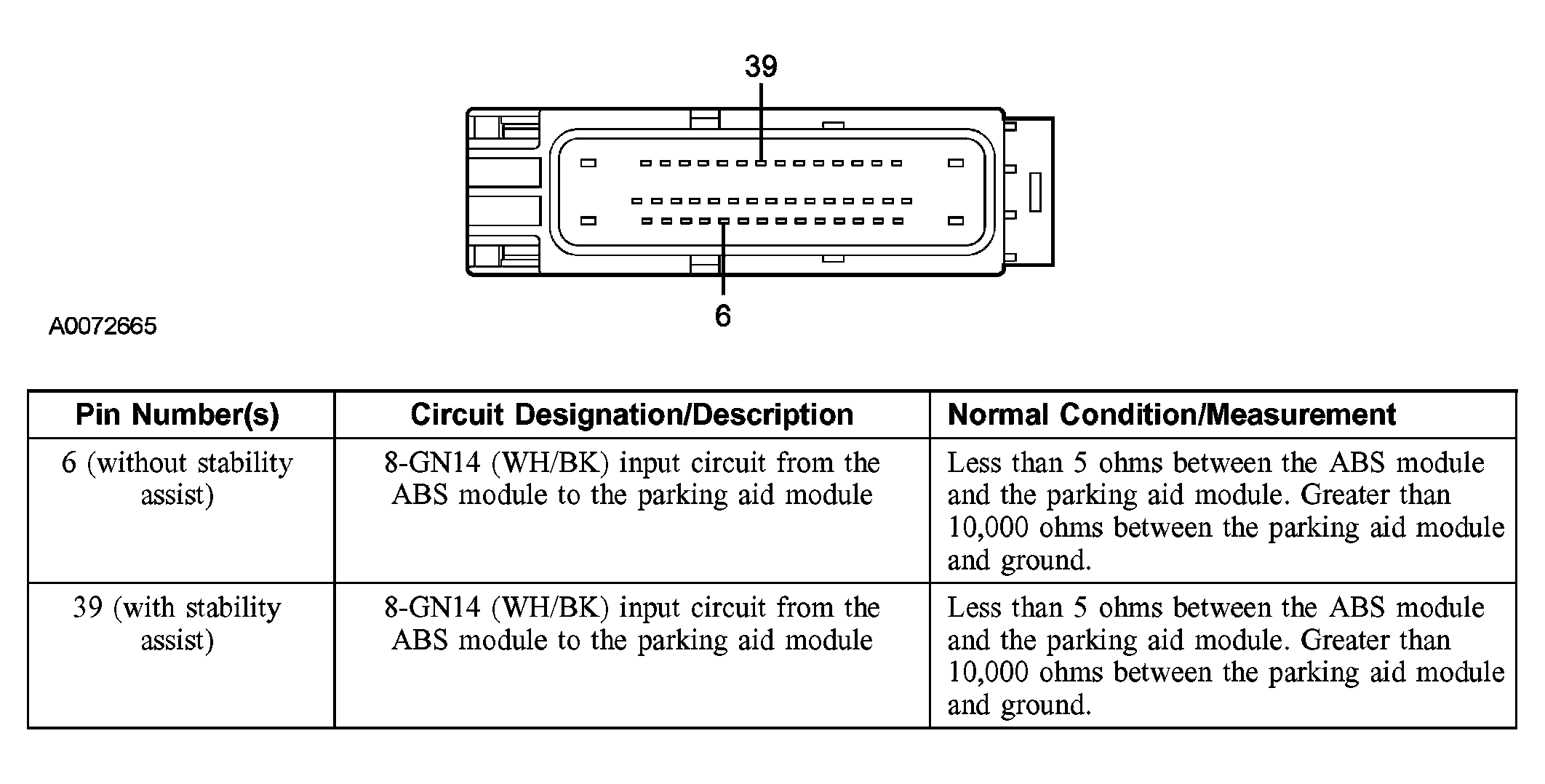

Fig 1: Connector Circuit Reference - Anti-Lock Brake System (ABS) Module C155

Courtesy of FORD MOTOR CO.

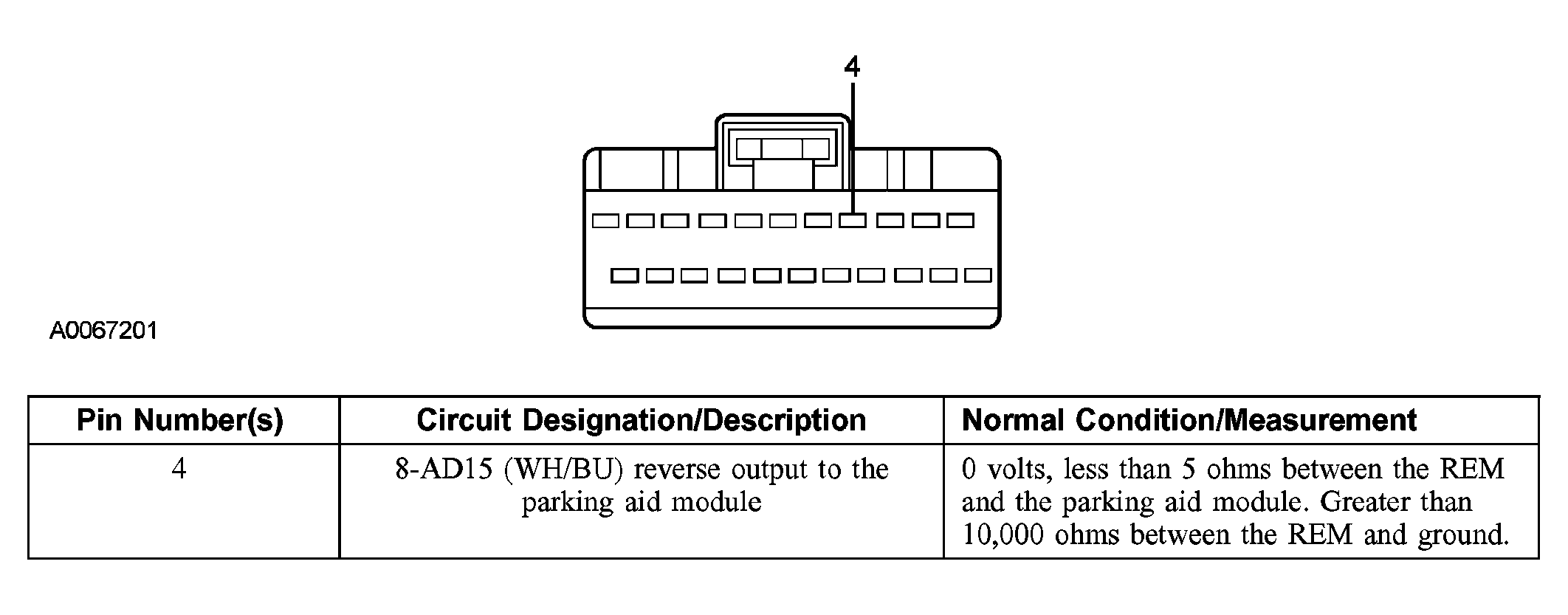

Fig 2: Connector Circuit Reference - Rear Electronic Module (REM) C420B

Courtesy of FORD MOTOR CO.

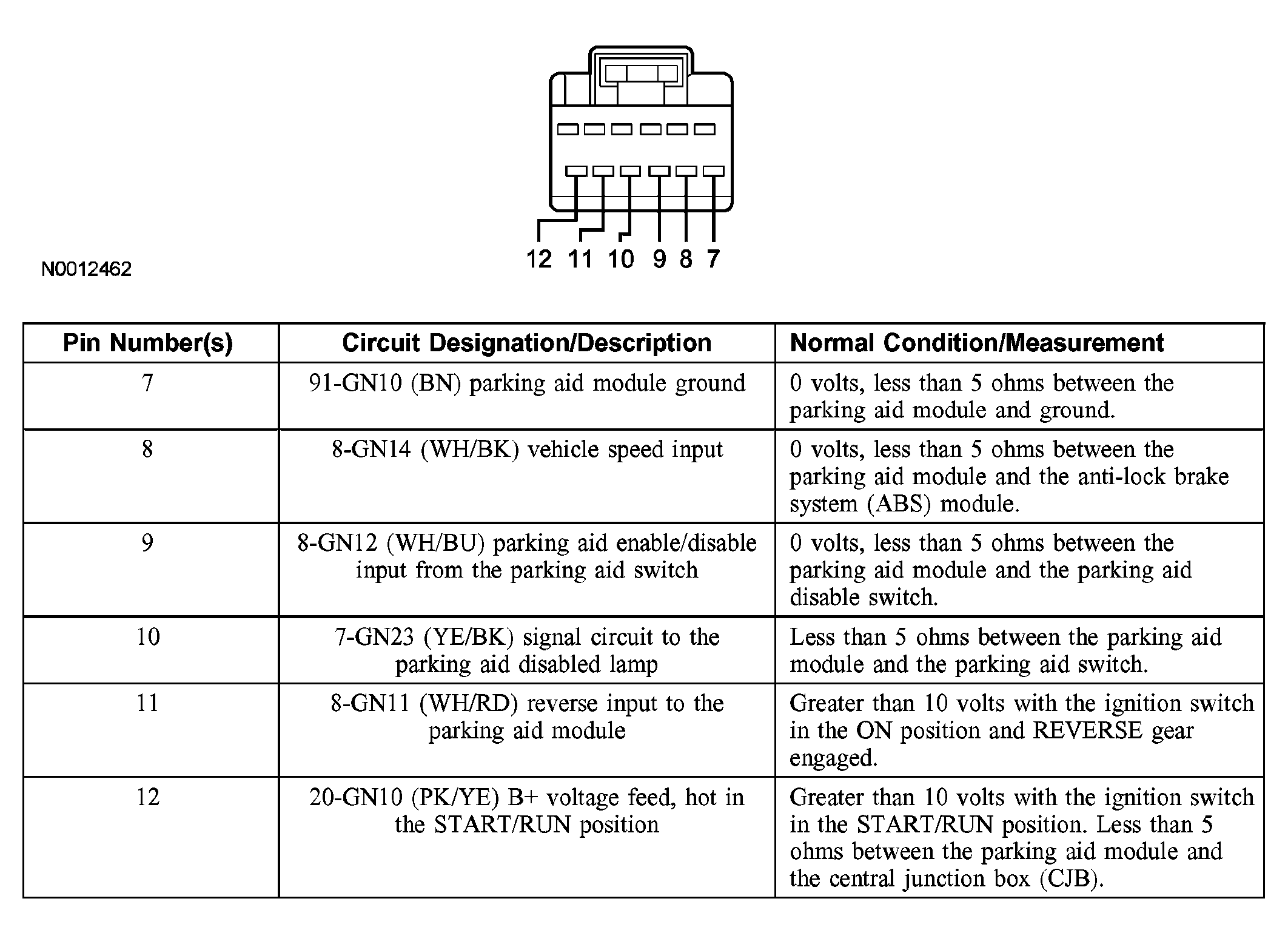

Fig 3: Connector Circuit Reference - Parking Aid Module C4014A

Courtesy of FORD MOTOR CO.

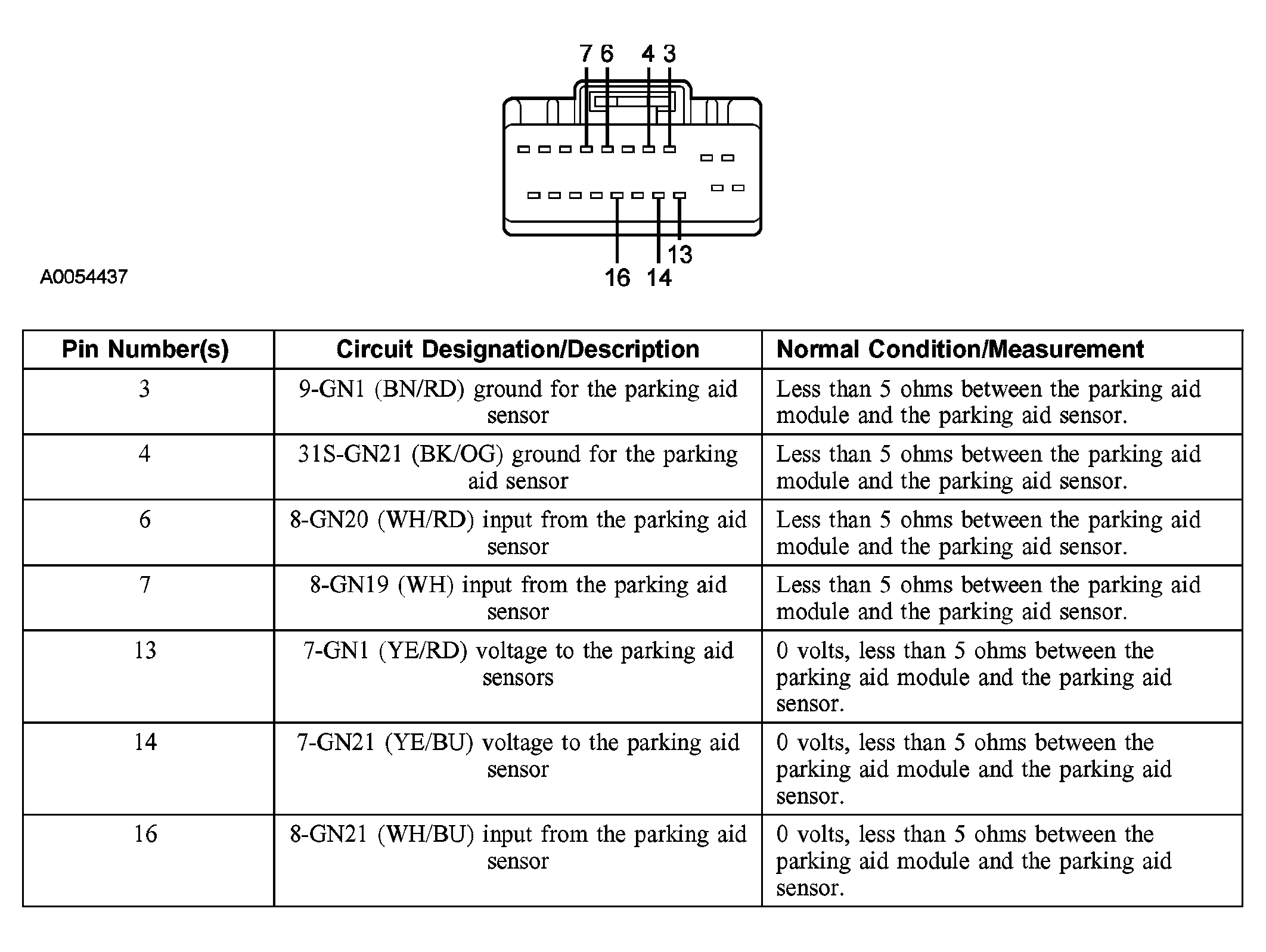

Fig 4: Connector Circuit Reference - Parking Aid Module C4014B

Courtesy of FORD MOTOR CO.

Fig 5: Connector Circuit Reference - Parking Aid Radar Sensor C4191

Courtesy of FORD MOTOR CO.

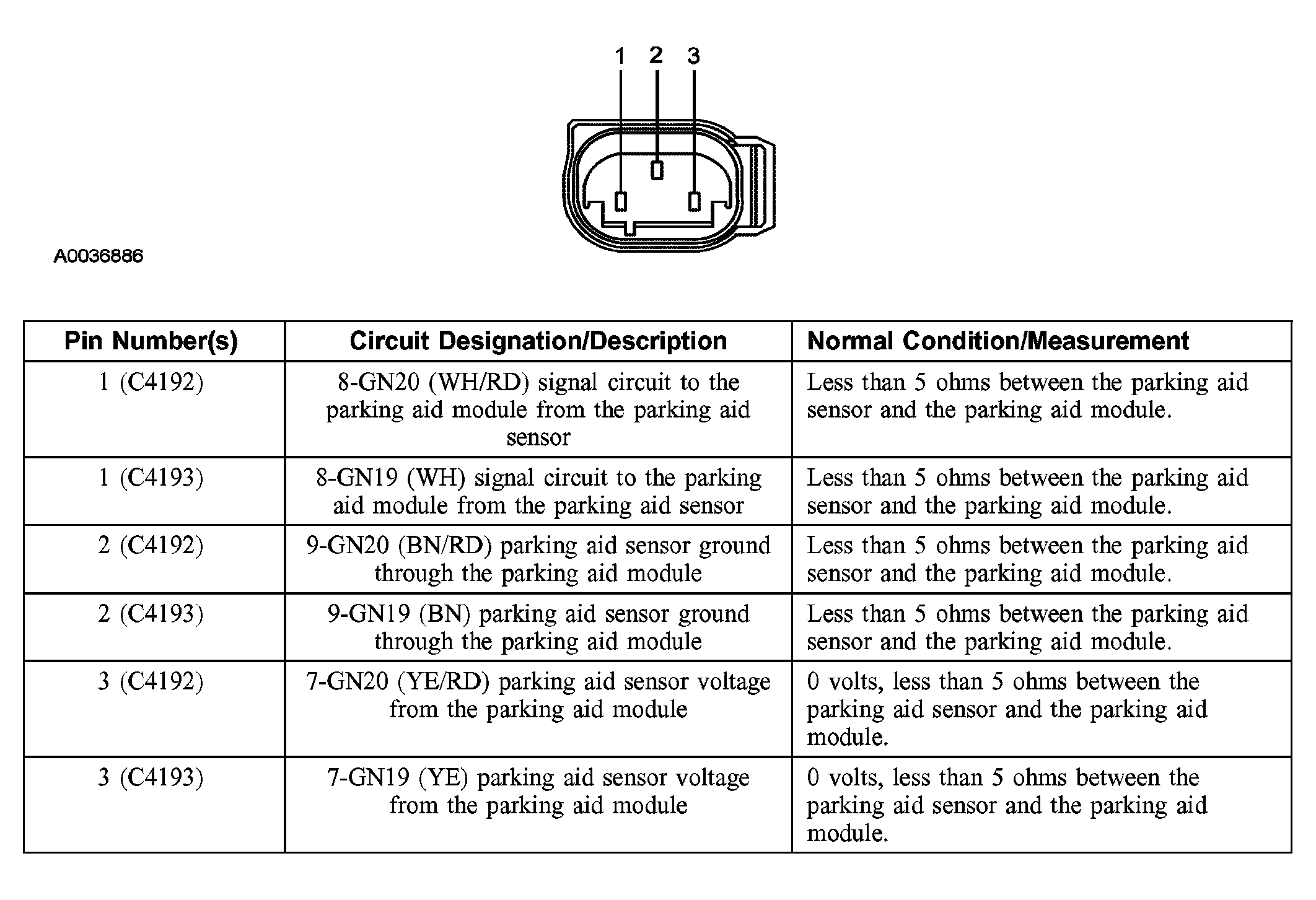

Fig 6: Connector Circuit Reference - LH Parking Aid Sensor C4192, RH Parking Aid Sensor C4193

Courtesy of FORD MOTOR CO.

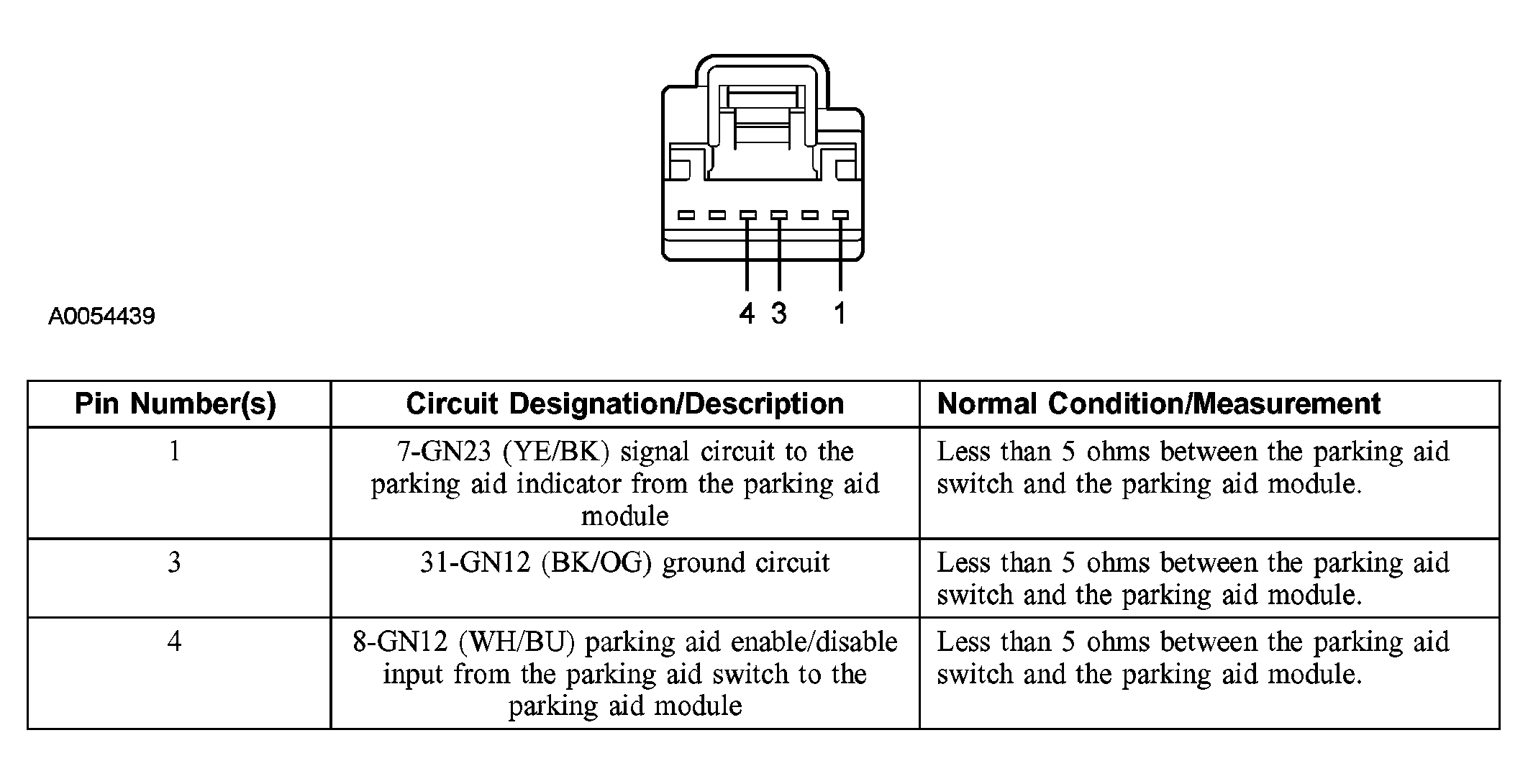

Fig 7: Connector Circuit Reference - Parking Aid Switch C9011

Courtesy of FORD MOTOR CO.
