Removal and Installation

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument cluster. For additional information, REFER to INSTRUMENT CLUSTER in this article.
Remove the 5 screws and the rear cover.

Fig 1: Removing Screws And Rear Cover
Courtesy of FORD MOTOR CO.

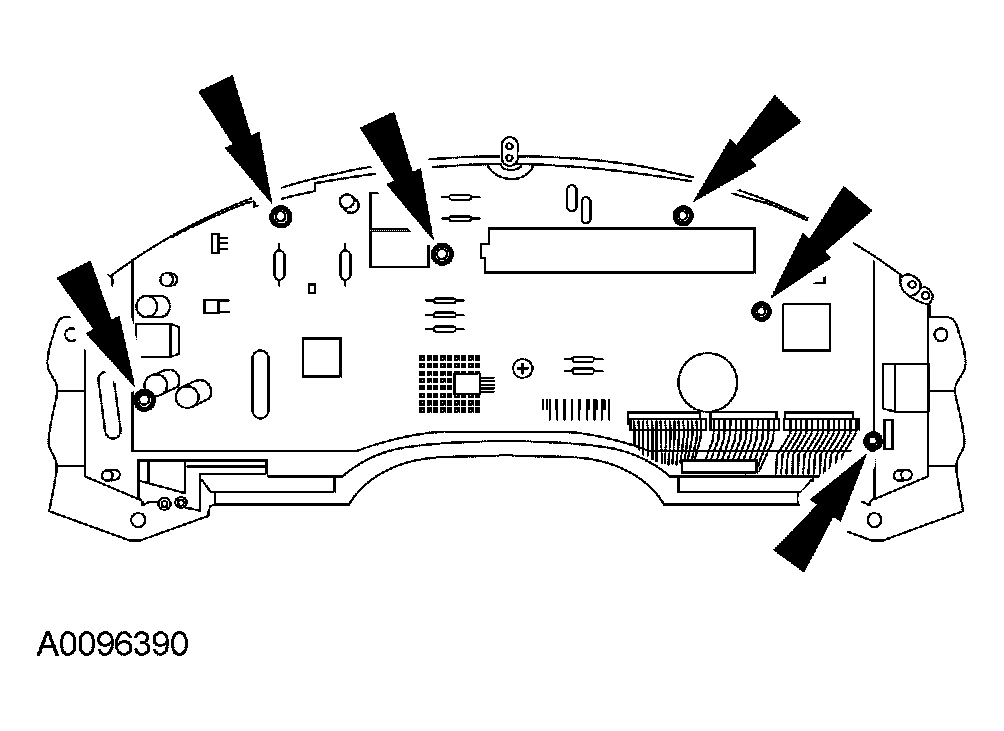

Remove the 6 screws and position the circuit board aside.

Fig 2: Removing Circuit Board Screws
Courtesy of FORD MOTOR CO.

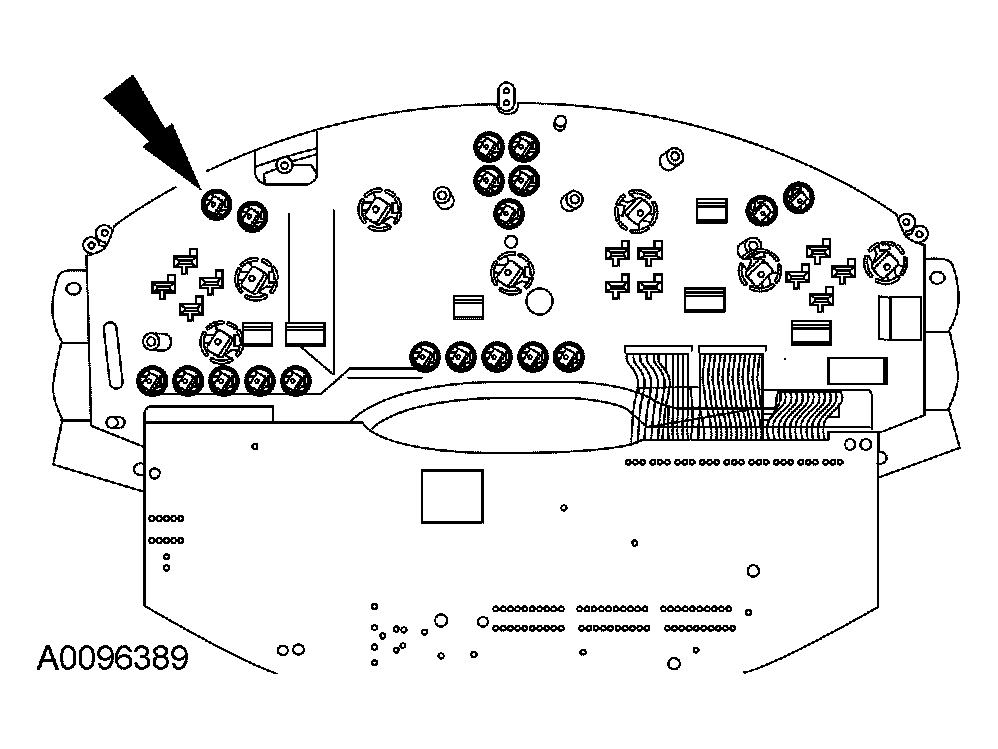

NOTE: To remove a warning indicator bulb, rotate the bulb one quarter turn counterclockwise and lift it straight out from the instrument cluster.

Fig 3: Removing Warning Indicator Bulb

Courtesy of FORD MOTOR CO.

Remove the warning indicator bulb in question.
To install, reverse the removal procedure.
