Rear Electronic Module (REM) C420e

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

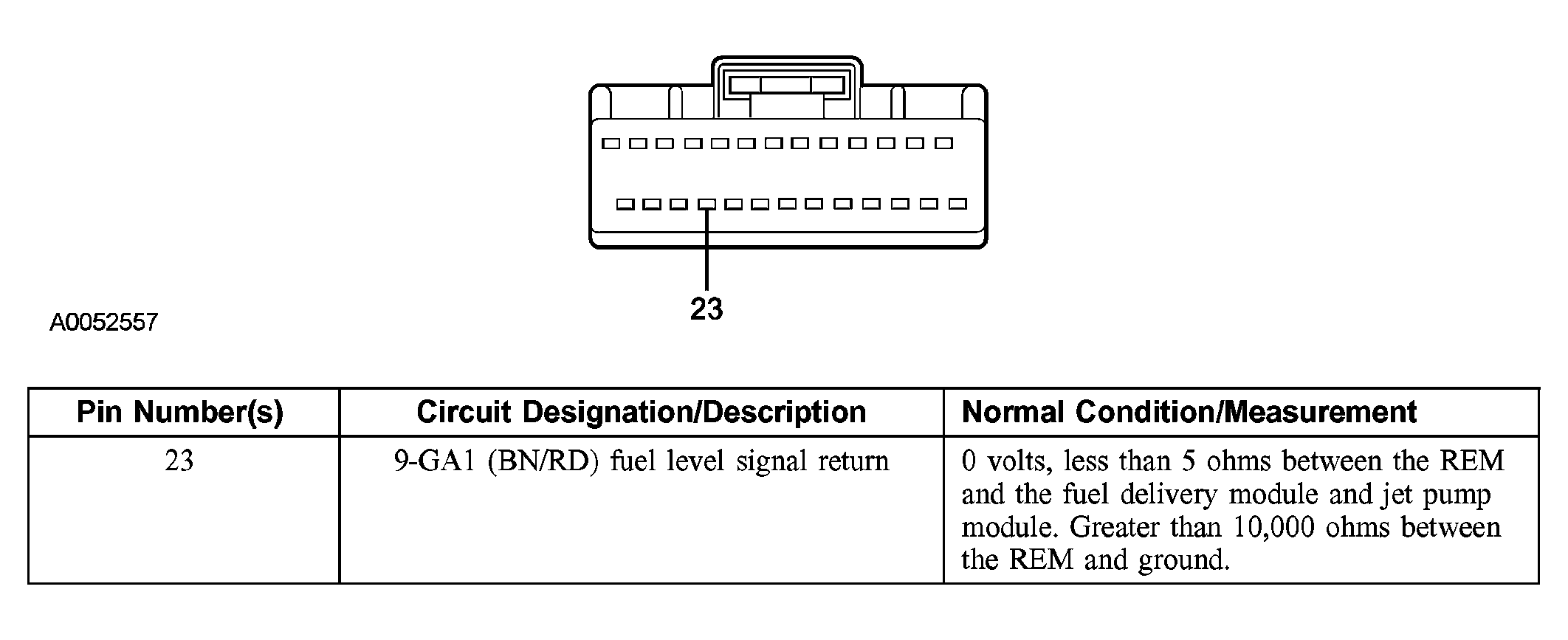

Fig 1: Identifying Rear Electronic Module (REM) C420e Connector Pins
G03998311Courtesy of FORD MOTOR CO.
