Engine Oil Pressure Switch C103

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

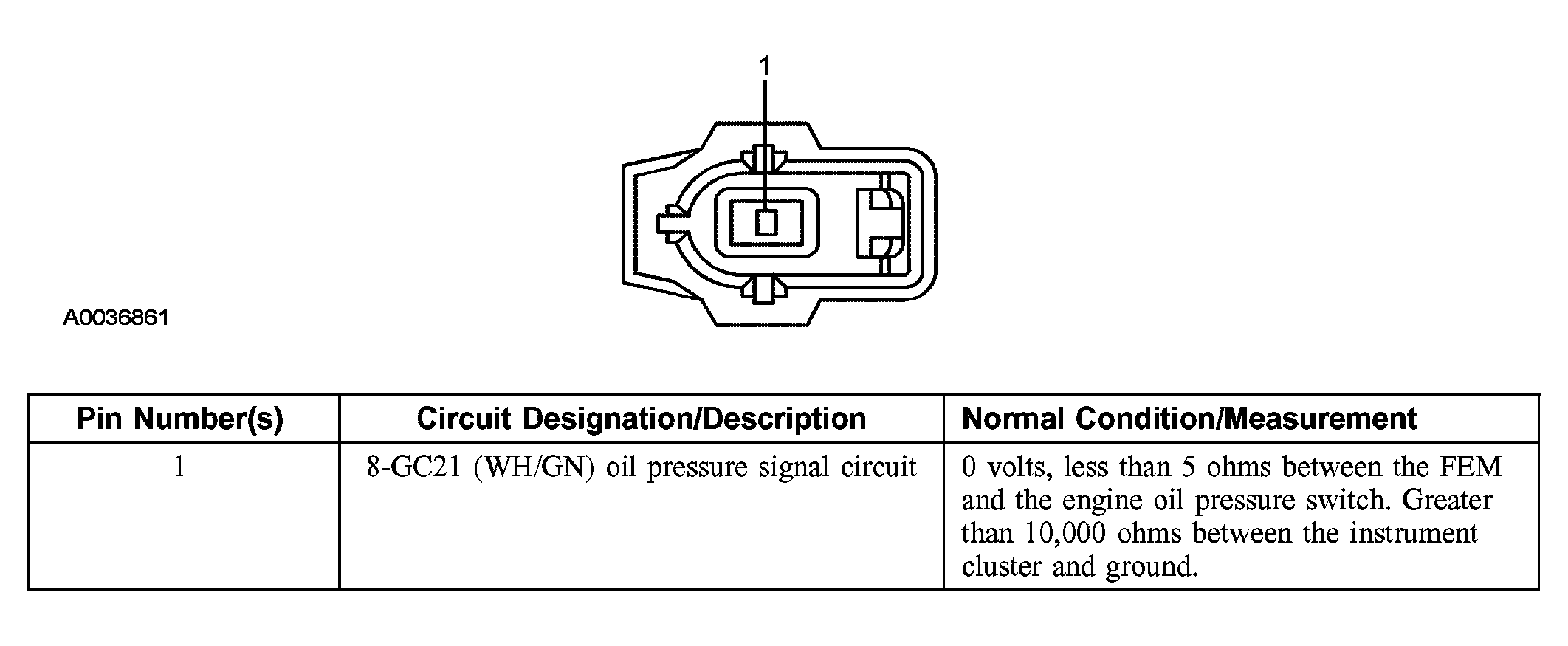

Fig 1: Identifying Engine Oil Pressure Switch C103 Connector Pins
G03998304Courtesy of FORD MOTOR CO.
