Instrument Panel Dimmer Switch
WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

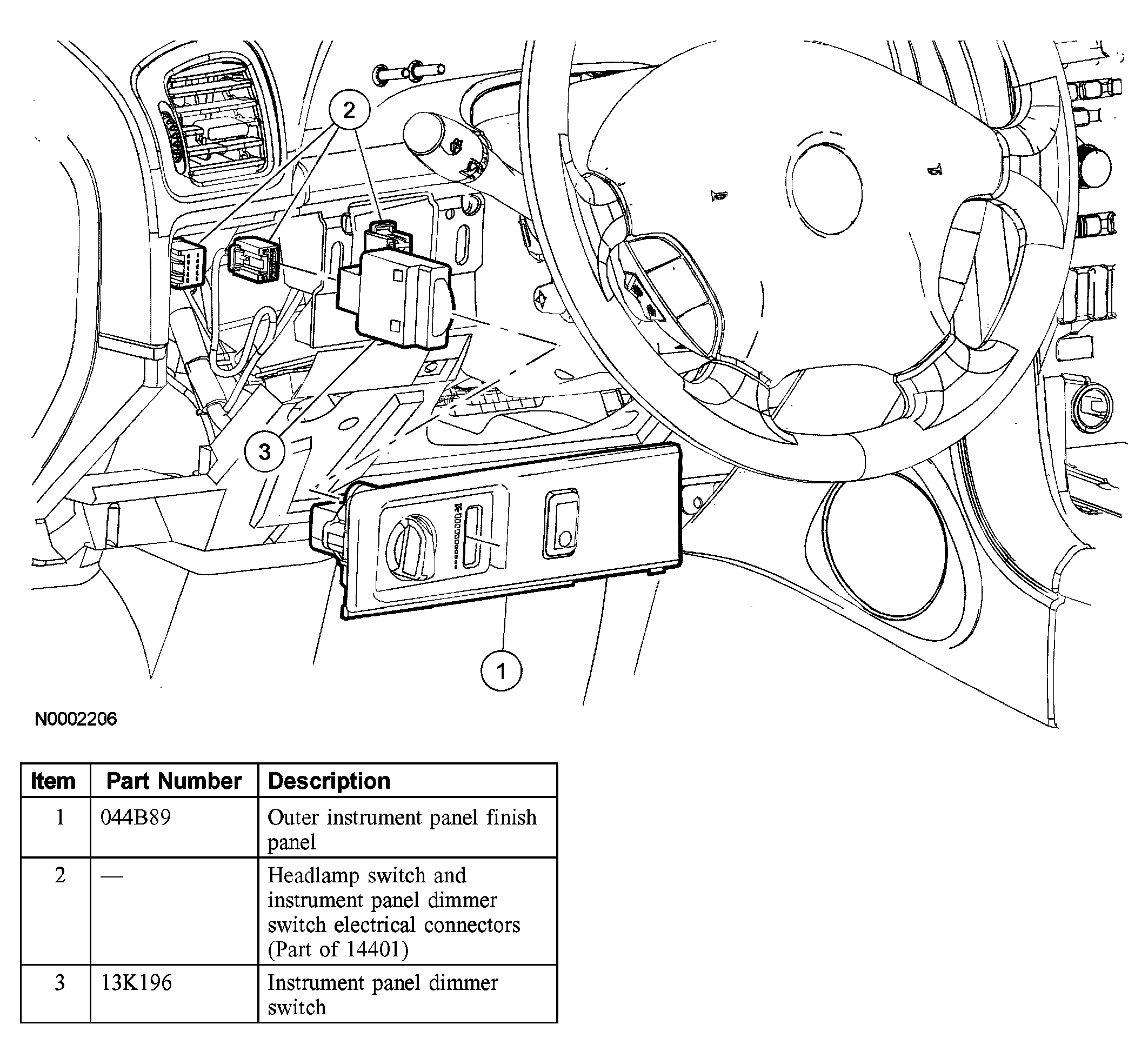

- Remove the instrument panel steering column cover. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
- Remove the outer instrument panel finish panel.
- Disconnect electrical connectors.
- Release the retaining tabs and remove the instrument panel dimmer switch.
- To install, reverse the removal procedure.
NOTE:
The outer instrument panel finish panel is held in place by spring clips located on the housing.
