Traction Control (TC) Switch C3208

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

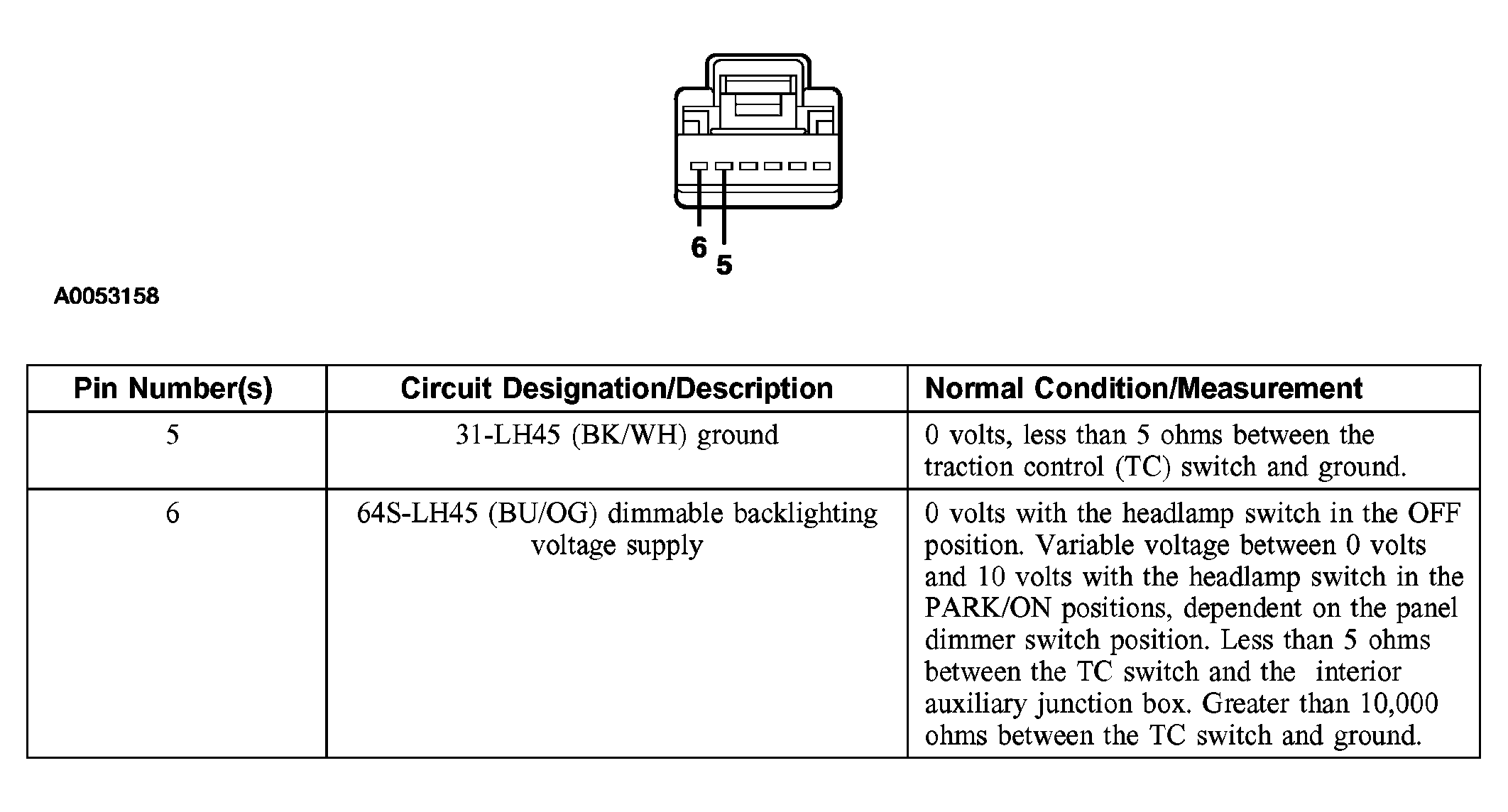

Fig 1: Identifying Traction Control Switch C3208 Connector Pins
G03998256Courtesy of FORD MOTOR CO.
