Heated Seat Switch C722 (LH Rear) or C822 (RH Rear)

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

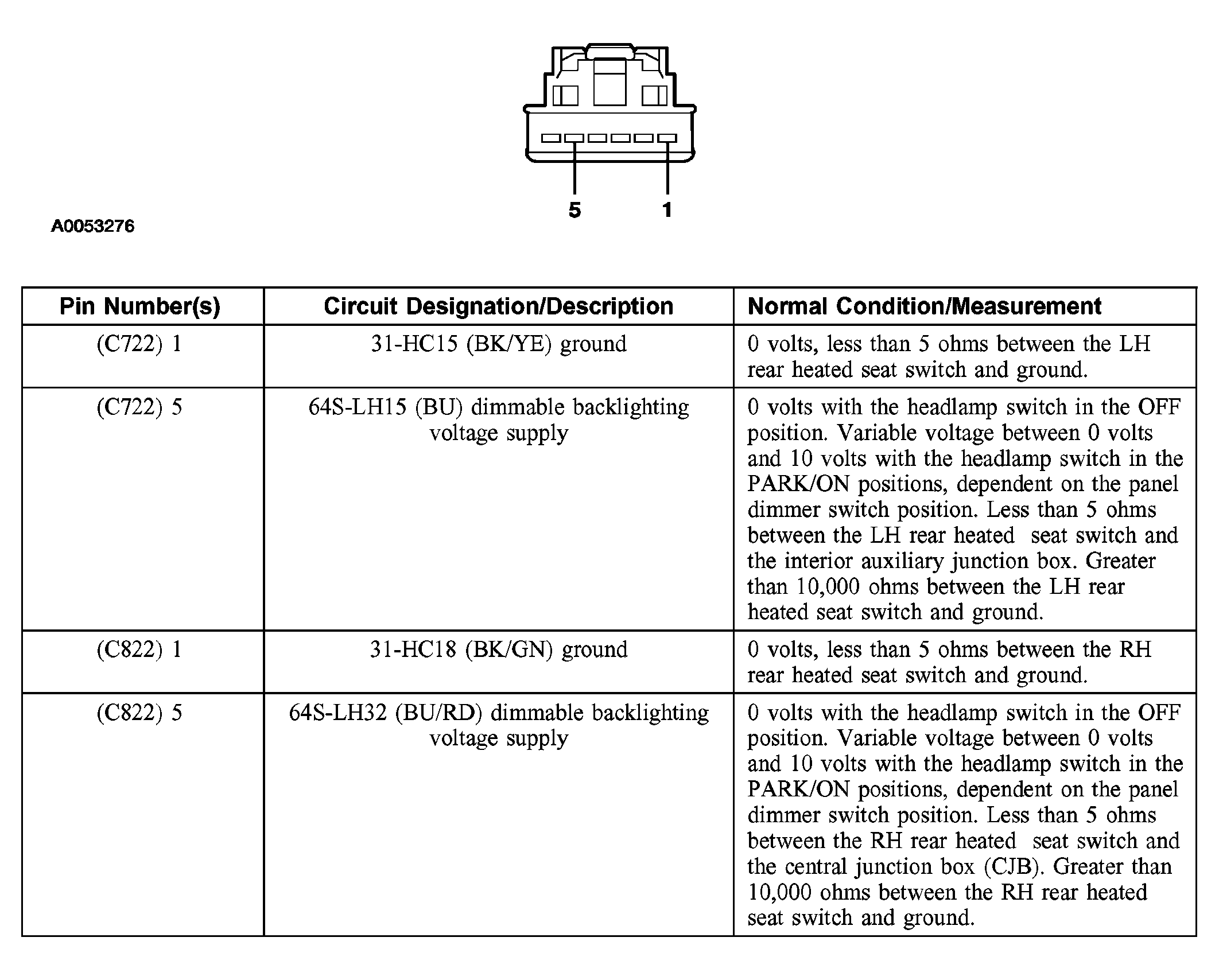

Fig 1: Identifying Heated Seat Switch C722 (LH Rear) Or C822 (RH Rear) Connector Pins
G03998253Courtesy of FORD MOTOR CO.
