Peanut Fitting

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

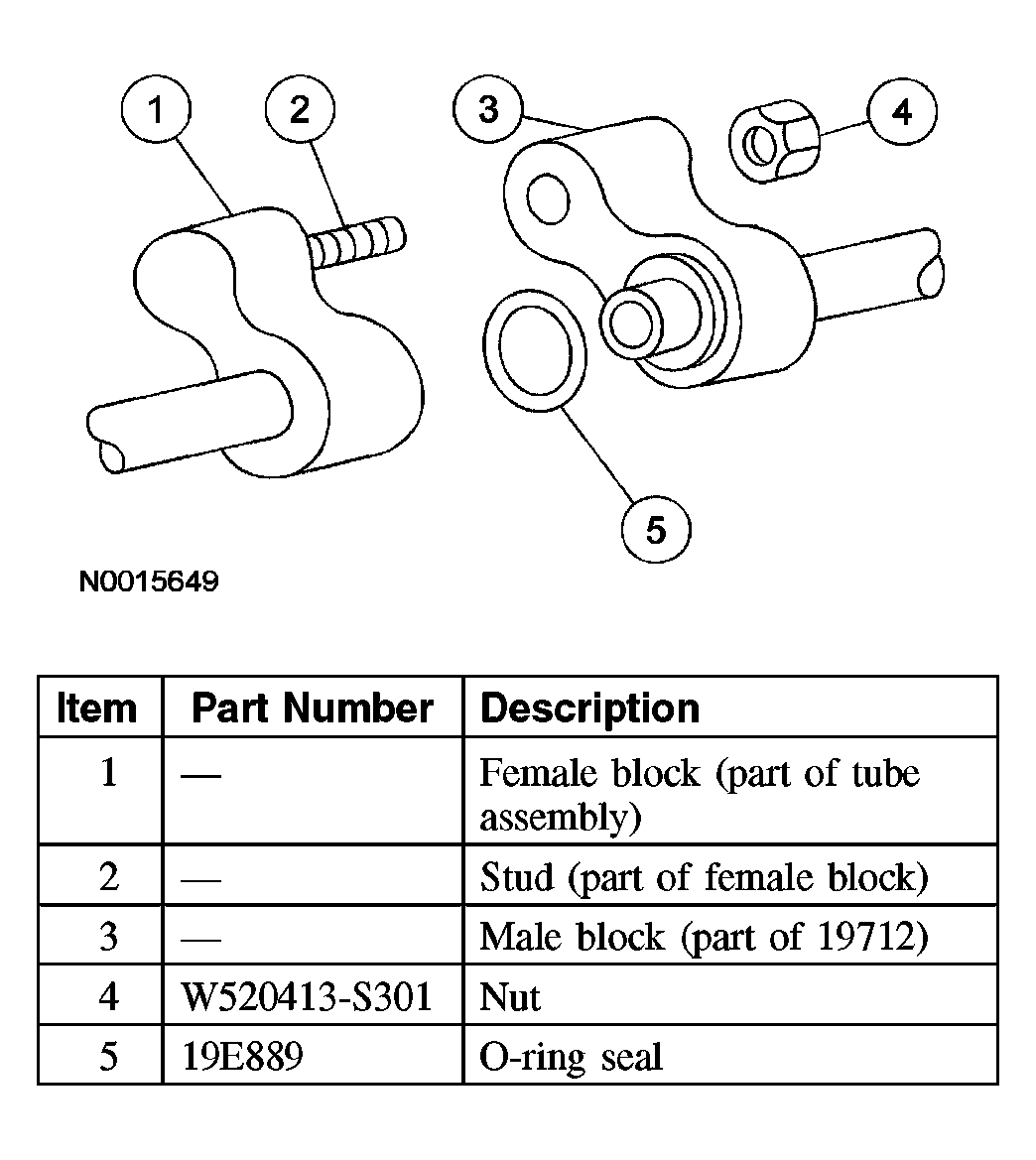

Fig 1: Identifying Peanut Fitting Components

Courtesy of FORD MOTOR CO.

When disconnecting or connecting peanut fittings, observe the following:

The male and female blocks of the peanut fitting are retained with a nut.
Support the female fitting with a wrench to prevent twisting of the tubes.
An O-ring seal is installed around the tube on the male block.
When correctly assembled, the male and female fittings should be flush.
Use only the O-ring seal listed in the Ford Master Parts Catalog.
