Blower Motor

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

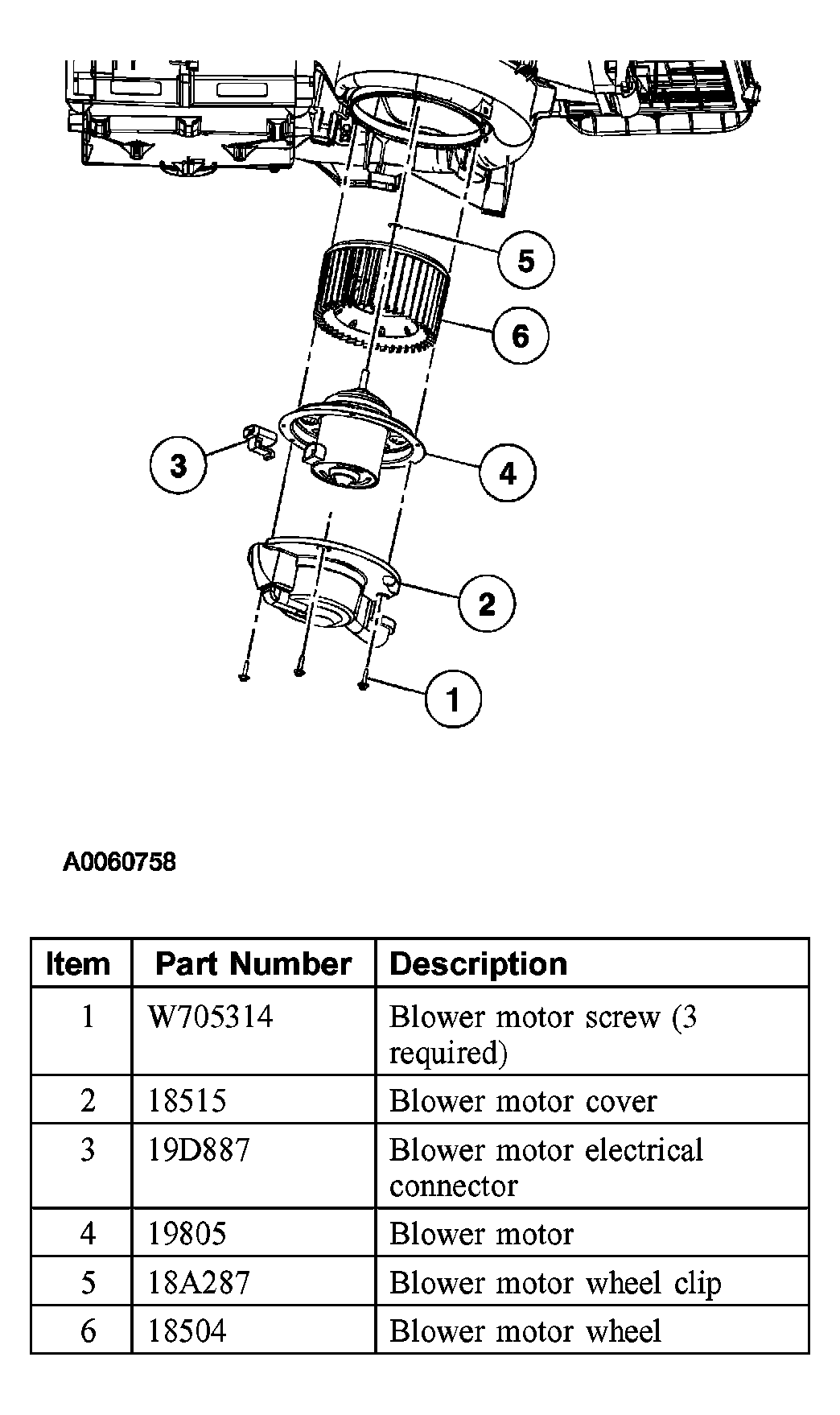

Fig 1: Removal/Installation Of Blower Motor
G03998178Courtesy of FORD MOTOR CO.
  1. Remove the RH floor duct.
  2. Remove the 3 blower motor screws.
  3. Remove the blower motor cover.
  4. Disconnect the blower motor electrical connector.
  5. Remove the blower motor.
  6. Remove the blower motor wheel clip.
  7. Remove the blower motor wheel.
  8. To install, reverse the removal procedure.
