Heater Hose: Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

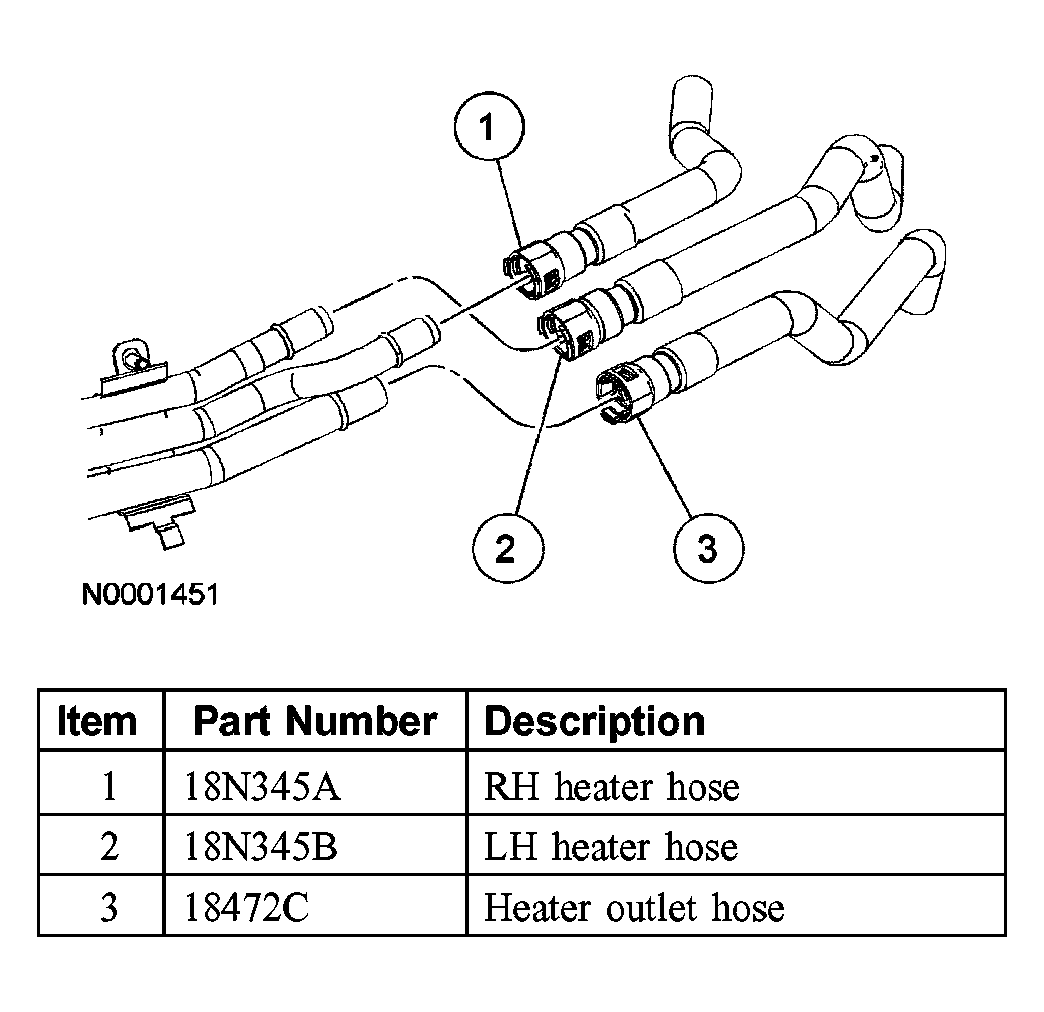

Fig 1: Removal/Installation Of Heater Hose (1 Of 2)
G03998179Courtesy of FORD MOTOR CO.

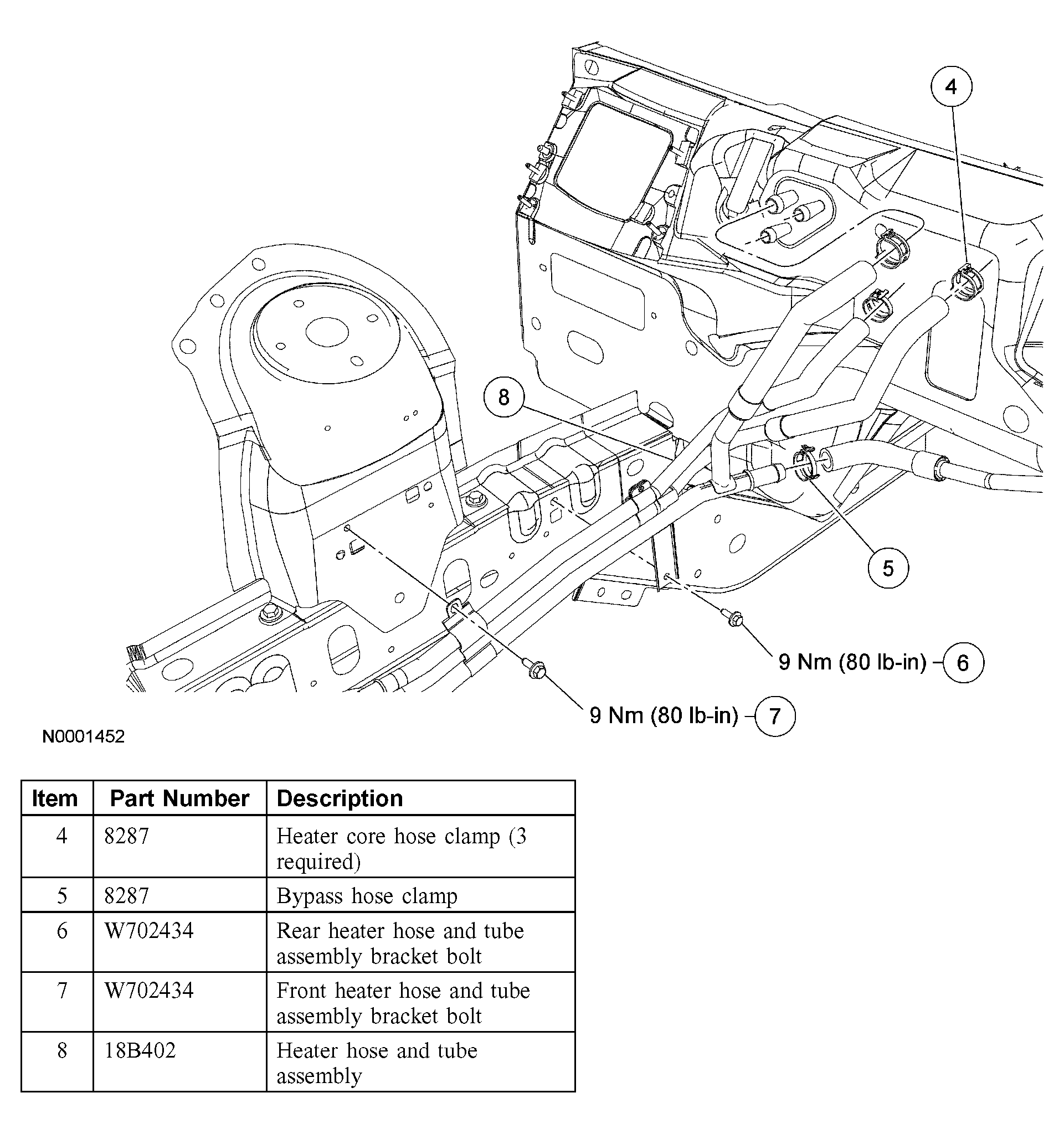

Fig 2: Removal/Installation Of Heater Hose (2 Of 2)
G03998180Courtesy of FORD MOTOR CO.
