A/C Clutch Air Gap Adjustment

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the A/C clutch air gap at three equally spaced places between the clutch hub and the A/C clutch pulley.

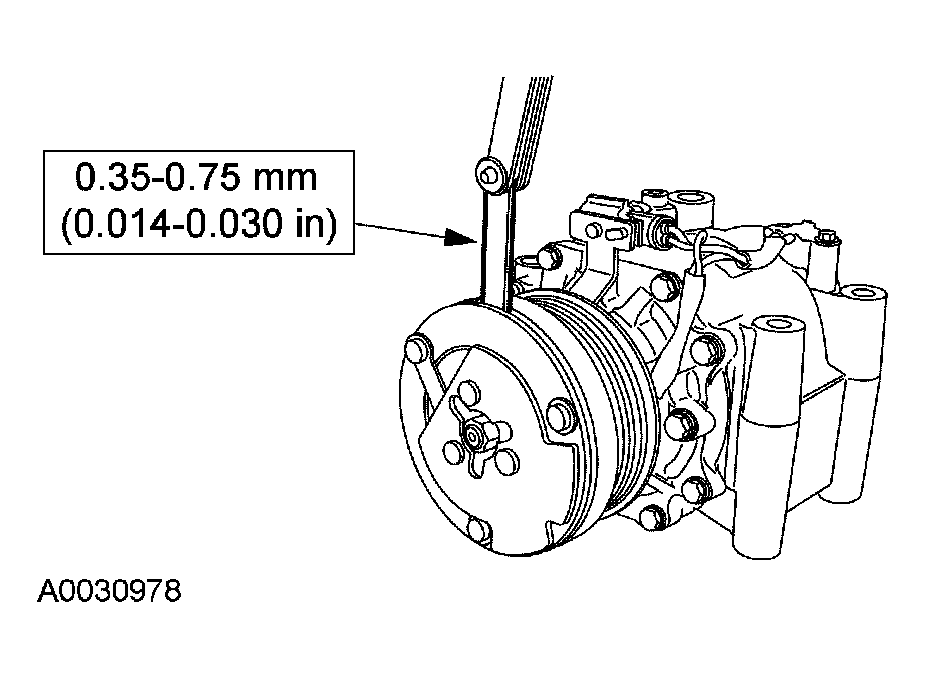

    Fig 1: Checking A/C Clutch Air Gap
    G03998124Courtesy of FORD MOTOR CO.
  2. Remove the A/C clutch. Add or remove spacers between the A/C clutch and the compressor shaft until clearance is within specifications.
