MULTIFUNCTION Switch
WARNING: This page is about a different car, the 2002 Lincoln Blackwood and 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

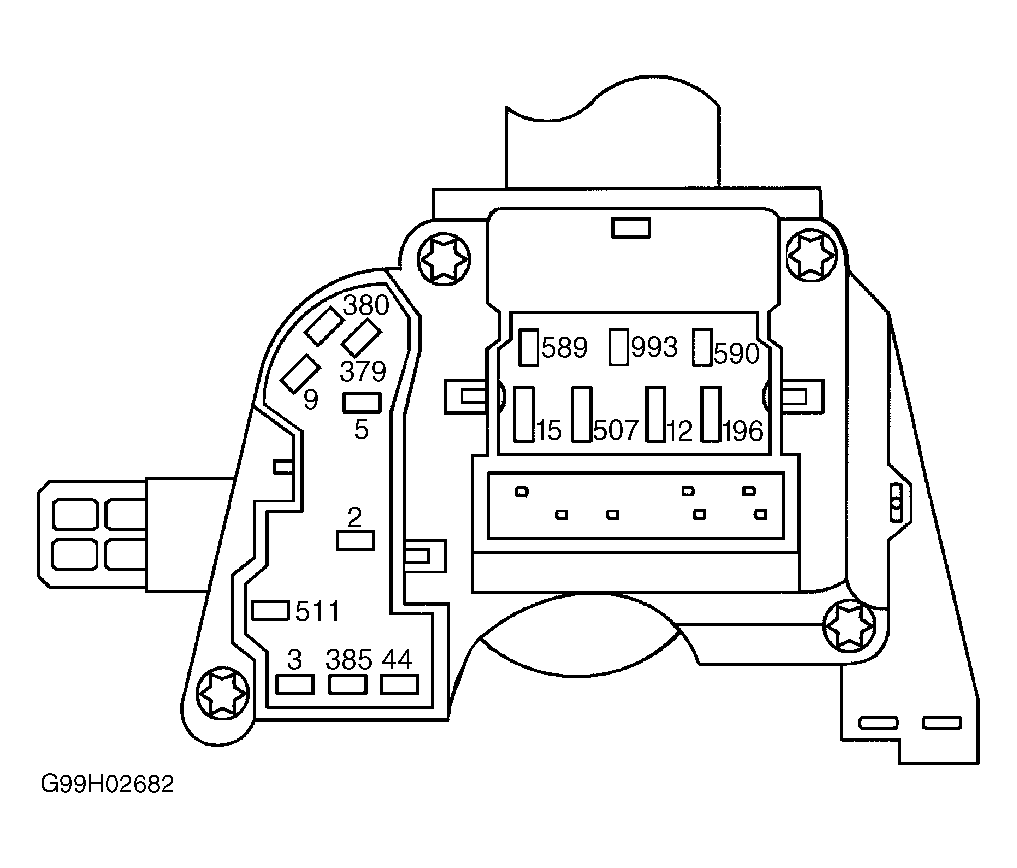

Remove multifunction switch. See MULTIFUNCTION SWITCH under REMOVAL & INSTALLATION. Measure resistance between specified terminals while operating multifunction switch lever to specified positions. See MULTIFUNCTION SWITCH TESTING table. See Fig 1. If resistance is not as specified, replace multifunction switch.
MULTIFUNCTION SWITCH TESTING
| Switch Position | Terminals No. | (1) Ohms | |||||
|---|---|---|---|---|---|---|---|
| Wiper Switch | |||||||
| OFF | 1 & 4 | 955 | |||||
| INT | 1 & 4 | 1910 | |||||
| LO | 1 & 4 | 410 | |||||
| HI | 1 & 4 | 0-4 | |||||
| Intermittent Wipers On | 4 & 6 | (2) | |||||
| Washer Switch | |||||||
| OFF | 4 & 6 | 103,300 | |||||
| ON | 4 & 6 | 0-4 | |||||
| Hazard Switch On | |||||||
| Blackwood | 2, 4, 6, 8 10 & 11 | 0-4 | |||||
| F150 Pickup | 2, 4, 5, 8 & 10 | 0-4 | |||||
| Left Turn Signal On | |||||||
| Blackwood | 6 & 8 | 0-4 | |||||
| F150 Pickup | 1 & 8 | 0-4 | |||||
| Right Turn Signal On | |||||||
| Blackwood | 5 & 6 | 0-4 | |||||
| F150 Pickup | 1 & 5 | 0-4 | |||||
| High Beam | |||||||
| Blackwood | 3 & 6 | 0-4 | |||||
| F150 Pickup | 2 &5 | 0-4 | |||||
| Low Beam | |||||||
| Blackwood | 5 & 6 | 0-4 | |||||
| F150 Pickup | 2 &5 | 0-4 | |||||
| Flash-To-Pass On | 2 & 3 | 0-4 | |||||
|
|||||||
