Special Tool(s)

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

FUEL PUMP MODULE SPECIAL TOOL DESCRIPTION

	Fuel Sender Wrench 310-069
	Fuel Drain Hose 310-102
	Fuel Storage Tanker 164-R3202 or equivalent

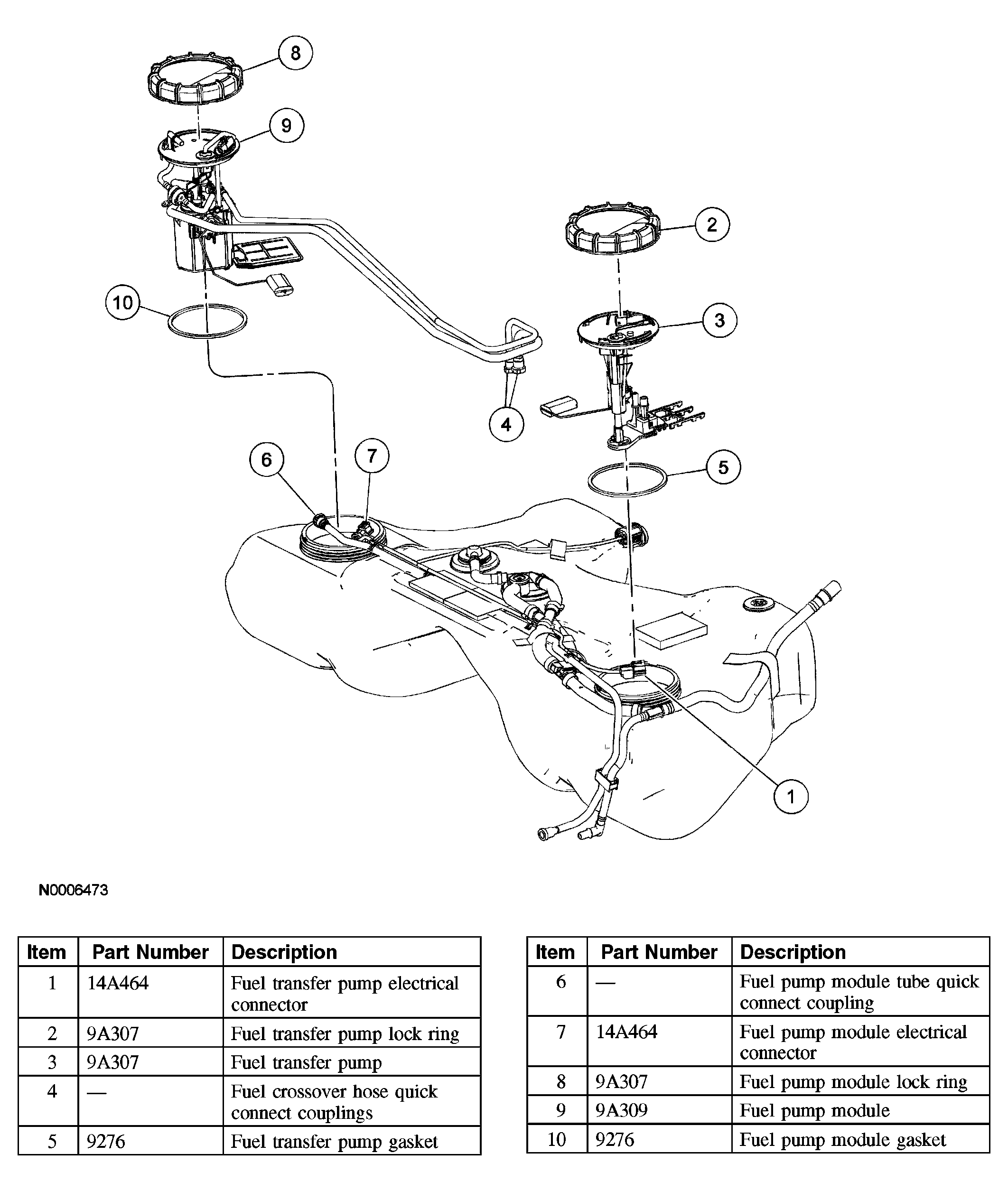

Fig 1: Exploded View Of Fuel Pump Module

Courtesy of FORD MOTOR CO.
