Removal and Installation

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

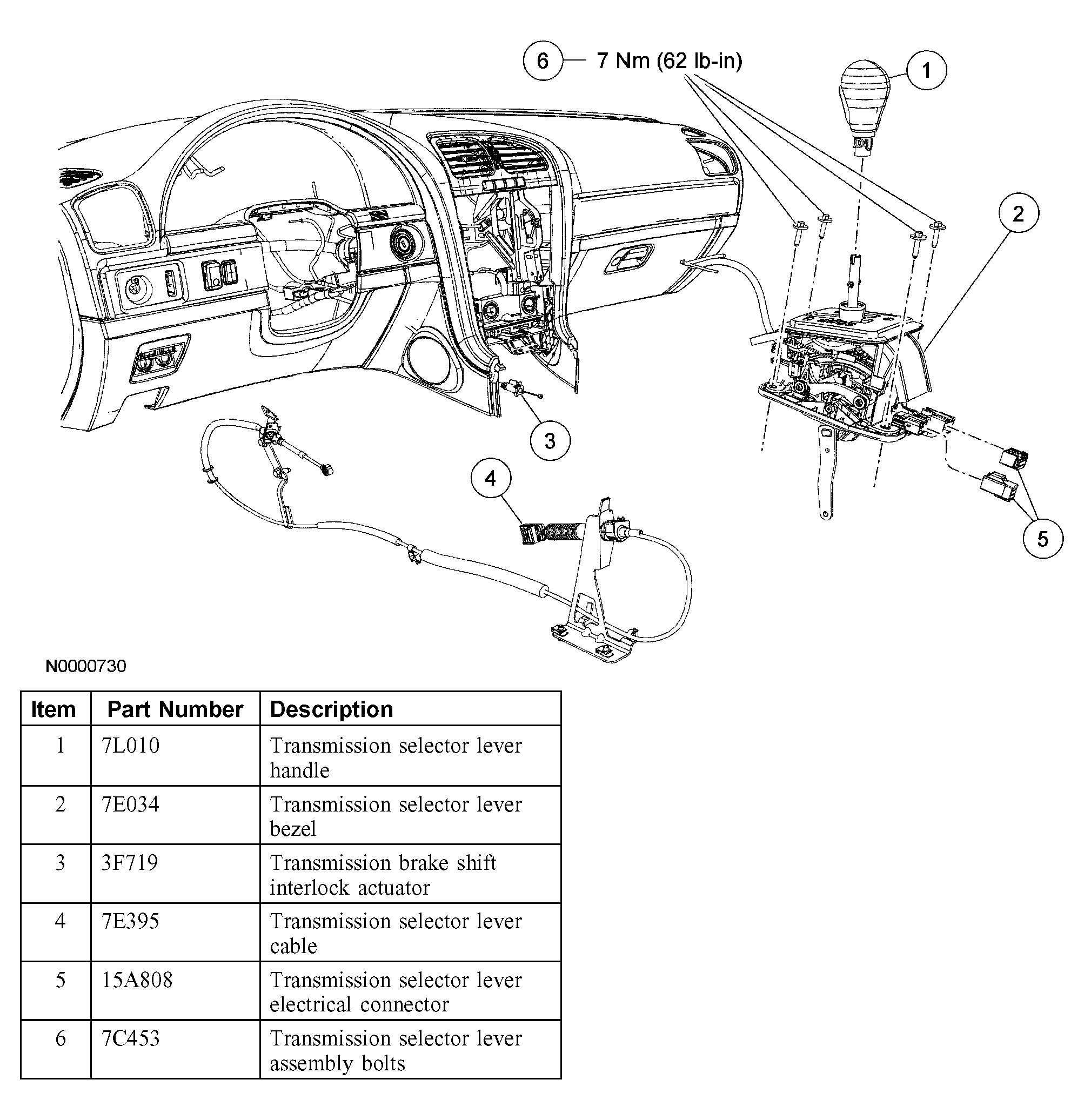

Fig 1: Removing And Installing Of Transmission Selector Lever
G03997843Courtesy of FORD MOTOR CO.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Place the range selector lever in the D5 position.
  3. Remove the center console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  4. Remove the handle and cover.
    1. Slide the cover down.
    2. Remove the two screws.
    3. Remove the handle and the cover.

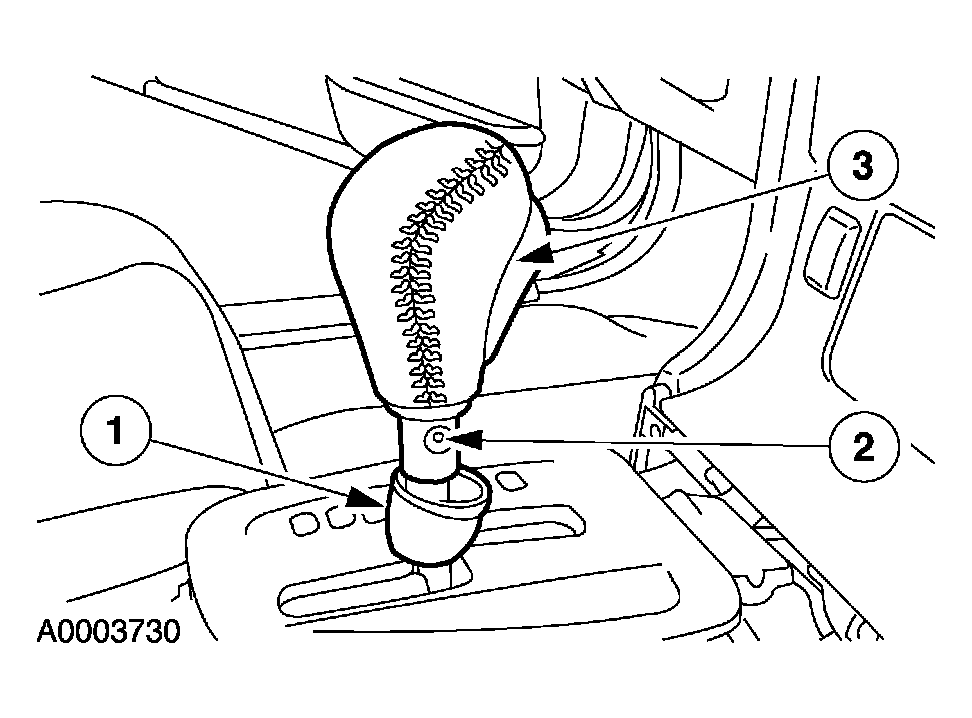

    Fig 2: Removing Shifter Handle And Cover
    G03997844Courtesy of FORD MOTOR CO.
  5. Move the shifter bezel aside.

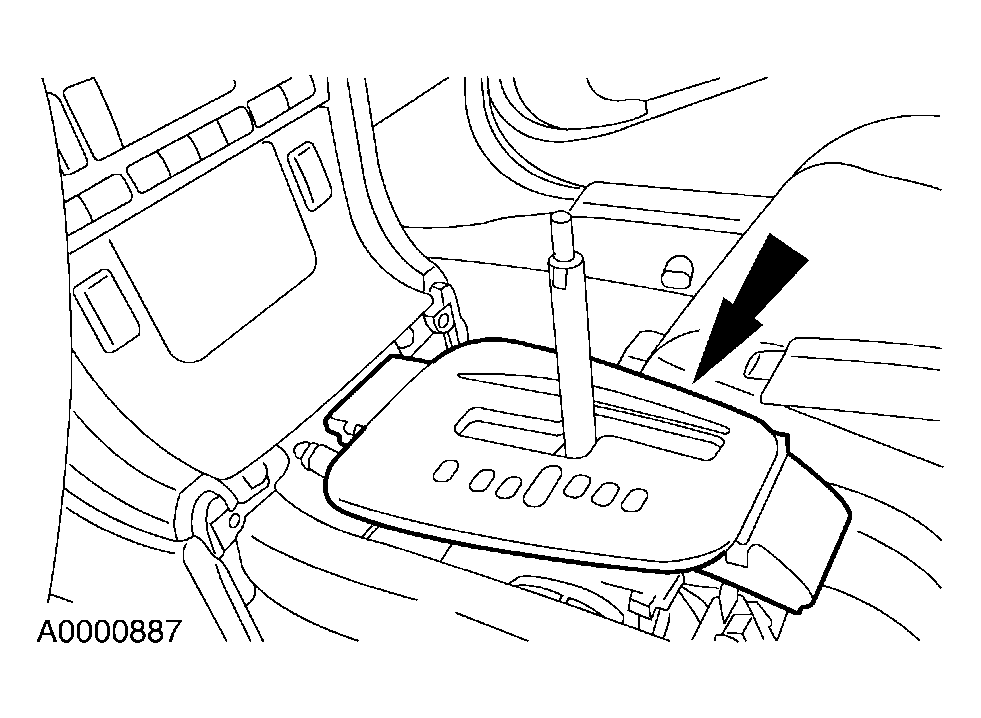

    Fig 3: Identifying Shifter Bezel
    G04008759Courtesy of FORD MOTOR CO.
  6. Remove the PRNDL indicator bulb from the electrical connector.
    Fig 4: Removing PRNDL Indicator Bulb From Electrical Connector
    G03997821Courtesy of FORD MOTOR CO.
  7. Disconnect the cable from the lever.
    1. Remove the shift interlock cable from the bracket.
    2. Disconnect the cable from the lever.
    Fig 5: Locating Cable At Lever
    G03997823Courtesy of FORD MOTOR CO.
  8. Disconnect the transmission shift cable from the shifter assembly.

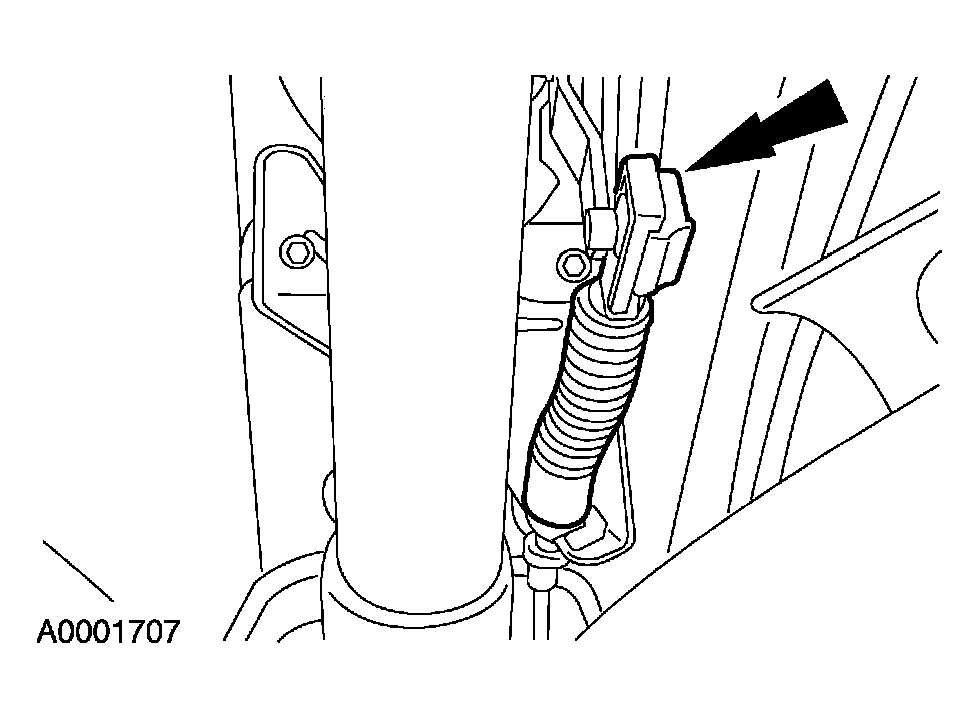

    Fig 6: Identifying Transmission Shift Cable Eyelet At Selector Lever Assembly
    G03997817Courtesy of FORD MOTOR CO.
  9. Disconnect the 2 electrical connectors from the shifter assembly.
    Fig 7: Disconnecting Electrical Connectors From Shifter Assembly
    G03997849Courtesy of FORD MOTOR CO.
  10. Remove the 4 screws from the shift lever assembly base.
    • To install, tighten to 7 Nm (62 lb-in).

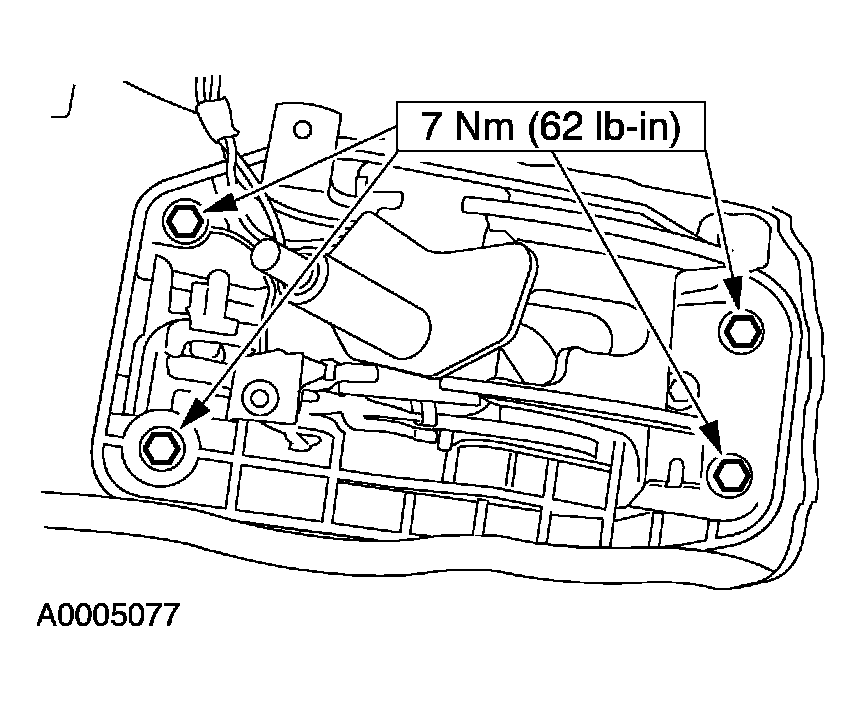

    Fig 8: Shift Lever Assembly Base Mounting Screws - With Torque Specification
    G03997850Courtesy of FORD MOTOR CO.
  11. NOTE: A selector lever cable adjustment must be carried out after installation. For additional information, refer to SELECTOR LEVER CABLE ADJUSTMENT  in this article.
  12. To install, reverse the removal procedure.
