Removal and Installation

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If equipped with the traction control switch, the switch will need to be disconnected prior to removing the center console.

Remove the center console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Remove the PRNDL indicator bulb from the electrical connector.

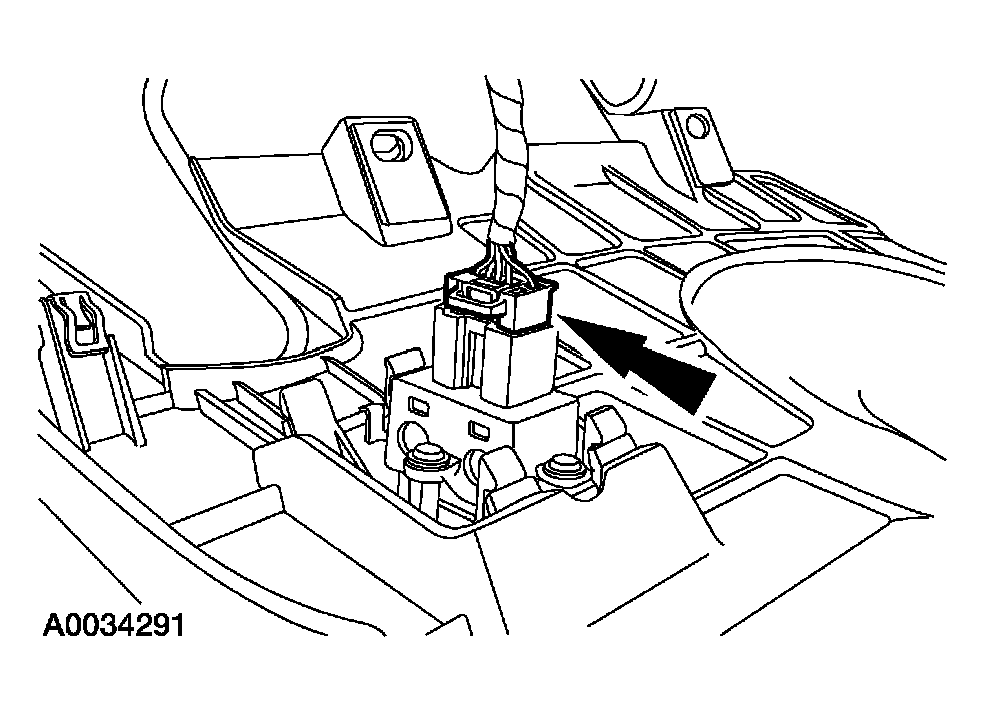

Fig 1: Removing PRNDL Indicator Bulb From Electrical Connector
Courtesy of FORD MOTOR CO.
Rotate the shifter bezel.

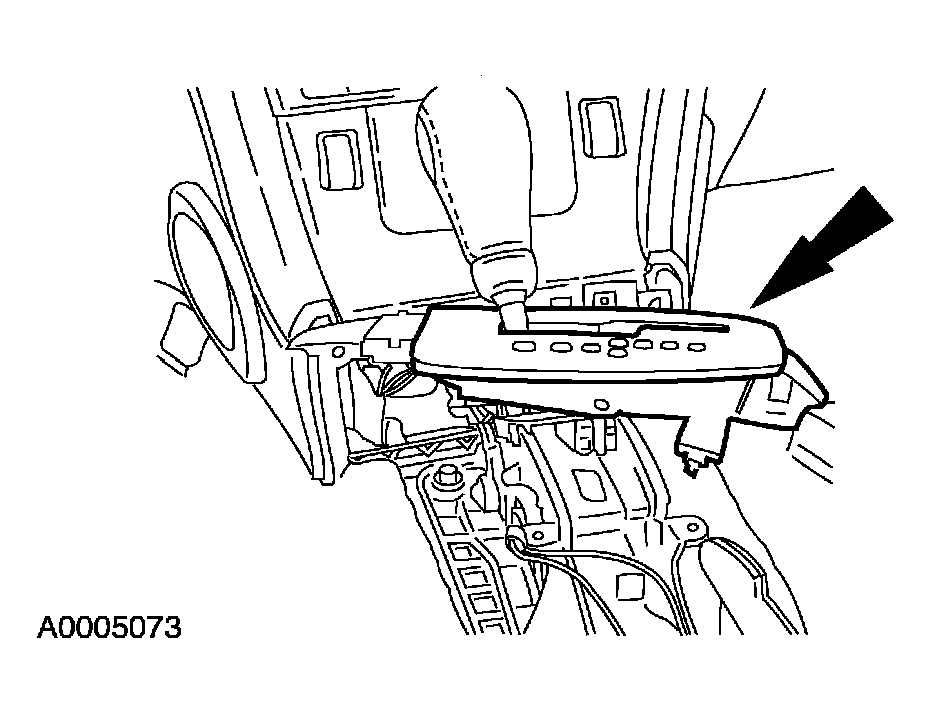

Fig 2: Identifying Shifter Bezel
Courtesy of FORD MOTOR CO.
Disconnect the cable from the lever.
1. Remove the shift interlock cable from the bracket.
2. Disconnect the cable from the lever.

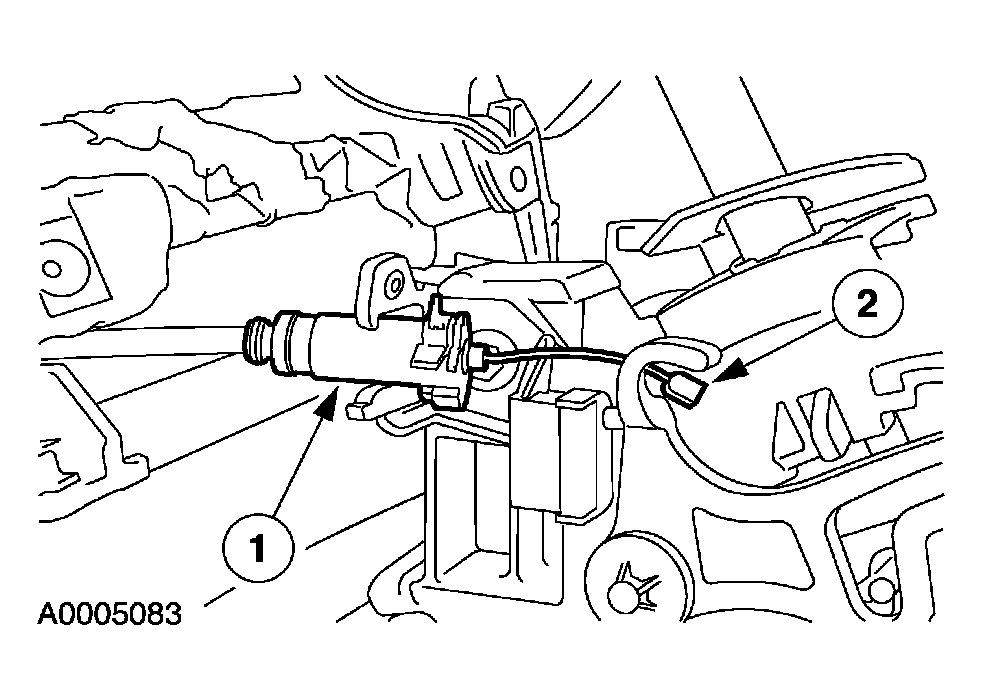

Fig 3: Locating Cable At Lever
Courtesy of FORD MOTOR CO.
Remove the lower steering column cover push pins.

Fig 4: Locating Lower Steering Column Cover Push Pins
Courtesy of FORD MOTOR CO.
Remove the instrument panel steering column cover.

Fig 5: Removing Instrument Panel Steering Column Cover
Courtesy of FORD MOTOR CO.
Disconnect the electrical connector.

Fig 6: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
Position the hood release cable and bracket aside.
1. Remove the screws.
2. Position the hood release cable and bracket aside.

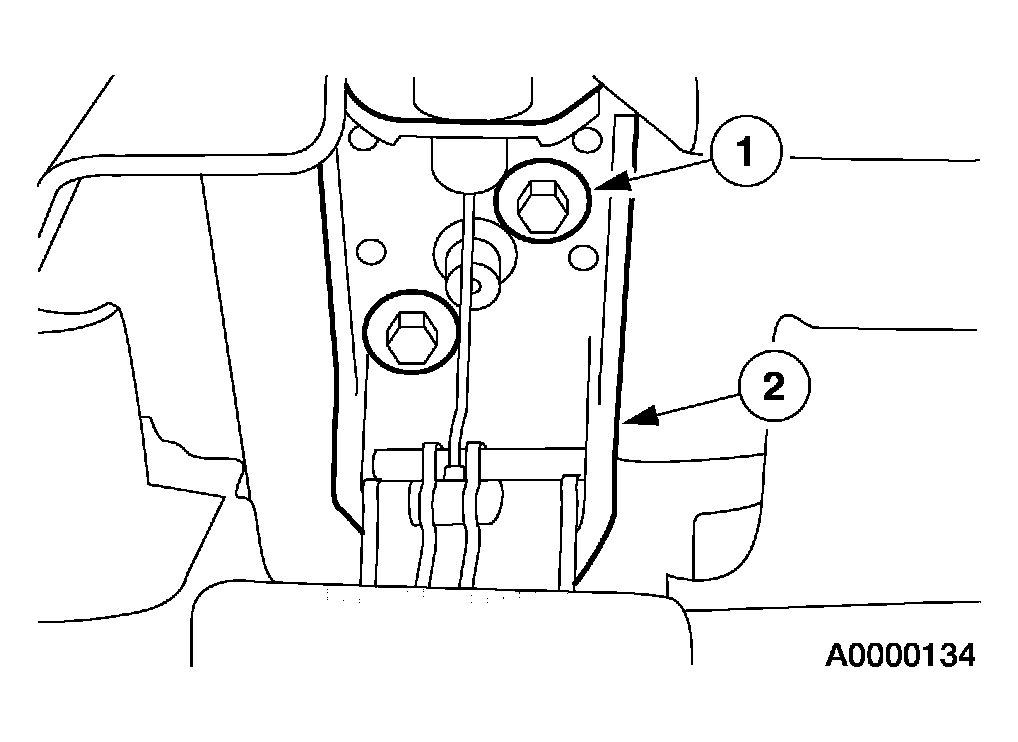

Fig 7: Identifying Hood Release Cable And Bracket
Courtesy of FORD MOTOR CO.
Remove the lower reinforcement panel.

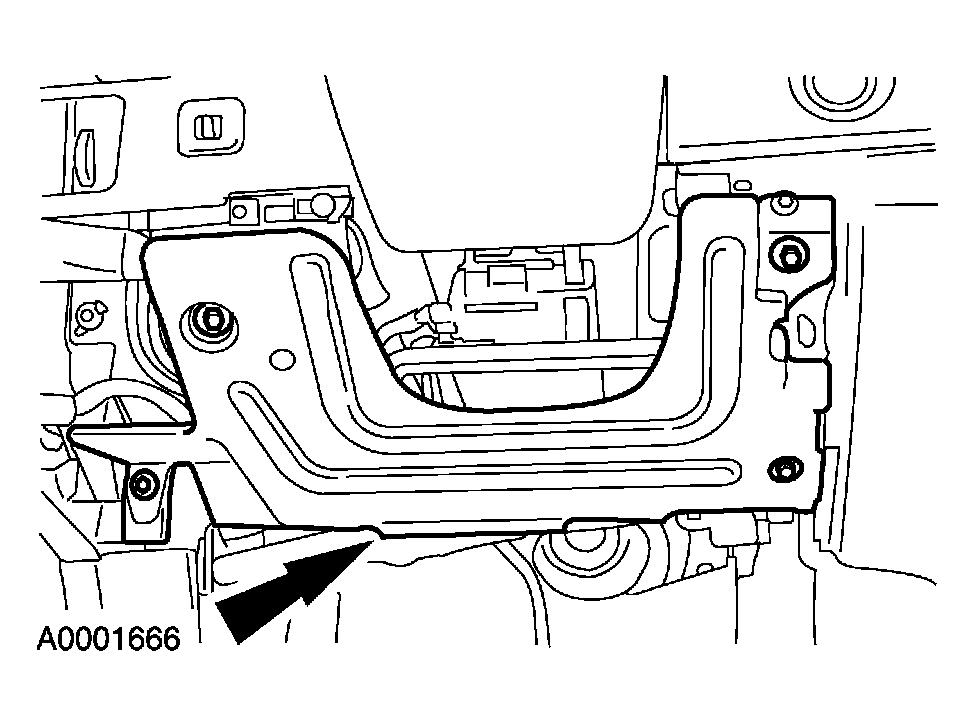

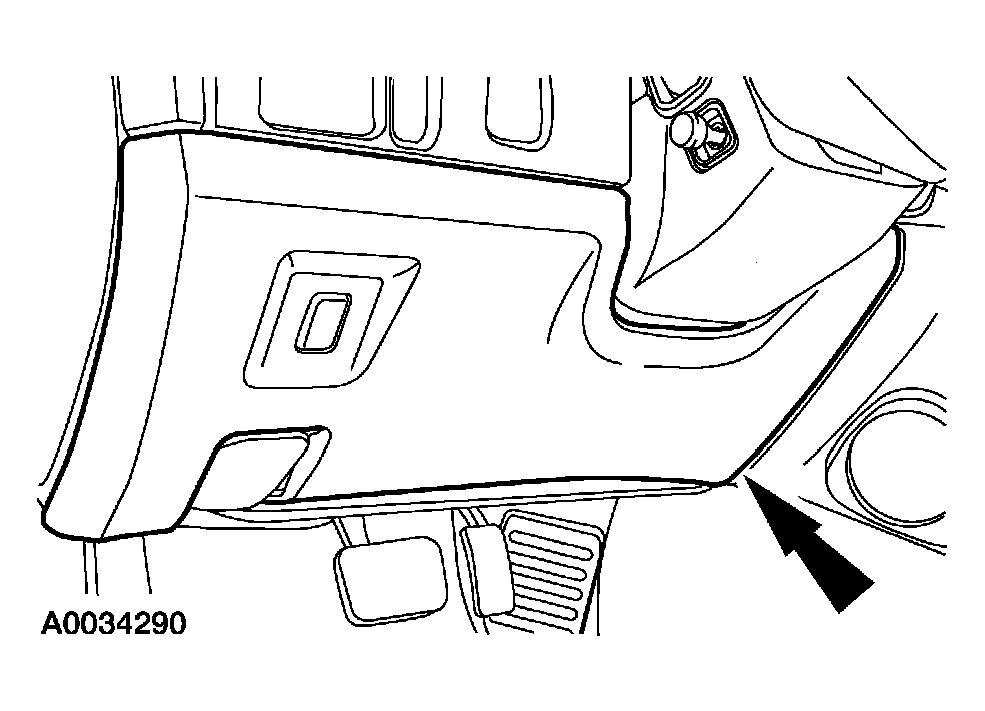

Fig 8: Identifying Lower Reinforcement Panel
Courtesy of FORD MOTOR CO.
Remove the inner instrument panel finish panel.

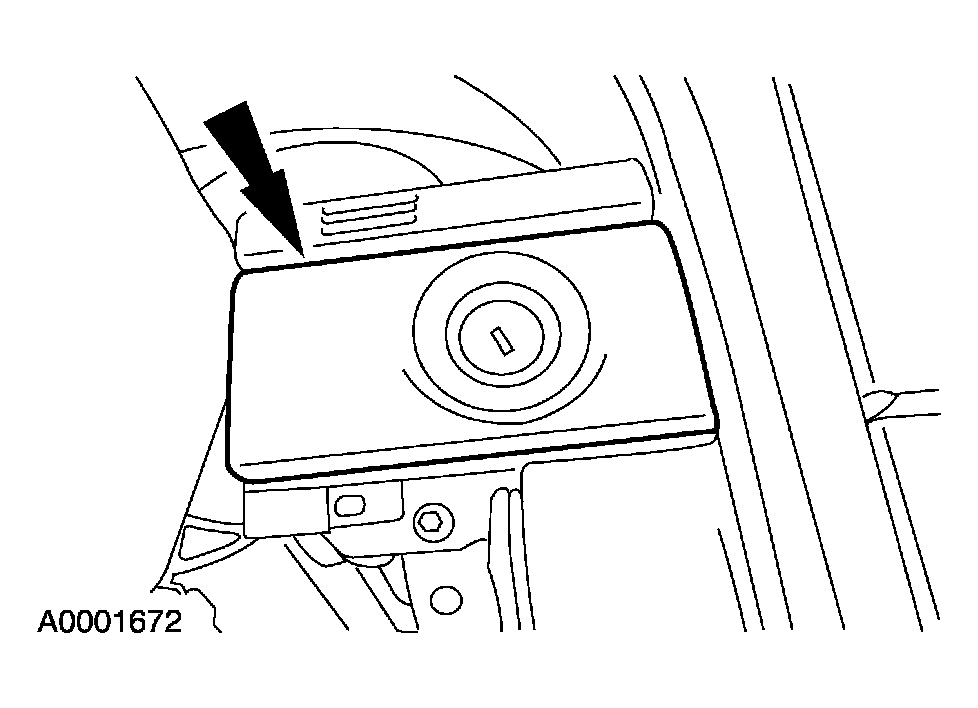

Fig 9: Identifying Inner Instrument Panel Finish Panel
Courtesy of FORD MOTOR CO.
Remove the outer instrument panel finish panel.

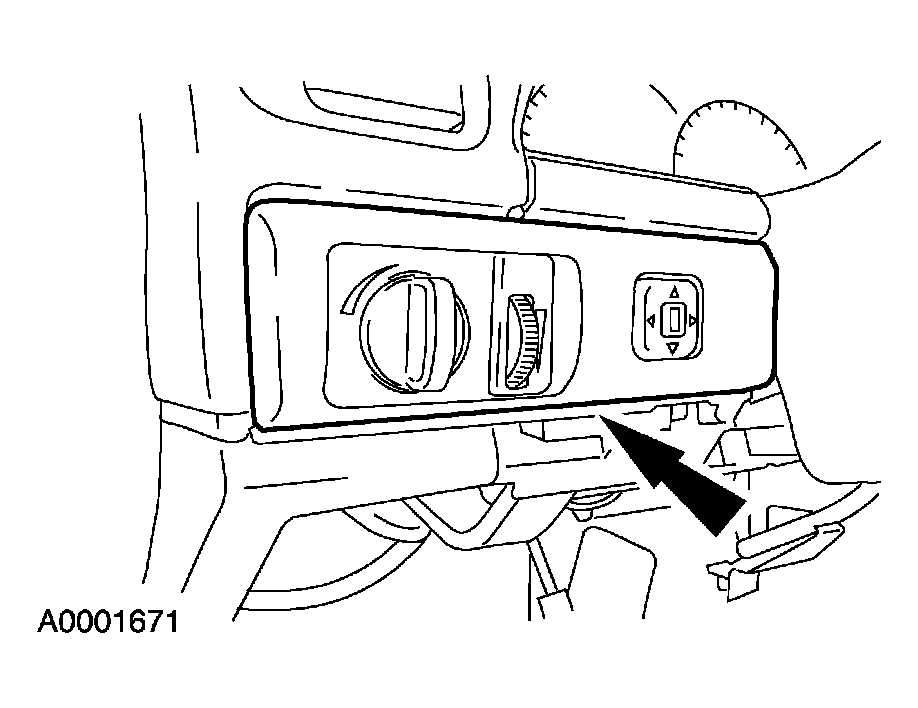

Fig 10: Identifying Outer Instrument Panel Finish Panel
Courtesy of FORD MOTOR CO.
Disconnect the power mirror switch.

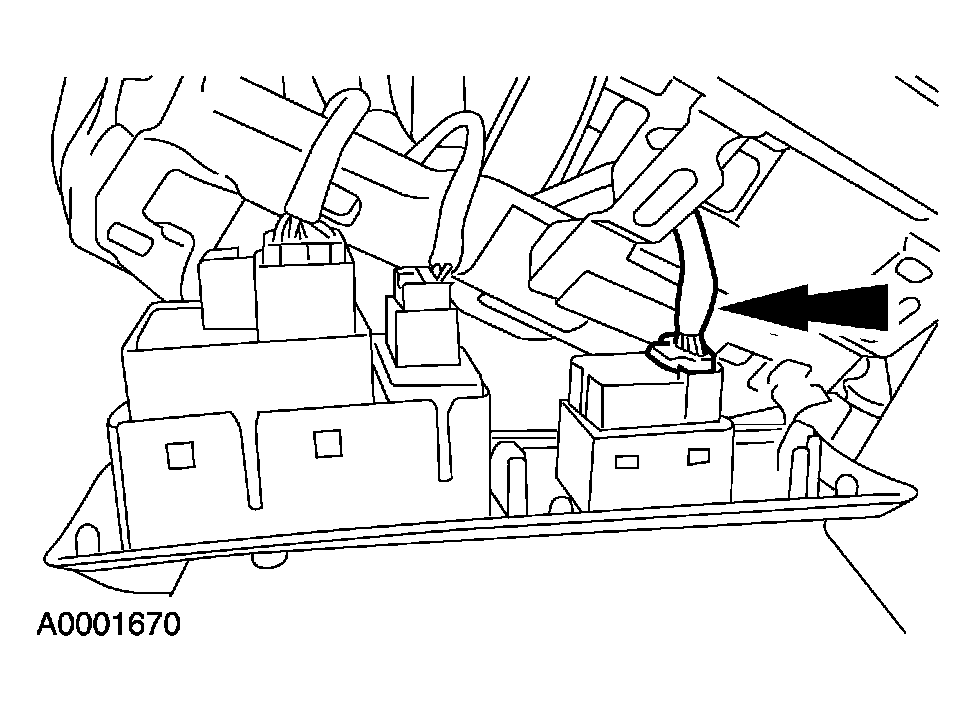

Fig 11: Identifying Power Mirror Switch Connector
Courtesy of FORD MOTOR CO.
Remove the inner trim support panel.

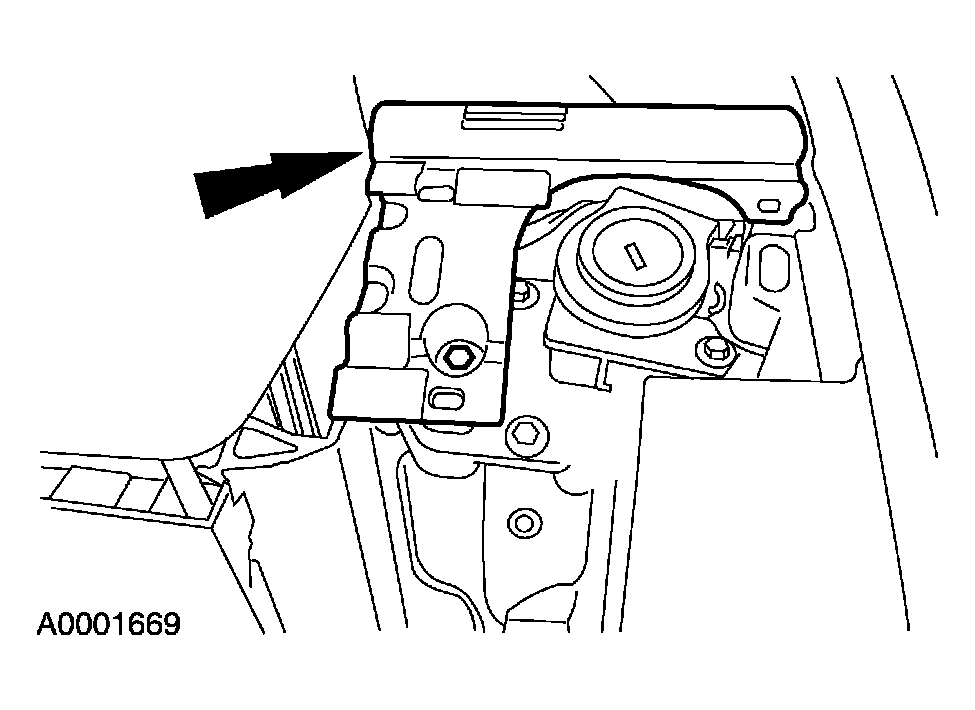

Fig 12: Locating Inner Trim Support Panel
Courtesy of FORD MOTOR CO.
Remove the ignition switch.
- Remove the screws.
- Remove the ignition switch.

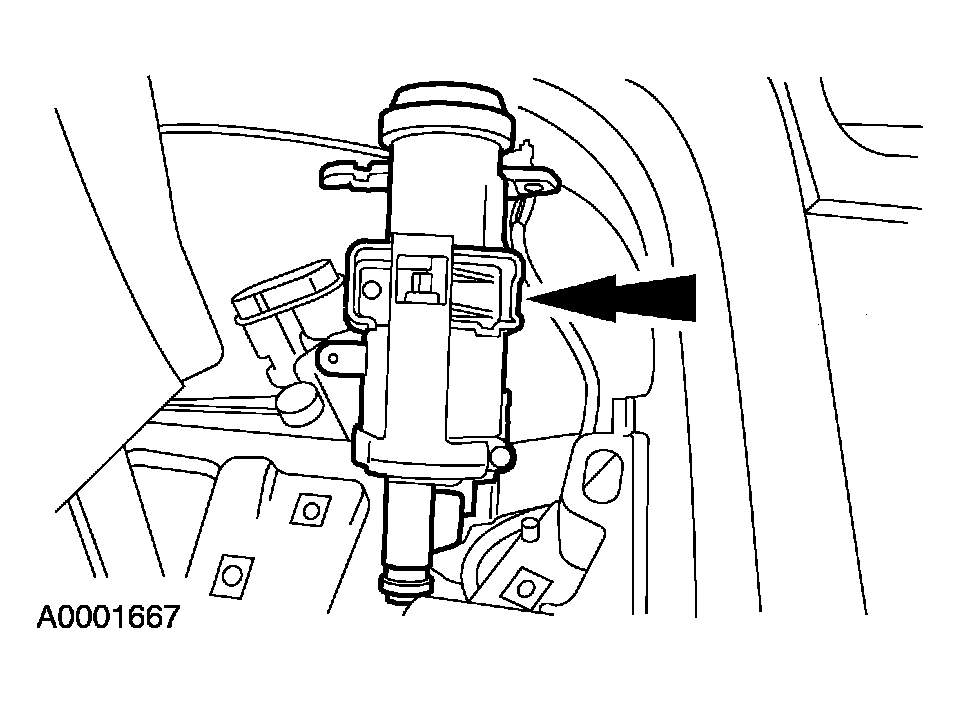

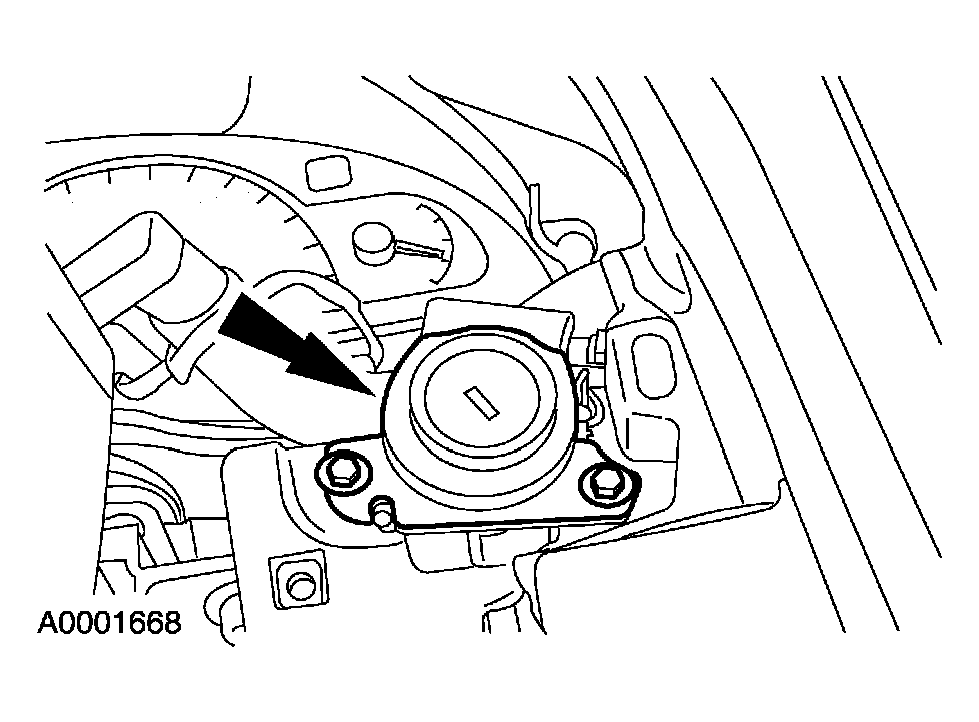

Fig 13: Locating Ignition Switch Mounting Screws
Courtesy of FORD MOTOR CO.
Remove two screws for the shift lock actuator cable.
- To install, tighten to 9 Nm (80 lb-in).
Fig 14: Identifying Shift Lock Actuator
Courtesy of FORD MOTOR CO.
Disconnect the electrical connector from the brake shift interlock actuator cable.

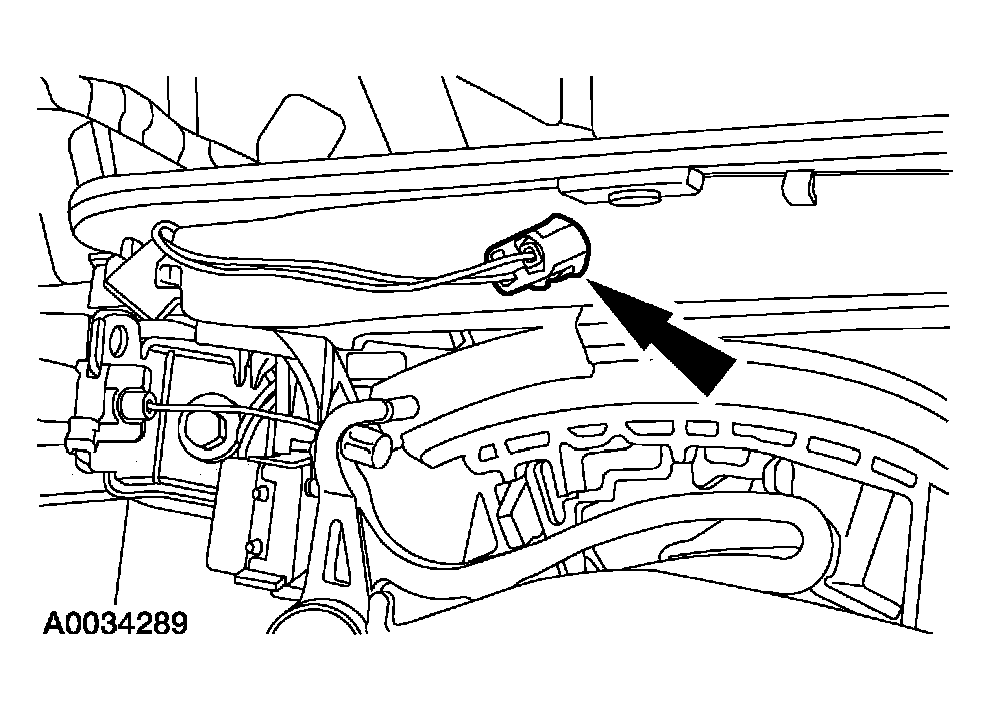

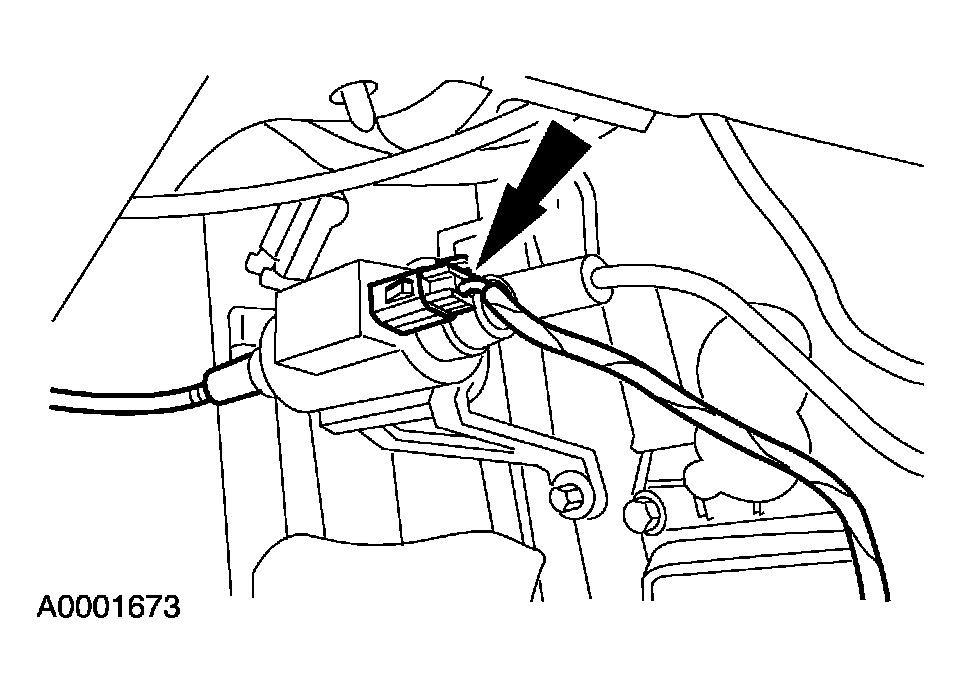

Fig 15: Locating Electrical Connector At Brake Shift Interlock Actuator Cable
Courtesy of FORD MOTOR CO.
Remove the cable from the bracket and remove the cable.

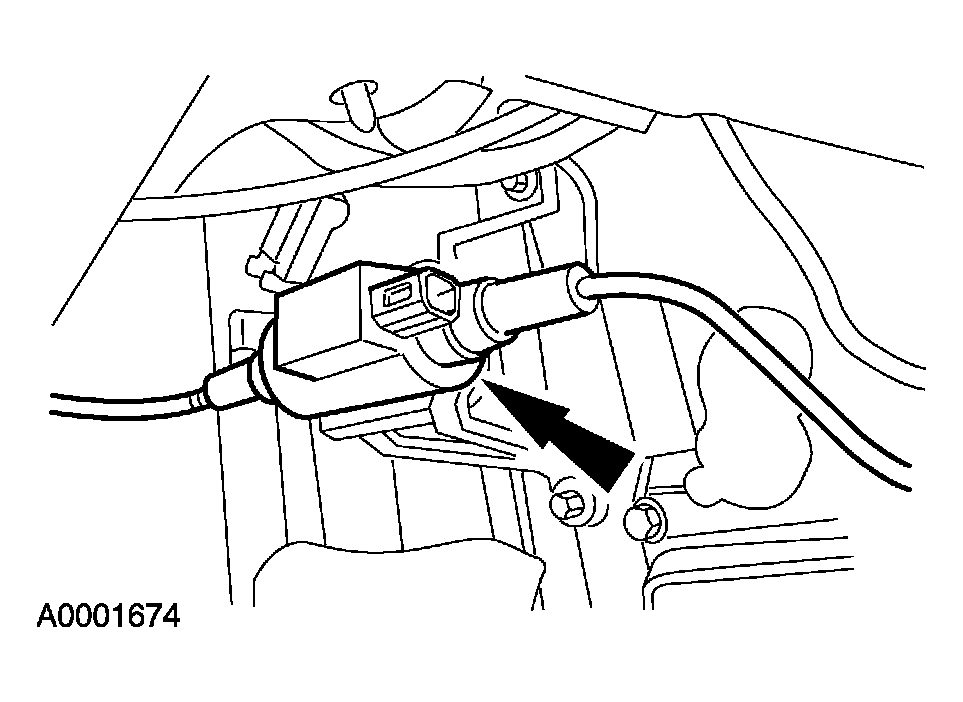

Fig 16: Locating Cable Assembly
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
