Extension Housing Seal: Removal

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the driveshaft. For additional information, refer to DRIVESHAFT .
Remove and discard the nut.

Fig 1: Locating Driveshaft Nut
Courtesy of FORD MOTOR CO.
Using the special tool, remove the output shaft flange.

Fig 2: Removing Output Shaft Flange
Courtesy of FORD MOTOR CO.

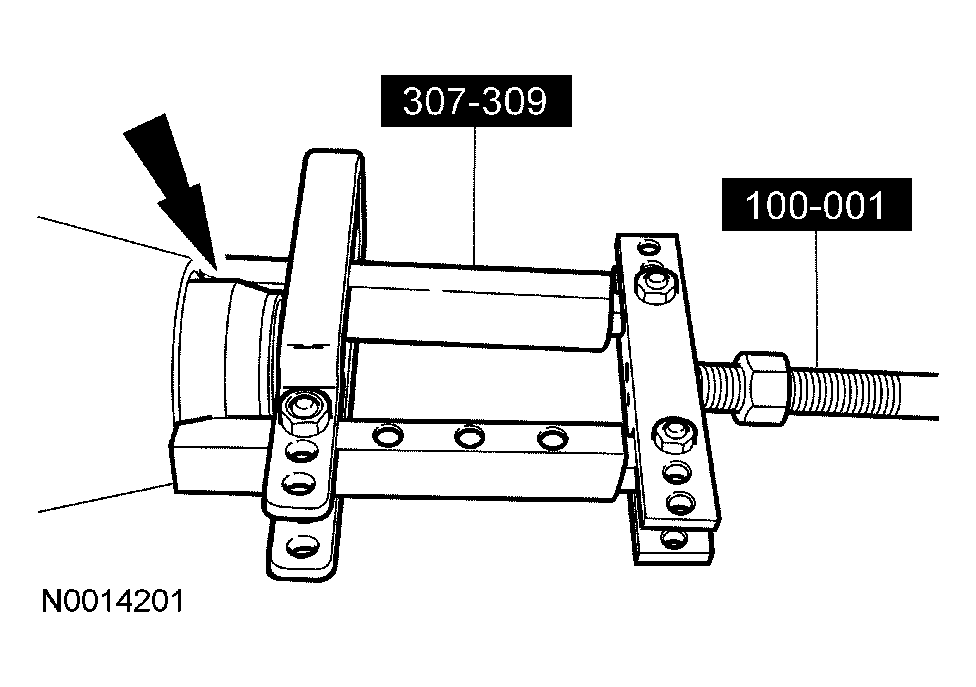

Using the special tools, remove and discard the extension housing seal.

Fig 3: Removing Extension Housing Seal

Courtesy of FORD MOTOR CO.
