Overdrive Brake and Coast Clutch Drum Assembly: Notes
WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
OVERDRIVE BRAKE AND COAST CLUTCH DRUM ASSEMBLY SPECIAL TOOLS
| Compressor, Clutch Spring 307-015 (T65L-77515-A) | |
| Protector, Piston Seal 307-049 (T74P-77404-A) |
OVERDRIVE BRAKE AND COAST CLUTCH DRUM ASSEMBLY MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM | MERCON® V |

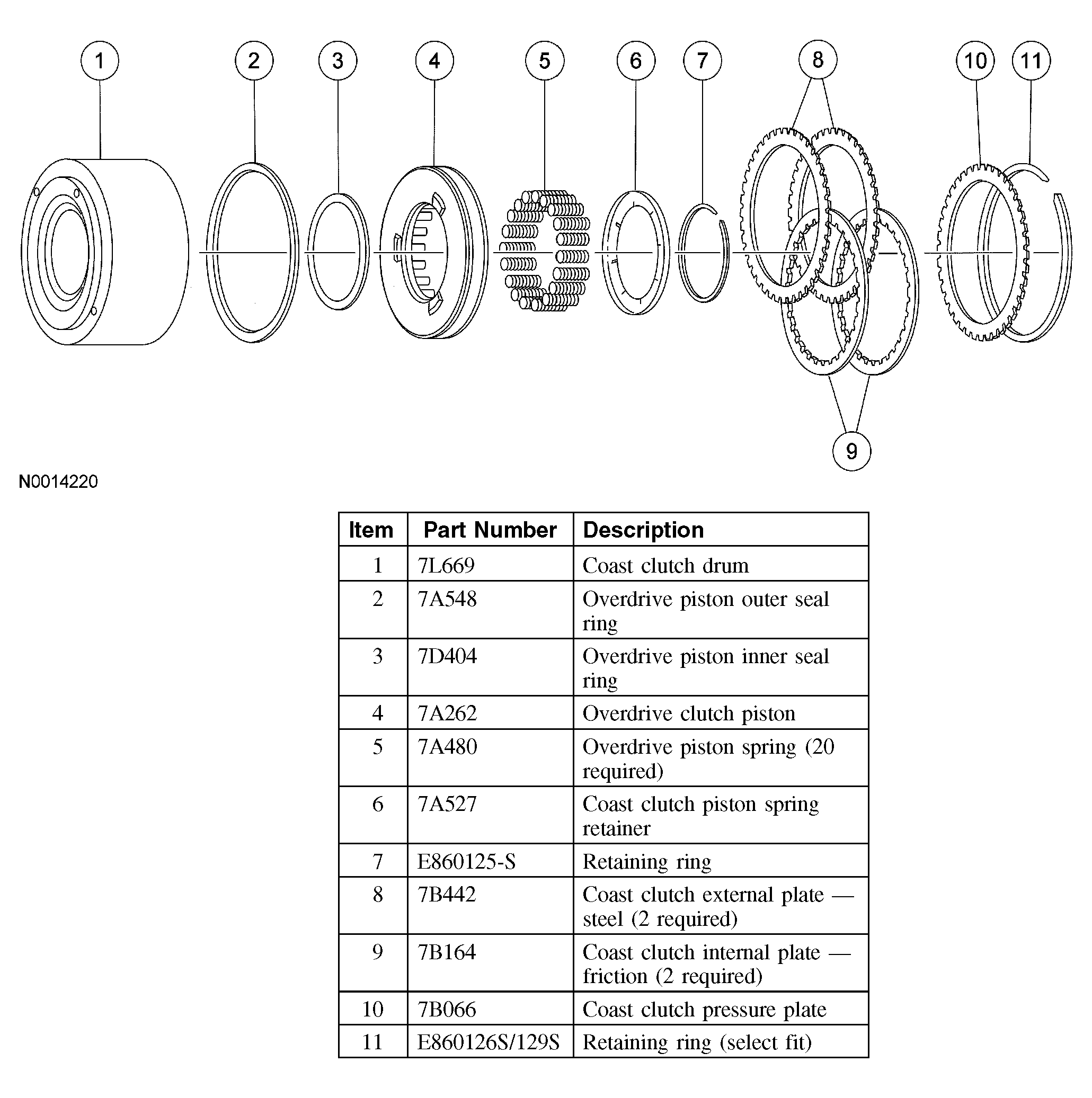

Overdrive Brake and Coast Clutch Drum Assembly
