Intake Manifold Tuning (IMT) Valve - 3.0L (4V): Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

INTAKE MANIFOLD TUNING VALVE MATERIAL SPECIFICATIONS - 3.0L (4V)

Item	Specification
SAE 5W-20 Premium Synthetic Blend XO-5W20-QSP or equivalent	WSS-M2C930-A

Fig 1: Identifying Intake Manifold Tuning Valve - 3.0L (4V)

Courtesy of FORD MOTOR CO.

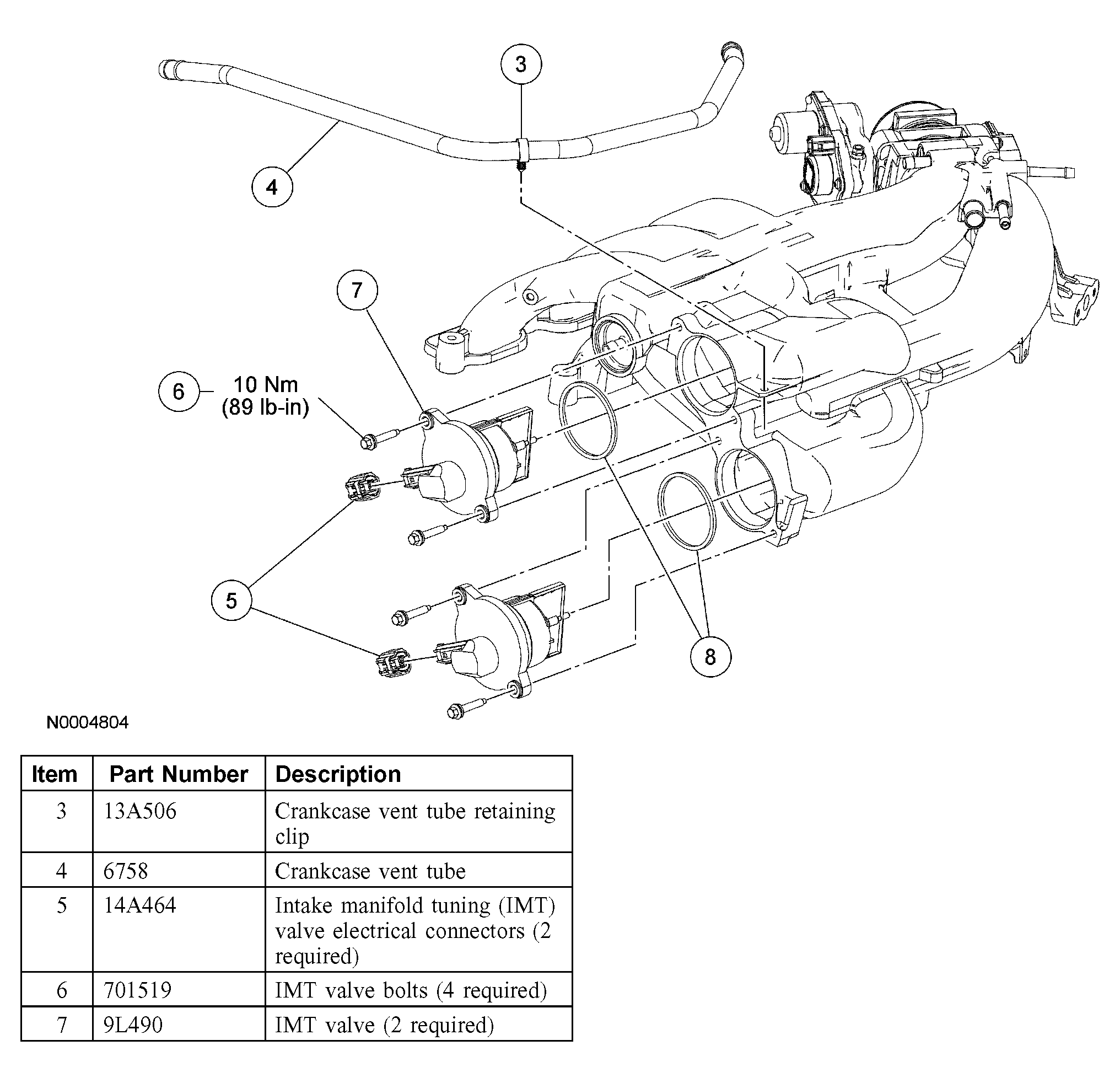

Fig 2: Exploded View Of Intake Manifold Tuning Valve - 3.0L (4V)

Courtesy of FORD MOTOR CO.
