Section 1272 (Electronic Engine Controls)
>>
Removal And Installation
>>
Fuel Pressure Sensor - 3.0L (4V)
>>
Material
Fuel Pressure Sensor - 3.0L (4V): Material
WARNING:
This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
FUEL PRESSURE SENSOR MATERIAL SPECIFICATIONS - 3.0L (4V)
Item
Specification
SAE 5W-20 Premium Synthetic Blend XO-5W20-QSP or equivalent
WSS-M2C930-A

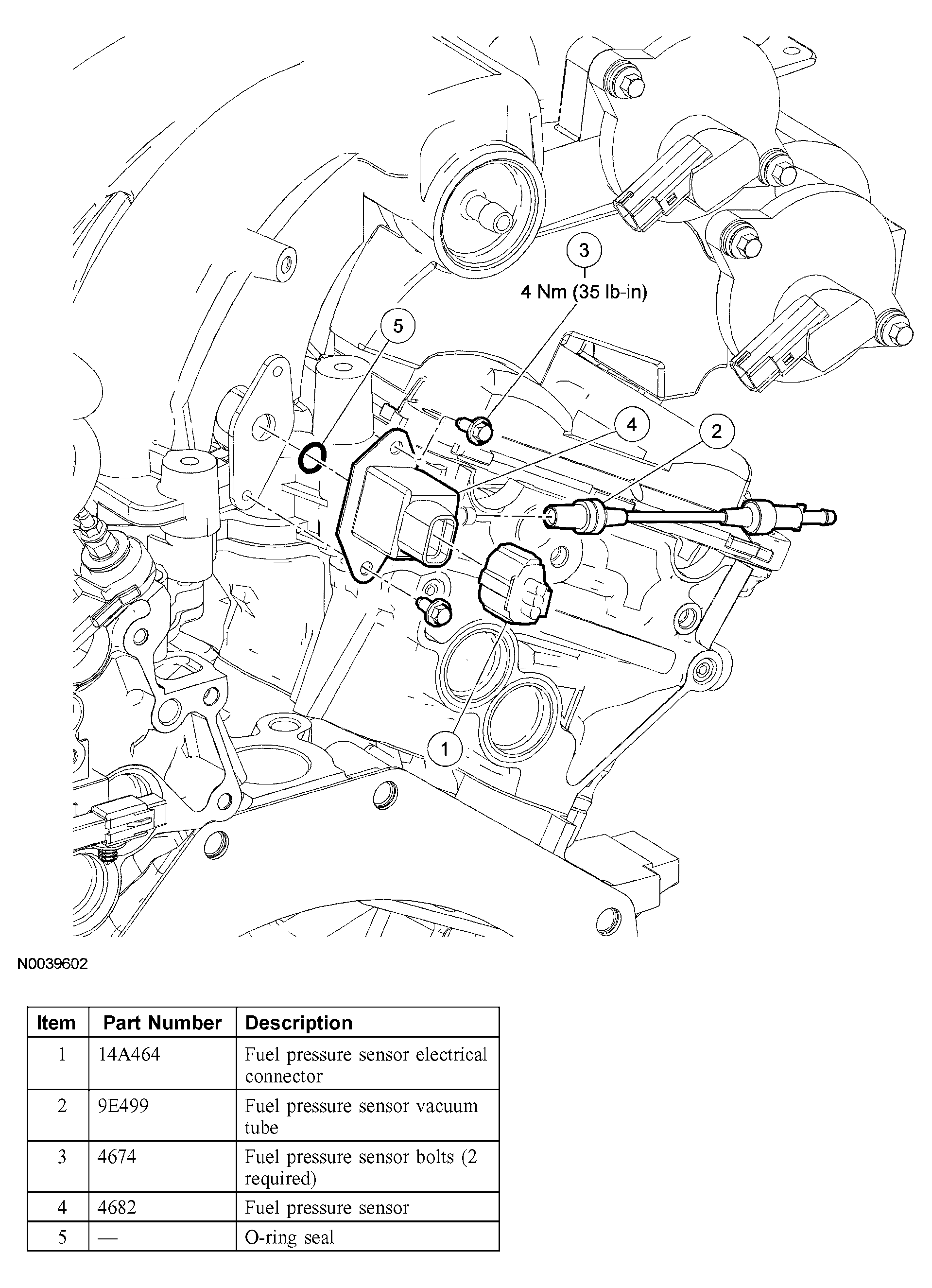

Fig 1: Exploded View Of Fuel Pressure Sensor - 3.0L (4V)
Courtesy of FORD MOTOR CO.
