Camshaft Position (CMP) Sensor - 3.0L (4V): Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAMSHAFT POSITION SENSOR MATERIAL SPECIFICATIONS - 3.0L (4V)

Item	Specification
SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP	WSS-M2C930-A

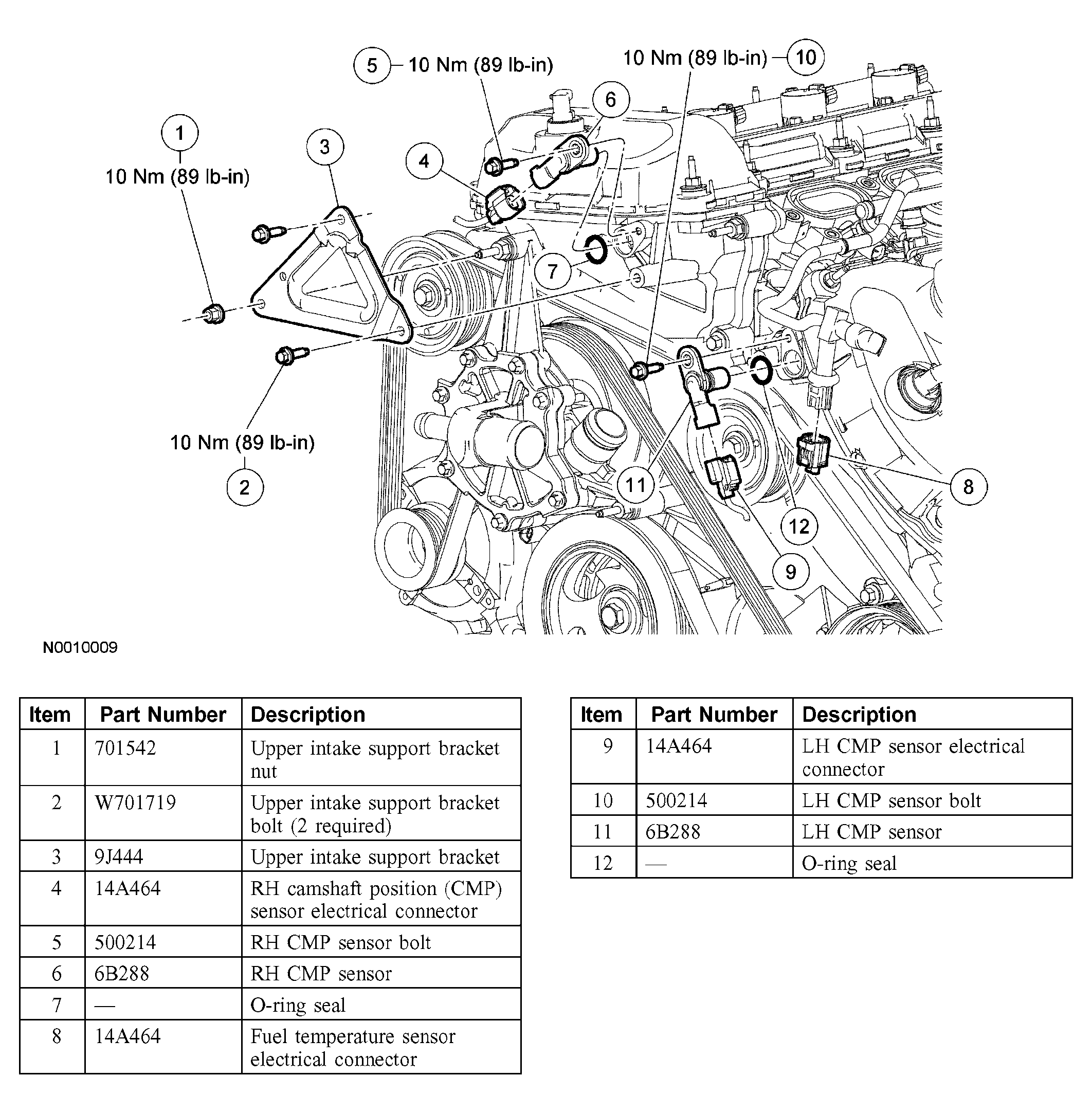

Fig 1: Identifying Camshaft Position Sensor Component- 3.0L (4V)

Courtesy of FORD MOTOR CO.
