Engine Ignition Components - Exploded View

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

LH Side

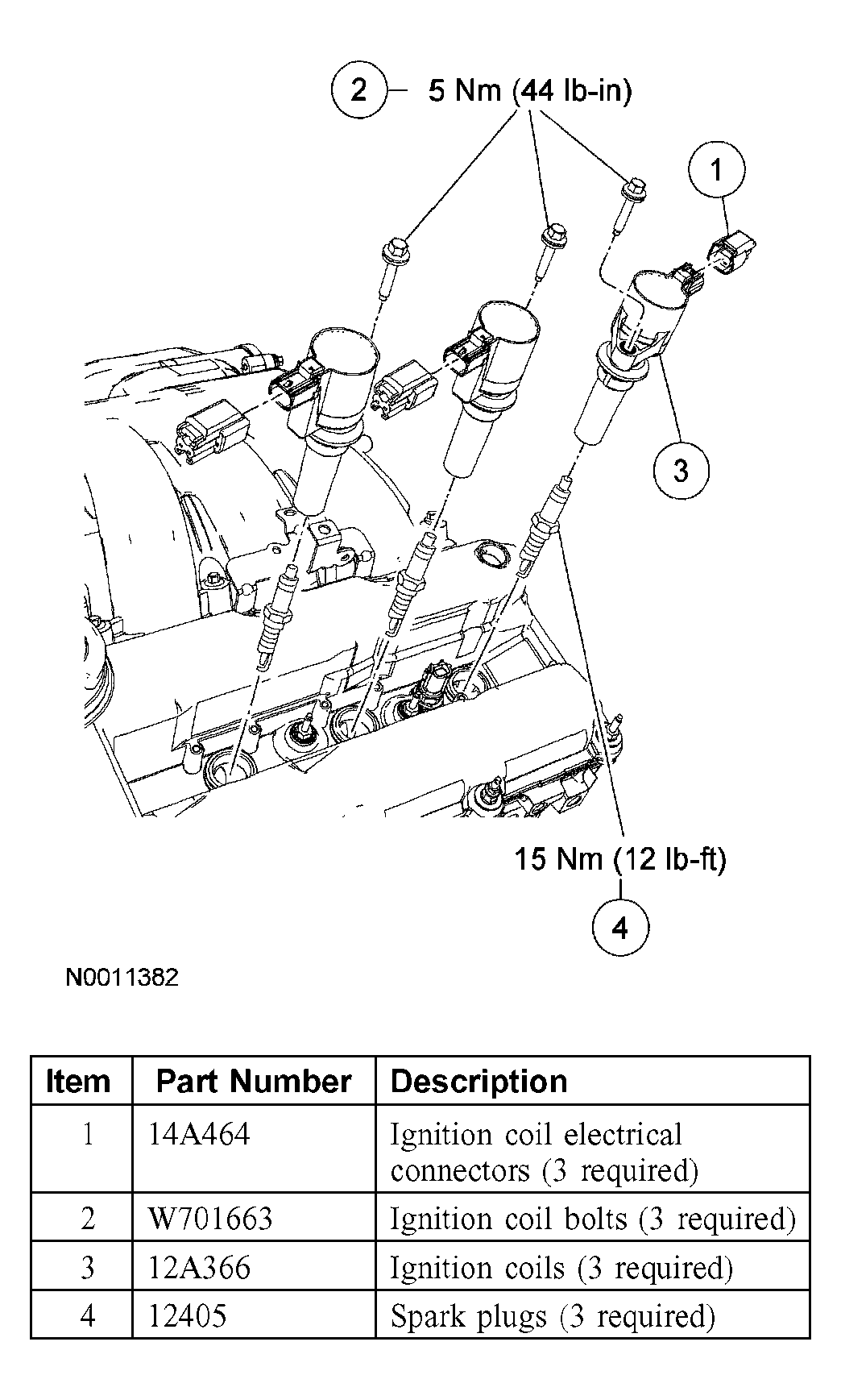

Fig 1: Exploded View Of Engine Ignition Components - LH Side

Courtesy of FORD MOTOR CO.

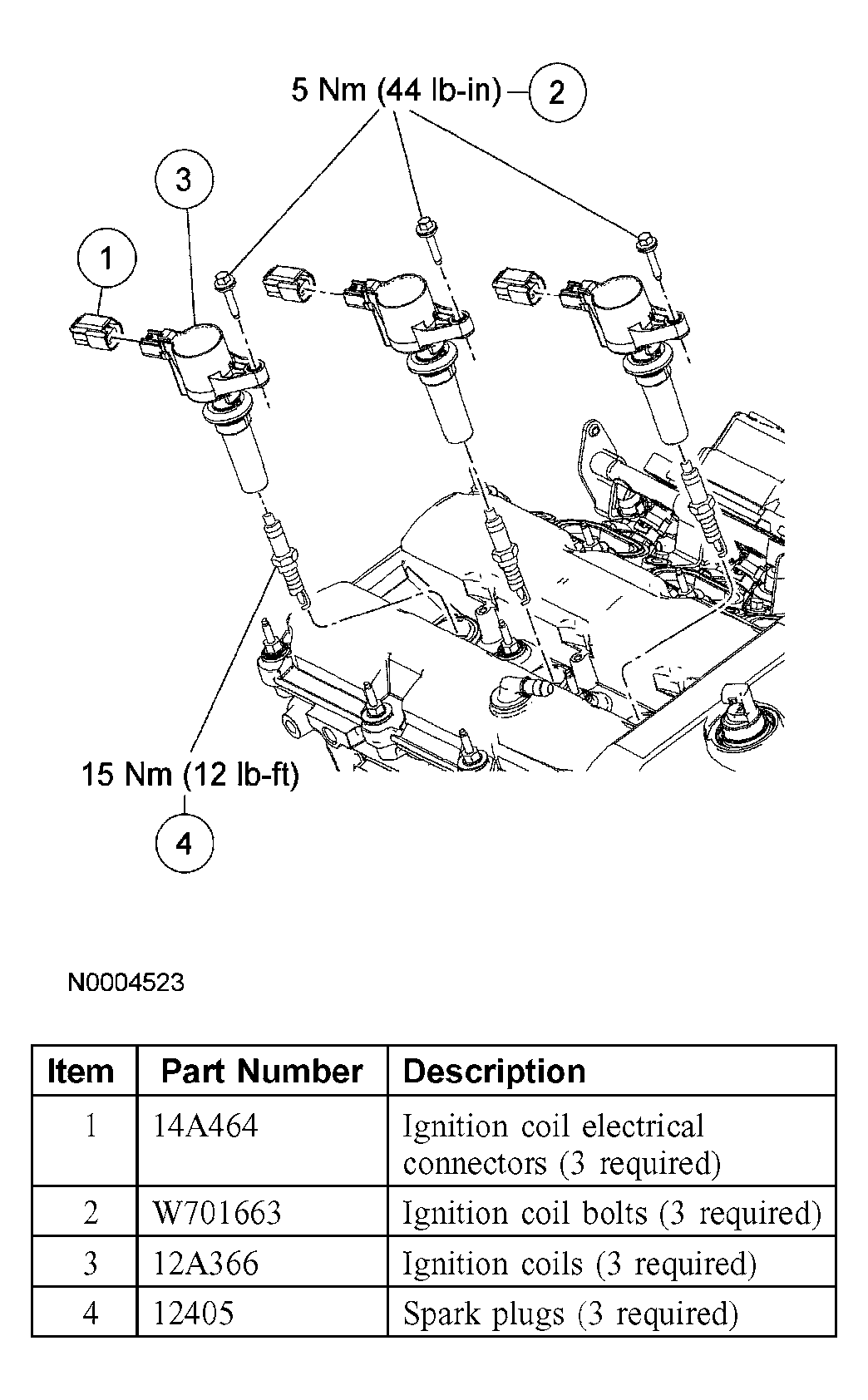

Fig 2: Exploded View Of Engine Ignition Components - RH Side

Courtesy of FORD MOTOR CO.

For additional information, refer to the procedures in this article .
