Starter Motor - 3.0L (4V): Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

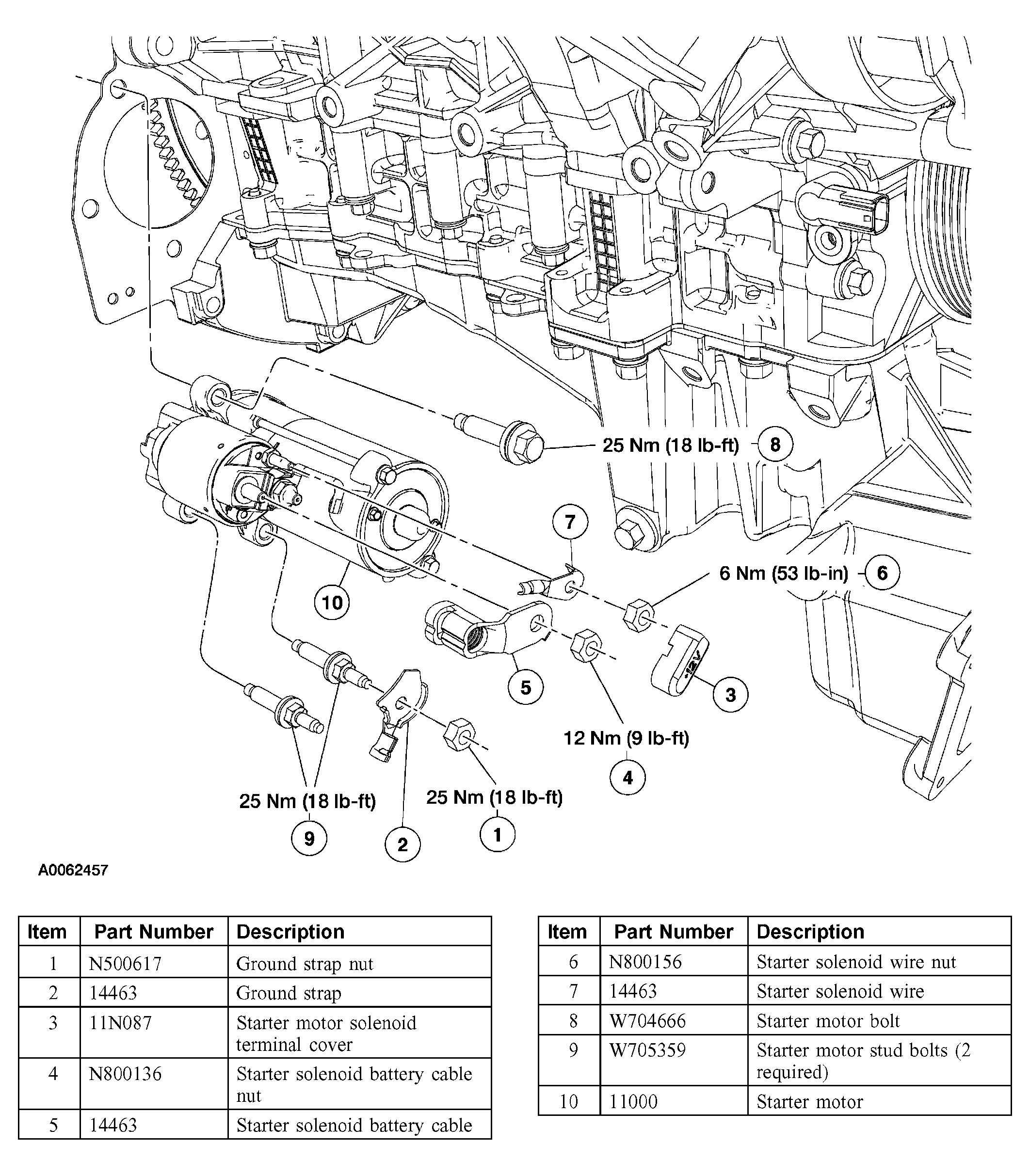

Fig 1: Exploded View Of Starter Motor - 3.0L (4V)

Courtesy of FORD MOTOR CO.
