Fuel Rail and Fuel Injector - Exploded View

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

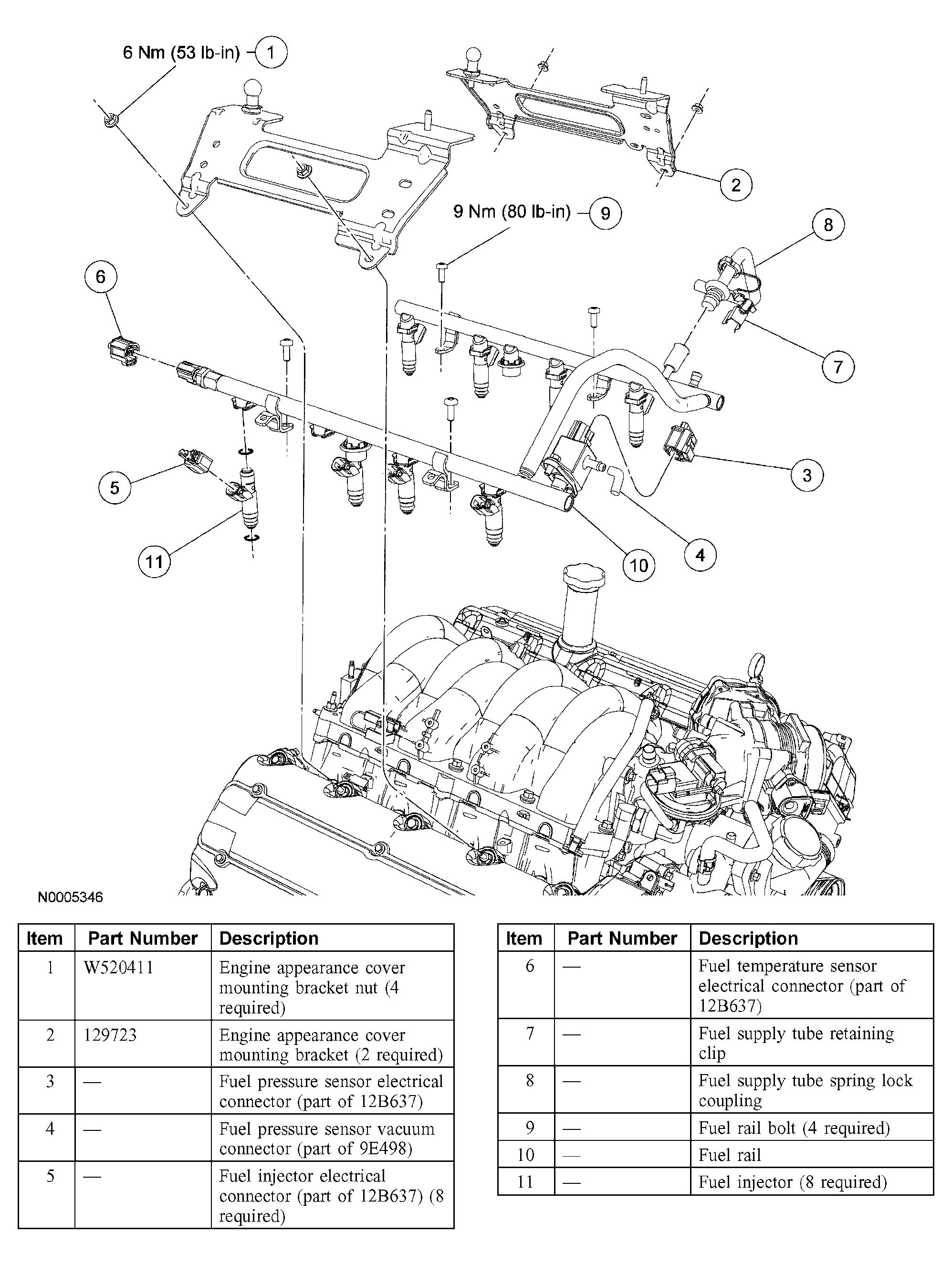

Fig 1: Exploded View Of Fuel Rail And Fuel Injector

Courtesy of FORD MOTOR CO.

For additional information, refer to the procedures in this article.
