Cooling System Components - Exploded View, Radiator, Cooling Fan Motor and Shroud

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

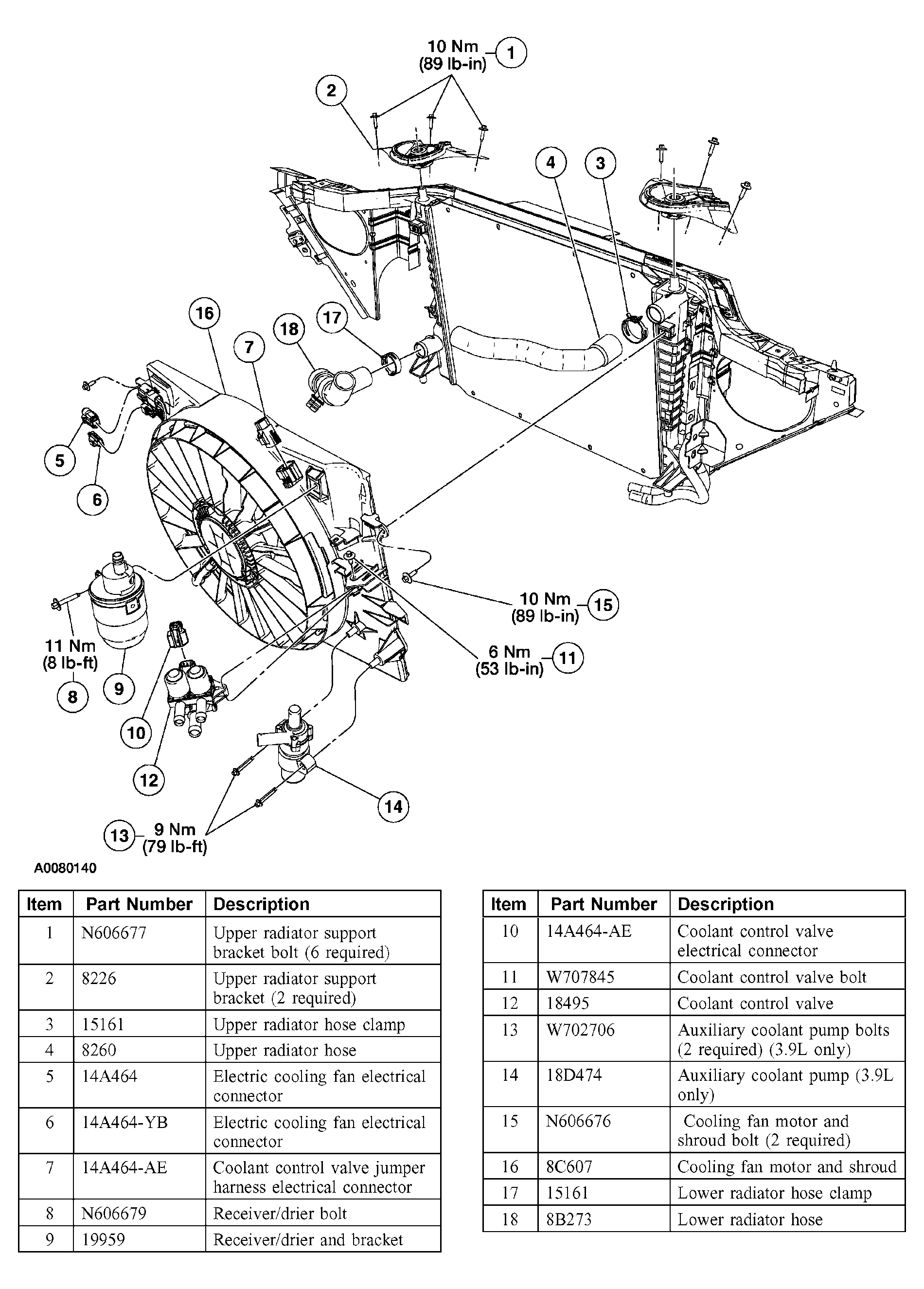

Fig 1: Identifying Components Of Radiator, Cooling Fan Motor And Shroud

Courtesy of FORD MOTOR CO.

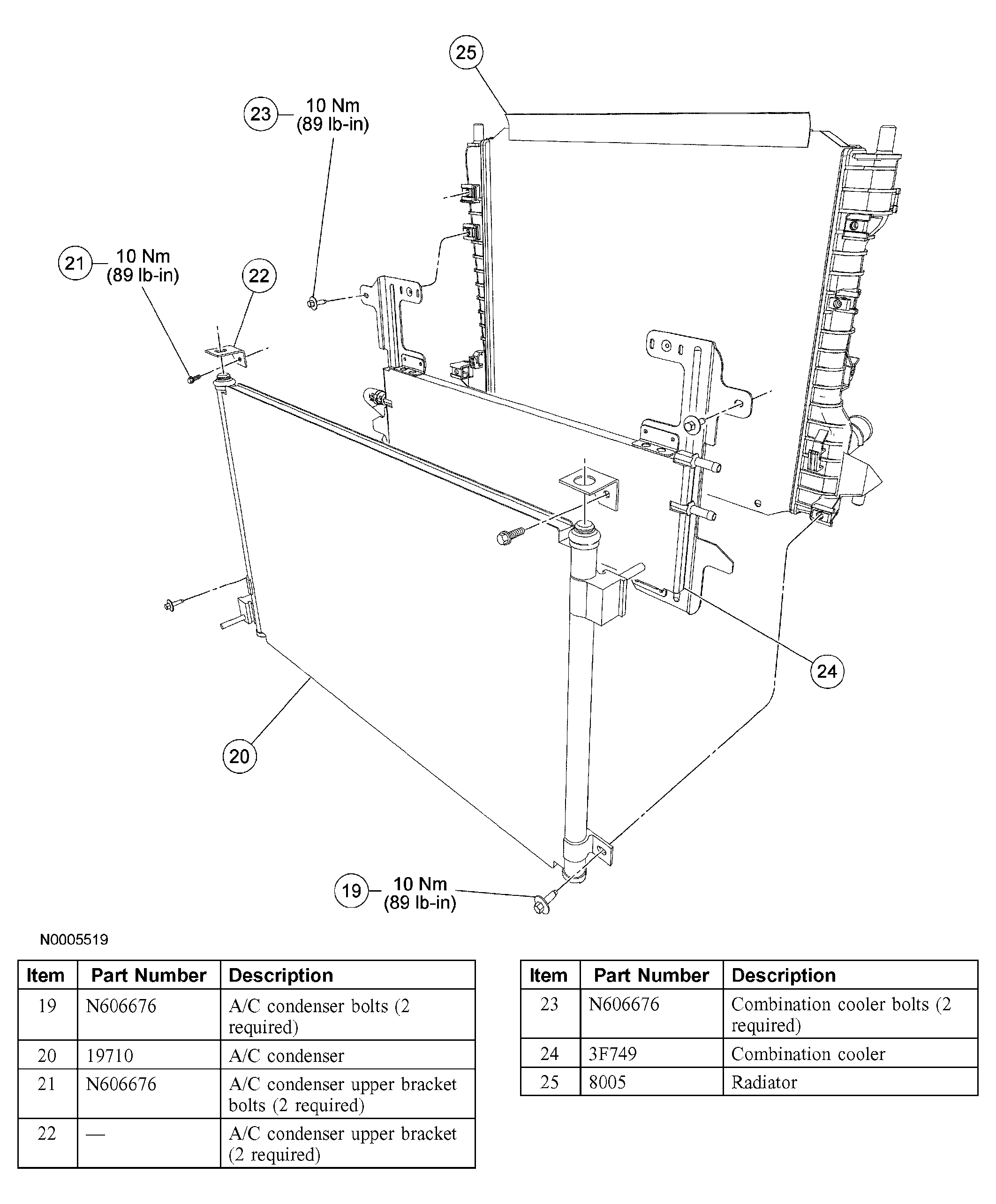

Fig 2: Identifying Components Of Radiator

Courtesy of FORD MOTOR CO.

For additional information, refer to the procedures in this article.
