Coolant Flow 3.0L

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

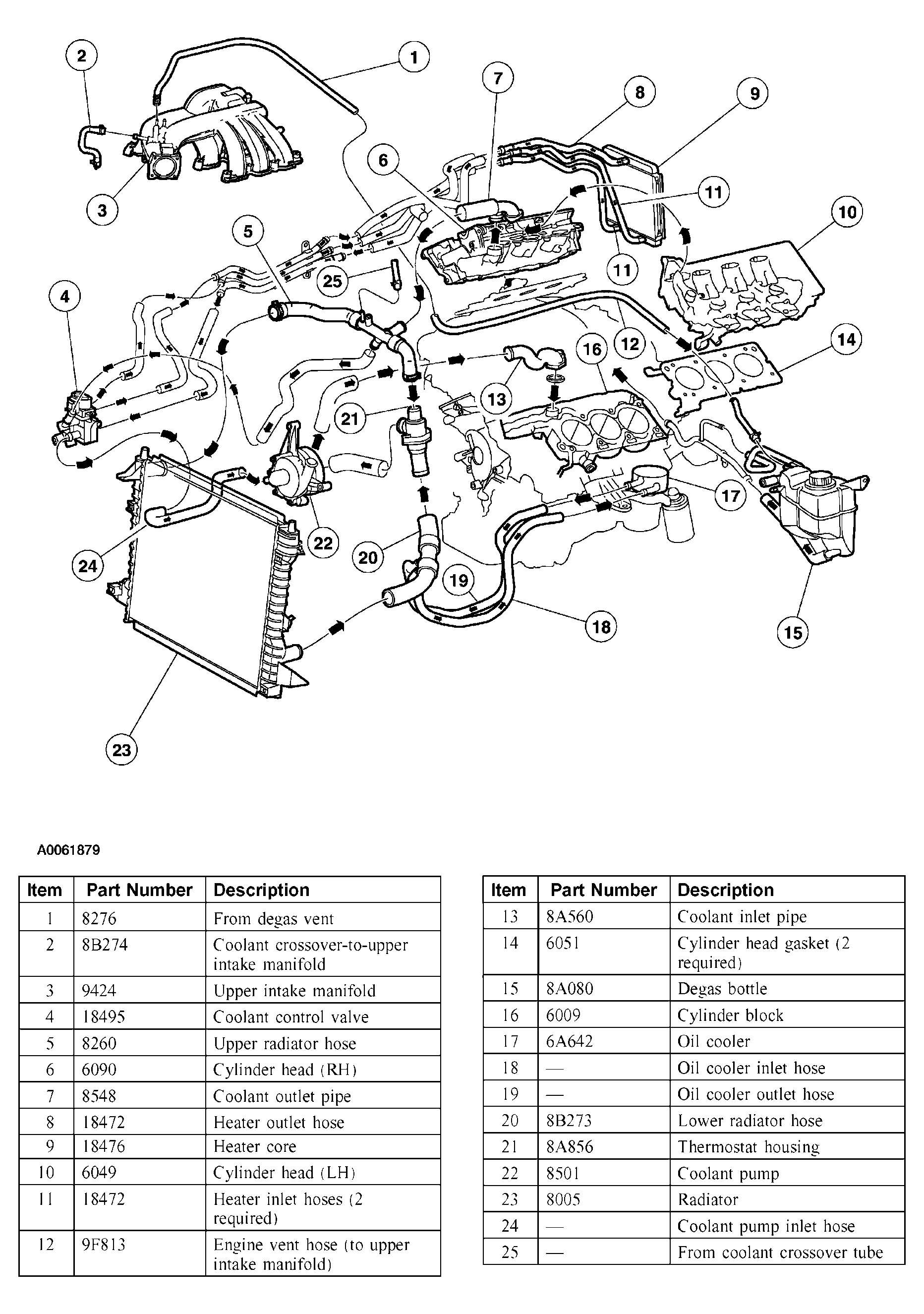

Fig 1: Identifying Components Of Cooling System 3.0L
G03996990Courtesy of FORD MOTOR CO.
