Removal and Installation

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

    Both sides

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
    3. CAUTION: The engine appearance cover is equipped with a noise suppressor. If the noise suppressor becomes separated from the engine appearance cover it must be positioned on the intake manifold prior to installing the engine appearance cover.
    Fig 1: Identifying Engine Appearance Cover/Noise Suppressor
    G03996267Courtesy of FORD MOTOR CO.
  3. Remove the engine appearance cover and the noise suppressor (if detached).
  4. Remove the air cleaner outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
  5. Remove the upper radiator sight shield.
  6. Install the special tools and support the engine.

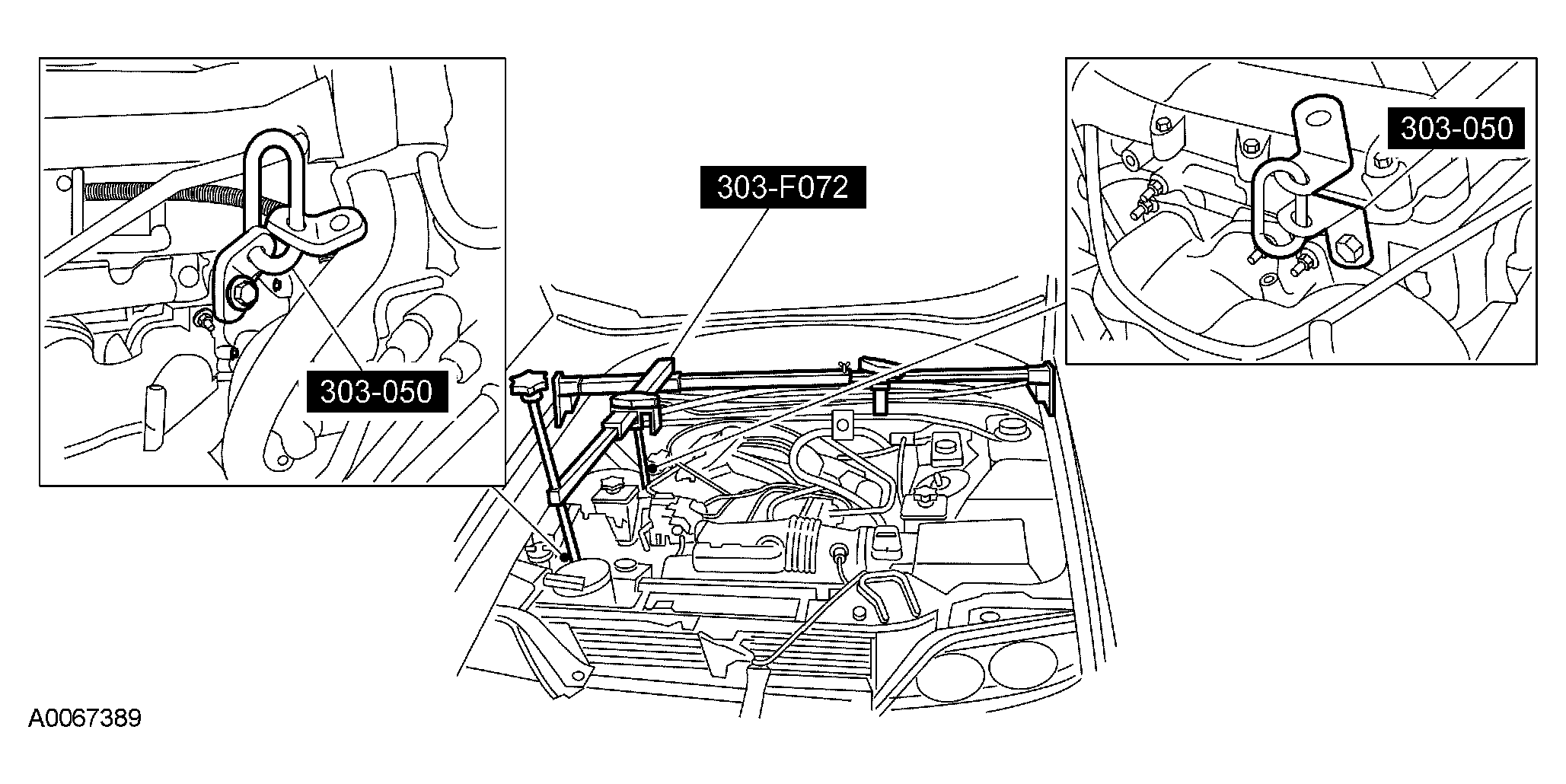

    Fig 2: Installing Special Tools
    G03995862Courtesy of FORD MOTOR CO.

    7. RH side

  7. Remove the RH lower splash shield.
  8. Remove the nut and disconnect the transmission cooling tube support bracket from the engine mount bracket.
    • To install, tighten to 10 Nm (89 lb-in).

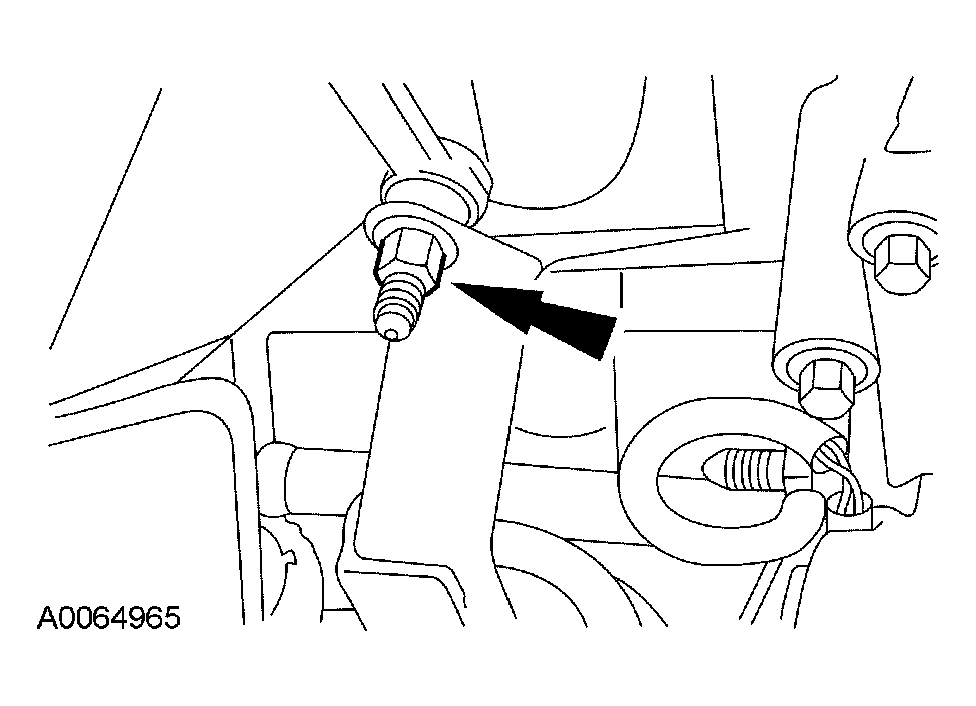

    Fig 3: Removing Cooling Tube Support Bracket Nut
    G03996424Courtesy of FORD MOTOR CO.
  9. Remove the RH engine mount upper nut.
    • To install, tighten to 50 Nm (37 lb-ft).
  10. Remove the 3 bolts, the stud bolt and the RH engine mount bracket.
    • To install, tighten to 46 Nm (34 lb-ft).
  11. Remove the lower nut and the RH engine mount.
    • To install, tighten to 55 Nm (41 lb-ft).

    12. LH side

  12. Remove the LH lower splash shield.
  13. Remove the LH engine mount upper nut.
    • To install, tighten to 50 Nm (37 lb-ft).
  14. Remove the nut and the power steering tube support bracket.
    • To install, tighten to 10 Nm (89 lb-in).
    Fig 4: Removing Power Steering Tube Support Bracket Nut
    G03996425Courtesy of FORD MOTOR CO.
  15. Remove the 3 bolts, stud bolt and LH engine mount bracket.
    • To install, tighten to 46 Nm (34 lb-ft).
  16. Remove the lower nut and the LH engine mount.
    • To install, tighten to 55 Nm (41 lb-ft).

    17. Both sides

  17. To install, reverse the removal procedure.
