Valve Train Components - Exploded View: Camshafts

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH shown, RH similar.

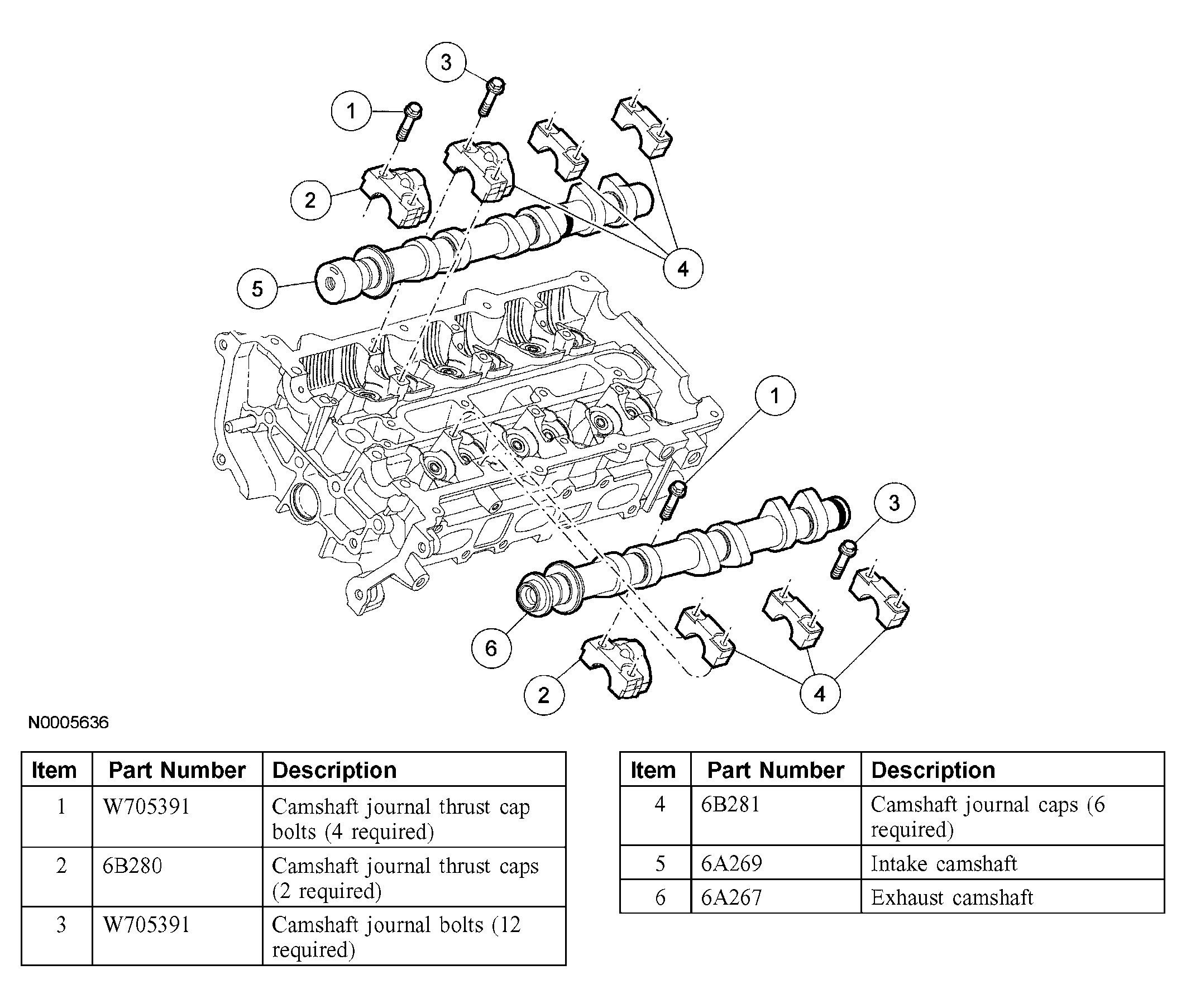

Fig 1: Exploded View Of Camshafts Components
G03995830Courtesy of FORD MOTOR CO.
