Oil Cooler: Installation

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the oil cooler and loosely install the bolt. Rotate the oil cooler clockwise until the locating pin hits the stop.
    • Tighten to 57 Nm (42 lb-ft).

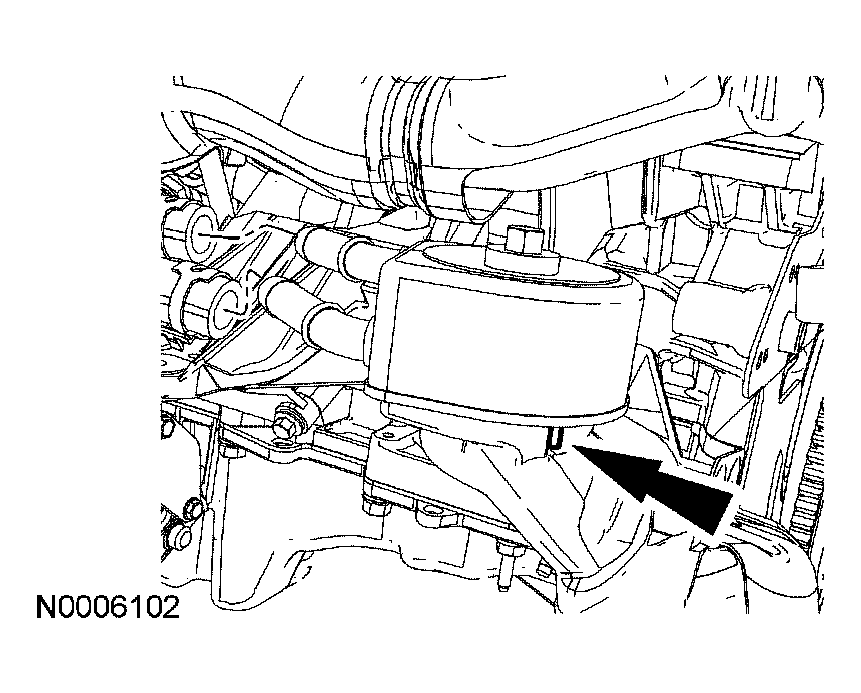

    Fig 1: Locating Pin Hits Stop
    G03995874Courtesy of FORD MOTOR CO.
  2. Connect the 2 coolant hoses.
  3. Install the LH exhaust manifold. For additional information, refer to EXHAUST MANIFOLD - LH  in this article .
  4. Fill and bleed the cooling system. For additional information, refer to ENGINE COOLING .
