Engine Lubrication Components - Exploded View, Oil Pan, Oil Pump, Oil Pump Screen and Pickup Tube

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Oil Pan

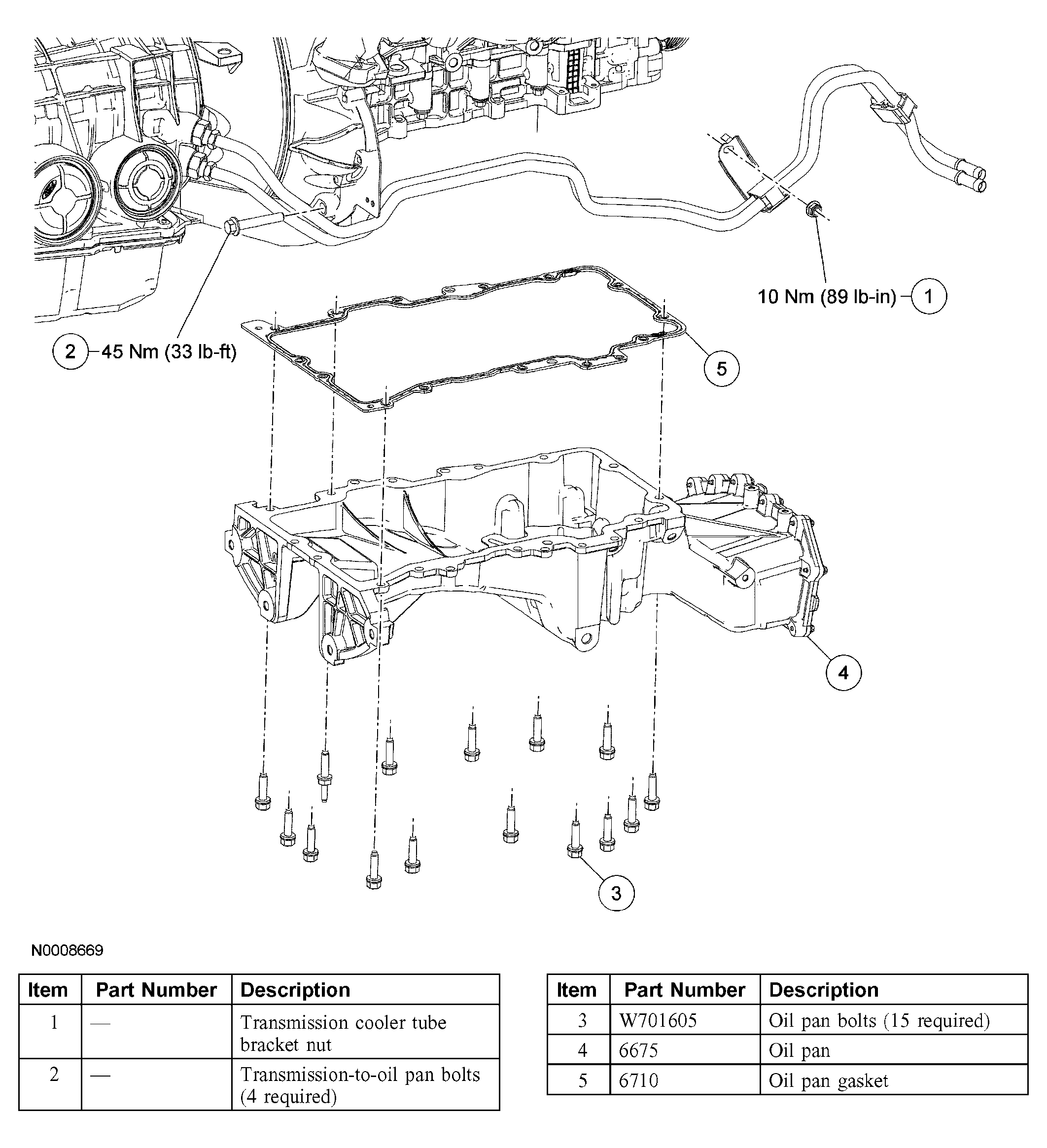

Fig 1: Exploded View Of Oil Pan, Oil Pump, Oil Pump Screen And Pickup Tube Oil Pan
G03995858Courtesy of FORD MOTOR CO.

Oil Pump and Oil Pump Screen and Pickup Tube

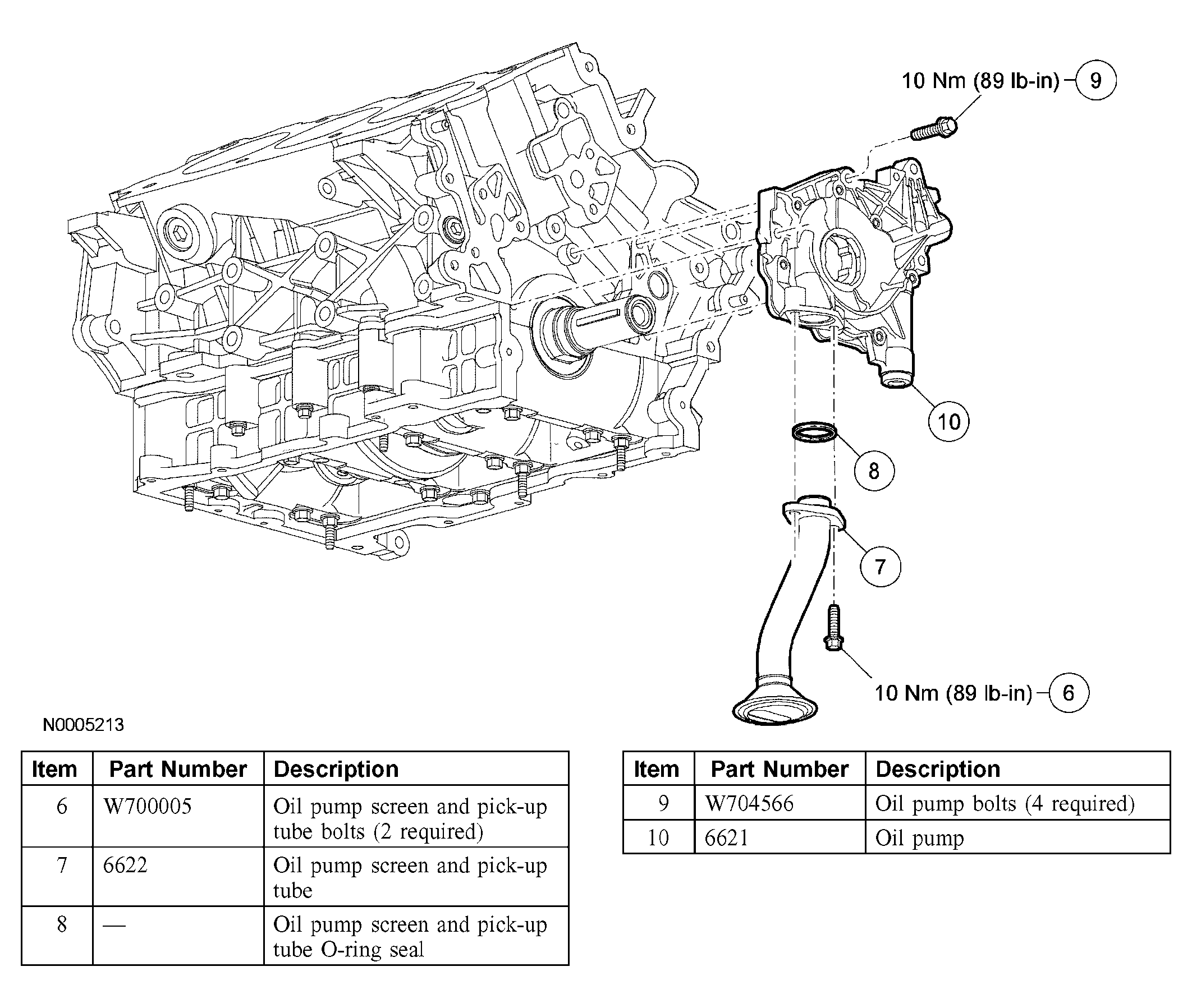

Fig 2: Identifying Oil Pump And Oil Pump Screen And Pickup Tube
G03995859Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article .
