Cylinder Head - RH: Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CYLINDER HEAD SPECIAL TOOL CHART - RH

G03950580
Three-Bar Engine Support Kit 303-F072
CYLINDER HEAD MATERIAL SPECIFICATION - RH

Item Specification
Silicone Gasket Remover ZC-30 -
Metal Surface Prep ZC-31 -
SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP WSS-M2C930-A

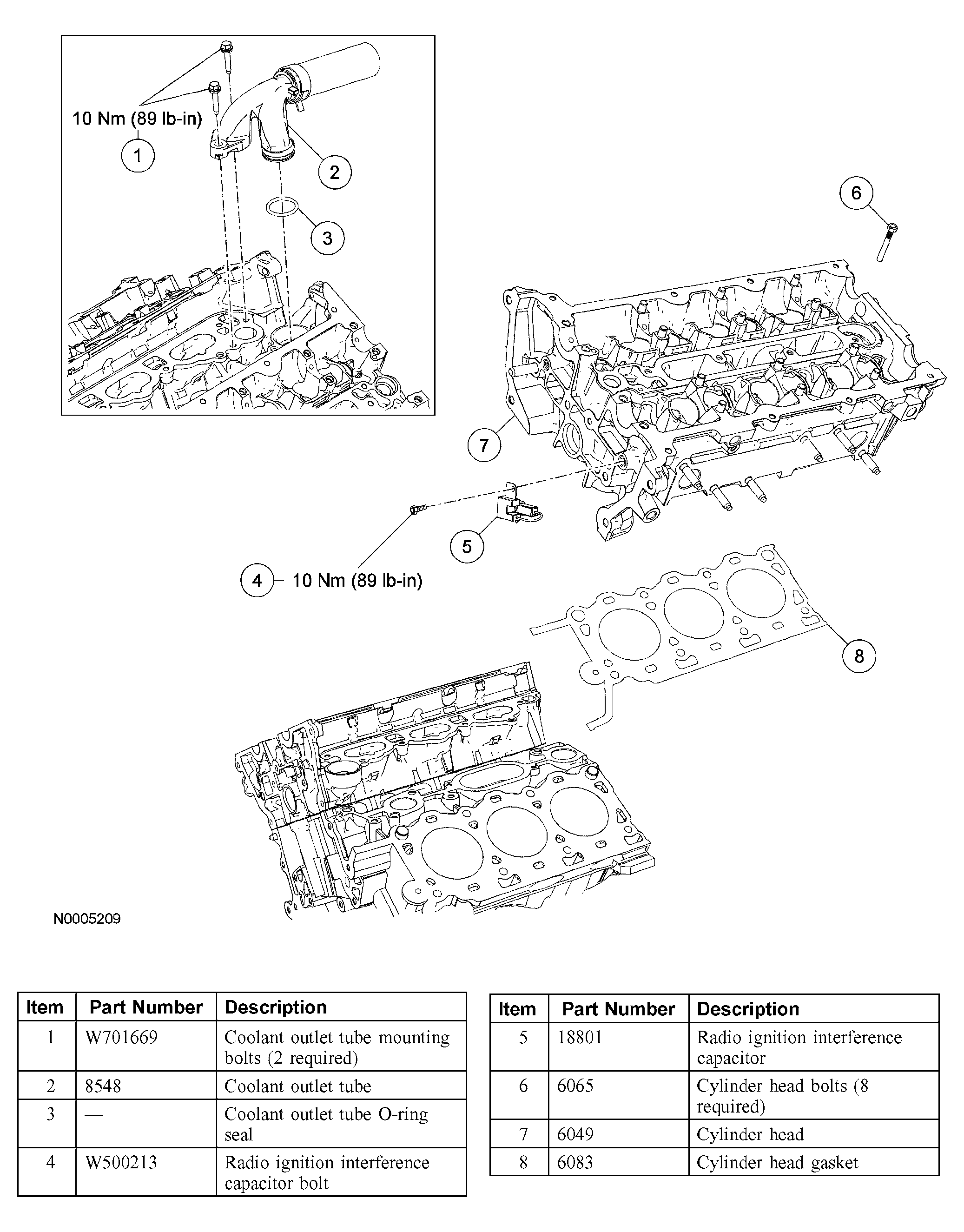

Fig 1: Identifying Components Of Cylinder Head - RH
G03995850Courtesy of FORD MOTOR CO.
