Tilt/Telescope Switch C2250

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

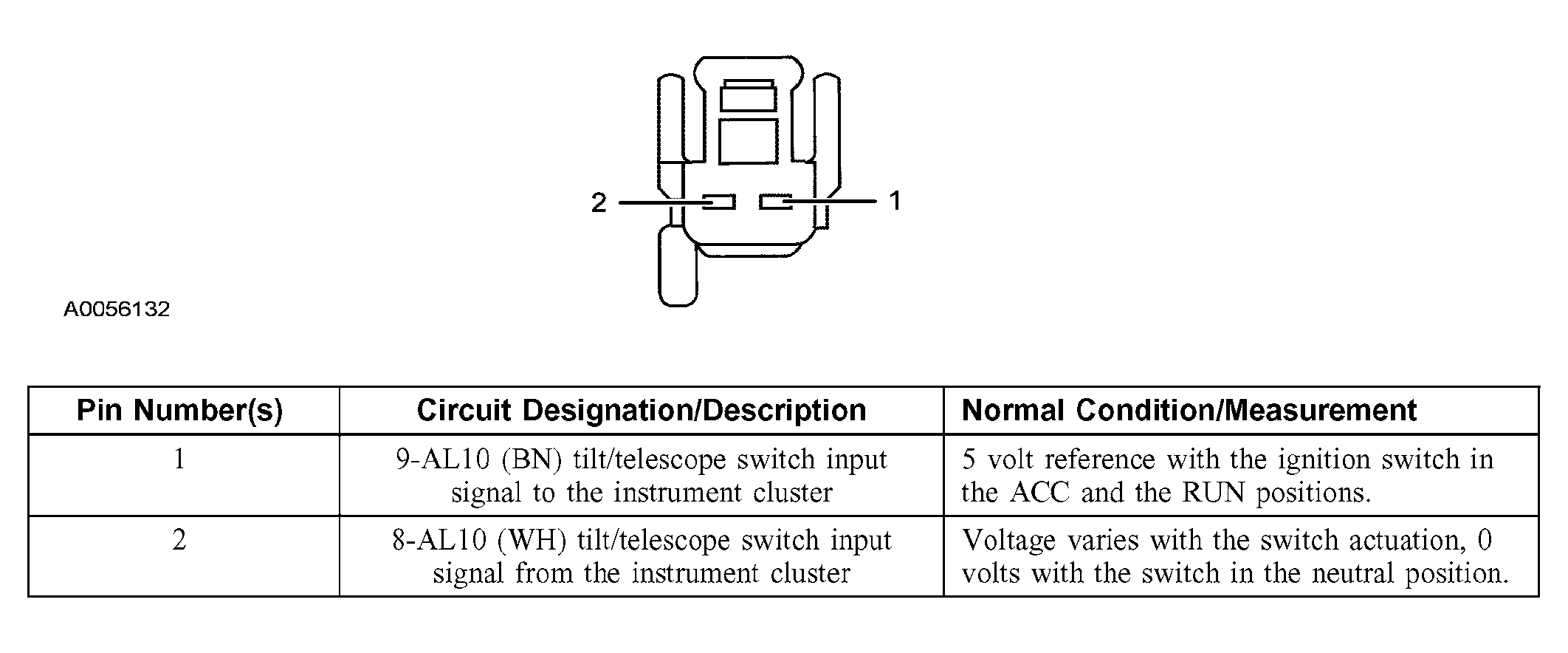

Fig 1: Identifying Tilt/Telescope Switch C2250 Connector Terminals
G03995650Courtesy of FORD MOTOR CO.
