Removal and Installation

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not remove the power steering pulley from the power steering pump. The power steering pulley is not removable and damage to the pulley may occur.
CAUTION: While repairing the power steering system, care should be taken to prevent the entry of contaminants or premature failure of the power steering components can result.

    All vehicles

  1. Remove the engine appearance cover.
  2. Remove the air cleaner and the air cleaner outlet tube. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
  3. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  4. Remove the LH front frame rail deflector shields.
  5. Rotate the tensioner and remove the engine accessory drive belt from the power steering pump pulley.

    6. 3.9L engine

  6. Disconnect the air conditioning compressor electrical connector.
  7. Remove the power steering line retainer bracket bolt and position the bracket aside.

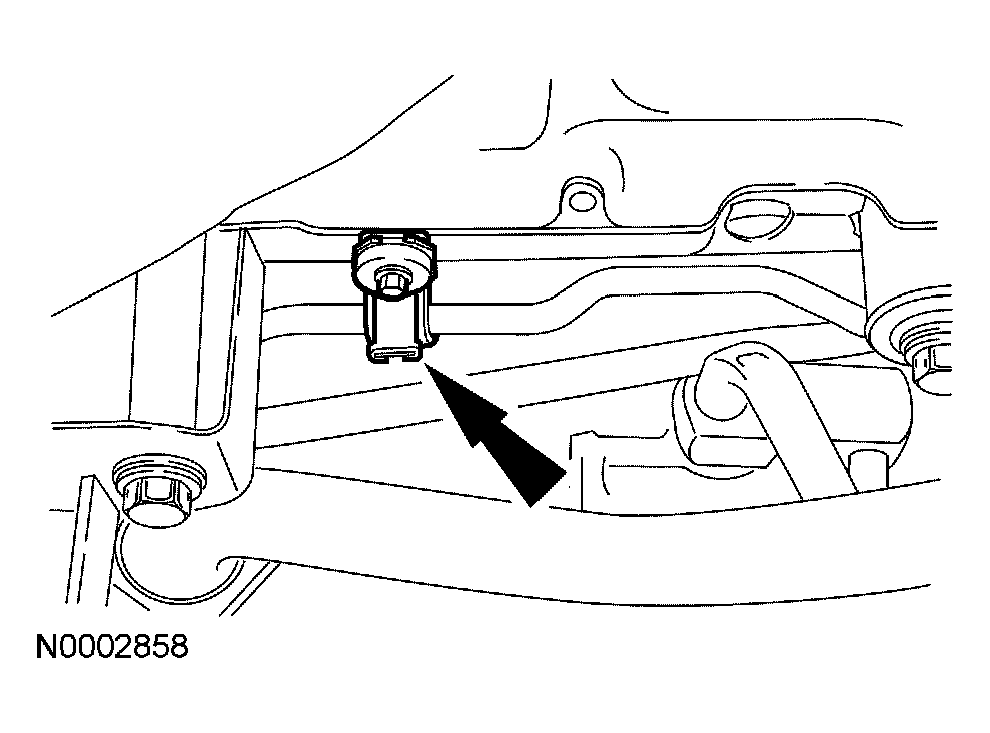

    Fig 1: Removing Power Steering Line Retainer Bracket Bolt And Bracket
    G03995629Courtesy of FORD MOTOR CO.
  8. Remove the 4 bolts and position the air conditioning compressor aside.

    9. All vehicles

  9. Disconnect the reservoir-to-pump supply hose clamp and remove the hose.
  10. Remove the 2 lower pump bolts.
  11. Disconnect the pressure line fitting.
  12. Remove and discard the Teflon® seal.
  13. Remove the 2 upper pump bolts.

    14. 3.9L engine

  14. Remove the 2 radiator hose tube-to-engine bolts.

    15. All vehicles

  15. Remove the pump.
