Power Steering Pump to Steering Gear Pressure Line: Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

POWER STEERING PUMP TO STEERING GEAR PRESSURE LINE SPECIAL TOOL

Installer Set, Teflon® Seal 211-D027 (D90P-3517-A) or equivalent

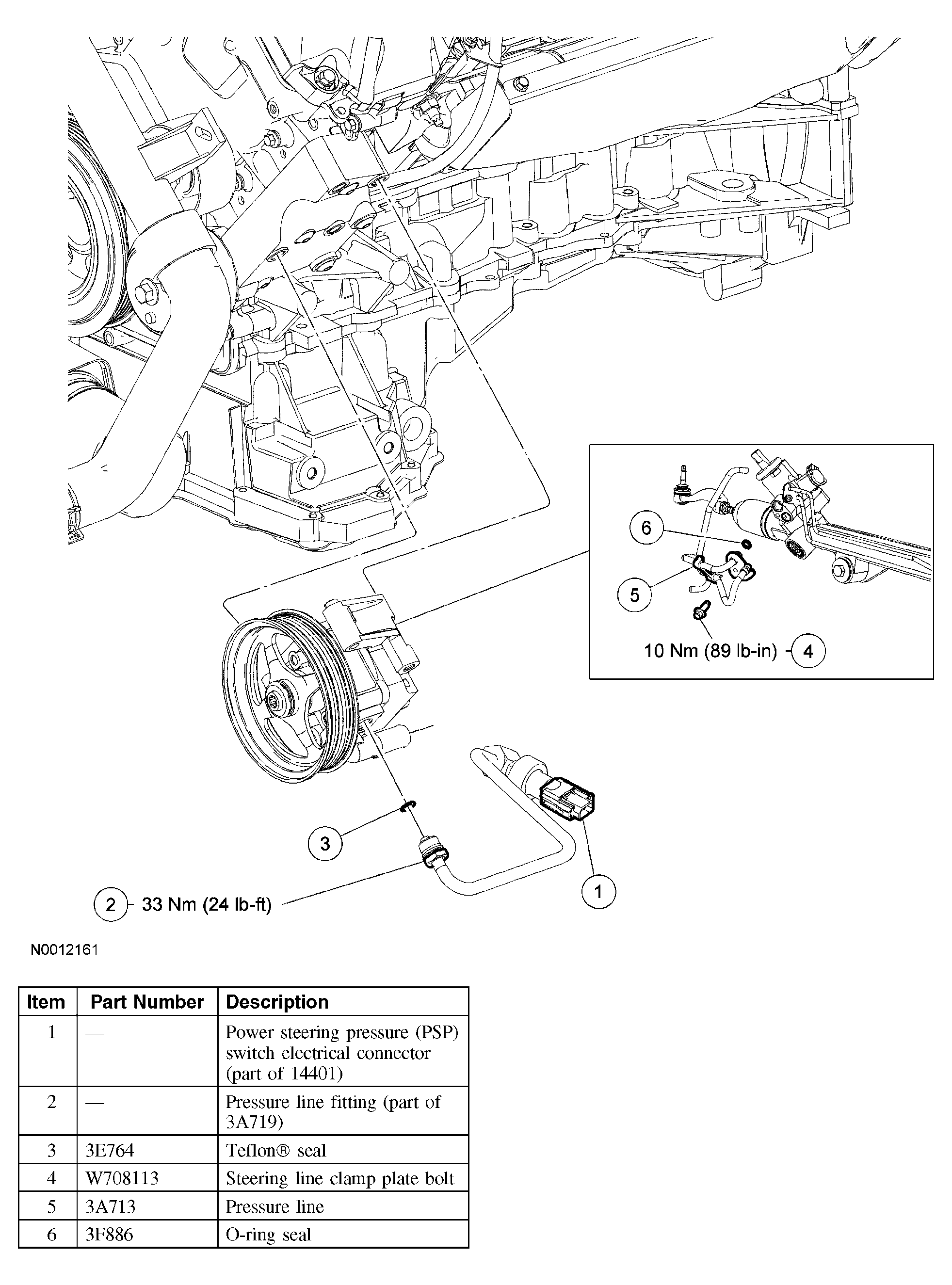

Fig 1: Identifying Power Steering Pump To Steering Gear Pressure Line

Courtesy of FORD MOTOR CO.
