Power Steering Fluid Cooler: Installation
WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
- Install the power steering fluid cooler and the 2 bolts.
- Tighten to 10 Nm (89 lb-in).
- Install the hose clamp and the upper transmission cooler line.
- Install the hose clamp and the lower transmission cooler line.
- Install the hose clamp and the cooler-to-reservoir return hose.
- Install the hose clamp and the steering gear-to-cooler hose.

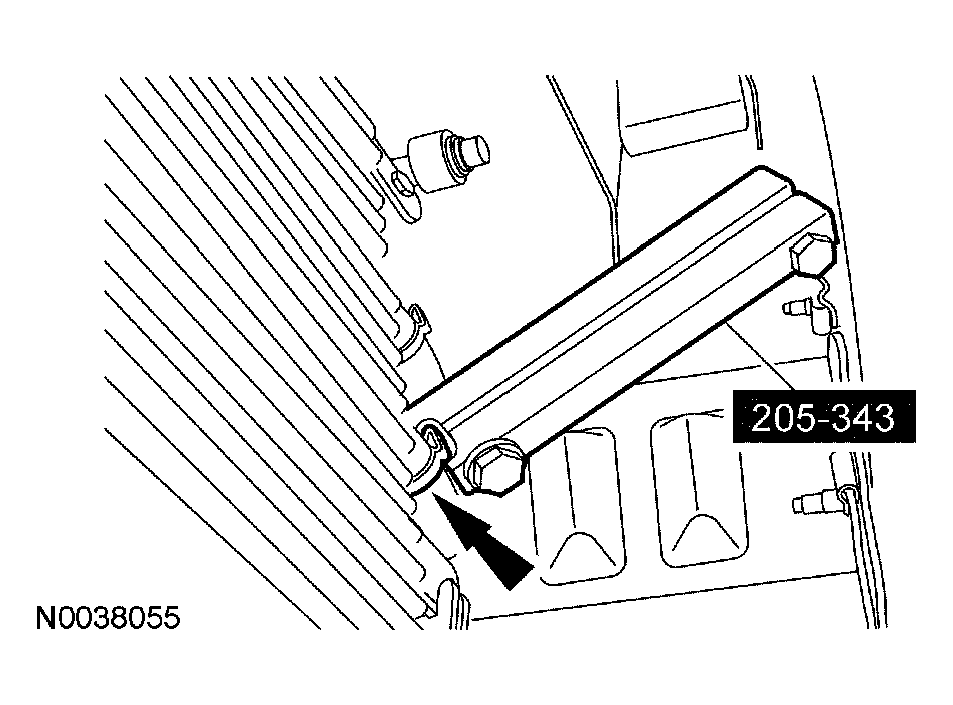

- Using the special tool, tighten the 4 hose clamps.
- Fill the power steering system. For additional information, refer to STEERING SYSTEM-GENERAL INFORMATION .
