Pinpoint Test I: DTCS C1987/C1988: YELLOW ELECTRONIC PARKING BRAKE (EPB) FAULT WARNING INDICATOR SHORT TO BATTERY/CIRCUIT FAILURE

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. I1 CHECK THE EPB SWITCH
    • Disconnect: EPB Switch C3218.
    • Measure the resistance between the EPB switch C3218-6, circuit 31S-CG14 (BK/GN), component side and the EPB switch C3218-7, circuit 75-CG14 (YE/GN), component side.

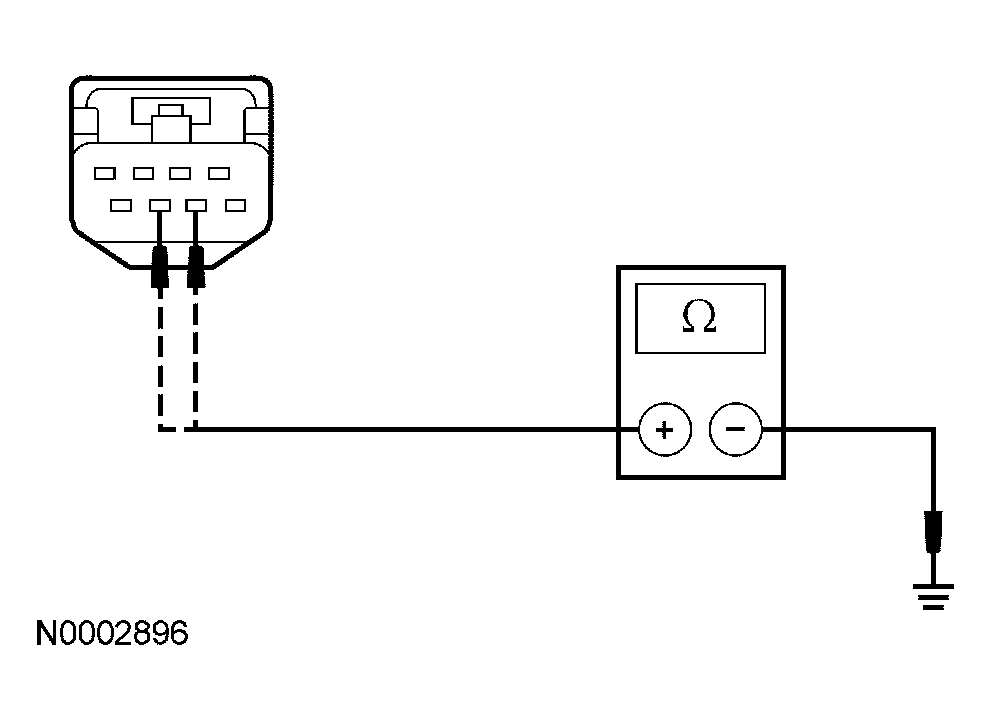

      Fig 1: Measuring Resistance Between EPB Switch C3218-6, Circuit 31S-CG14 (BK/GN), Component Side And EPB Switch C3218-7, Circuit 75-CG14 (YE/GN), Component Side
      G03995493Courtesy of FORD MOTOR CO.
    • Is the resistance less than 15 ohms
  2. I2 CHECK CIRCUIT 31S-CG14 (BK/GN) FOR A SHORT TO VOLTAGE
    • Disconnect: EPB Module C4205b.
    • Measure the voltage between the EPB module C4205b-2, circuit 31S-CG14 (BK/GN), harness side and ground.

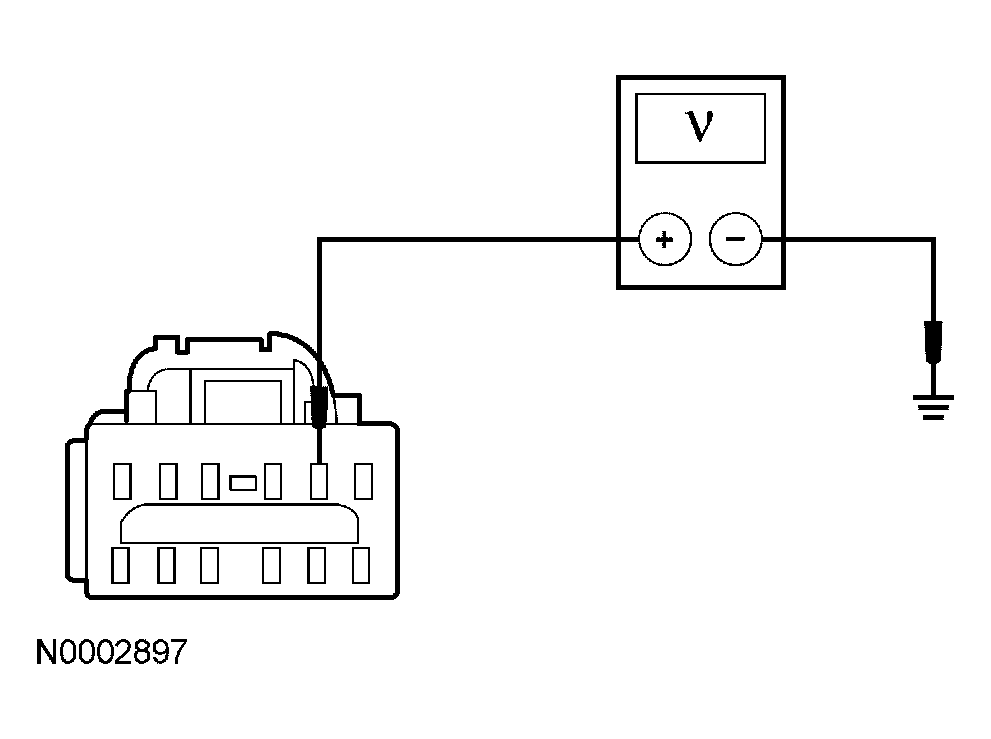

      Fig 2: Measuring Voltage Between EPB Module C4205B-2, Circuit 31S-CG14 (BK/GN), Harness Side And Ground
      G03995494Courtesy of FORD MOTOR CO.
    • Is voltage present
  3. I3 CHECK CIRCUIT 31S-CG14 (BK/GN) FOR A SHORT TO GROUND
    • Measure the resistance between the EPB module C405b-2, circuit 31S-CG14 (BK/GN) harness side and ground; and between the EPB switch C3218-6, circuit 31S-CG14 (BK/GN), harness side and ground.

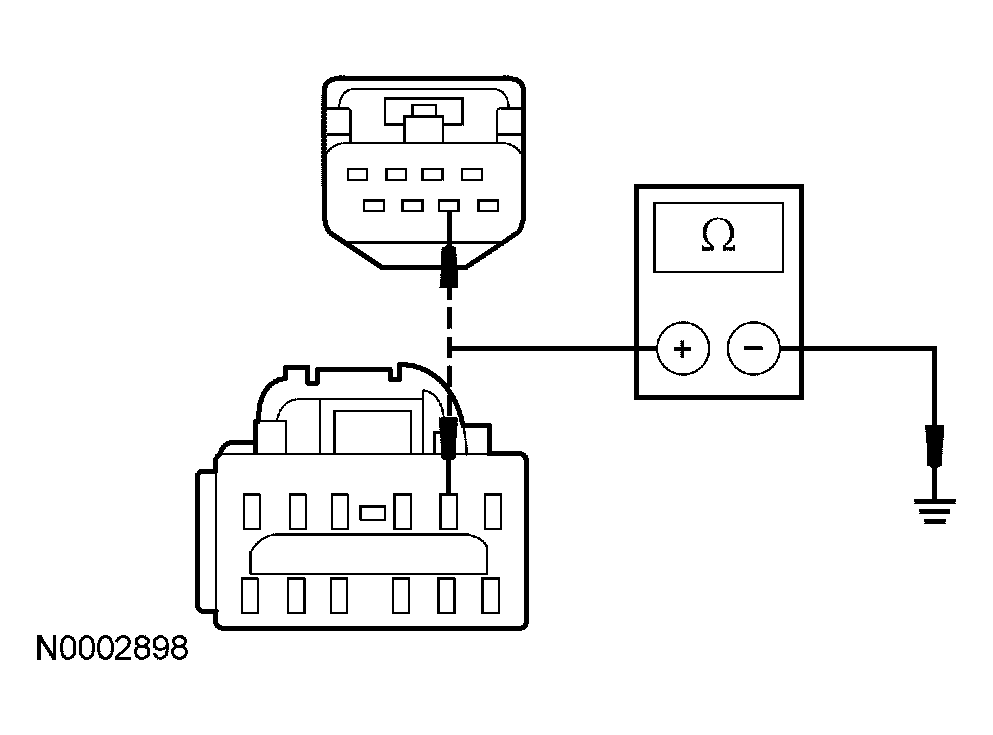

      Fig 3: Measuring Resistance Between EPB Module C405b-2, Circuit 31S-CG14 Harness Side And Ground; And Between EPB Switch C3218-6, Circuit 31S-CG14, Harness Side And Ground
      G03995495Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10,000 ohms
  4. I4 CHECK CIRCUIT 31S-CG14 (BK/GN) FOR AN OPEN
    • Disconnect the battery. Refer to CHARGING SYSTEM - GENERAL INFORMATION .
    • Measure the resistance between the EPB module C4205b-2, circuit 31S-CG14 (BK/GN), harness side and the EPB switch C3218-6, circuit 31S-CG14 (BK/GN), harness side.

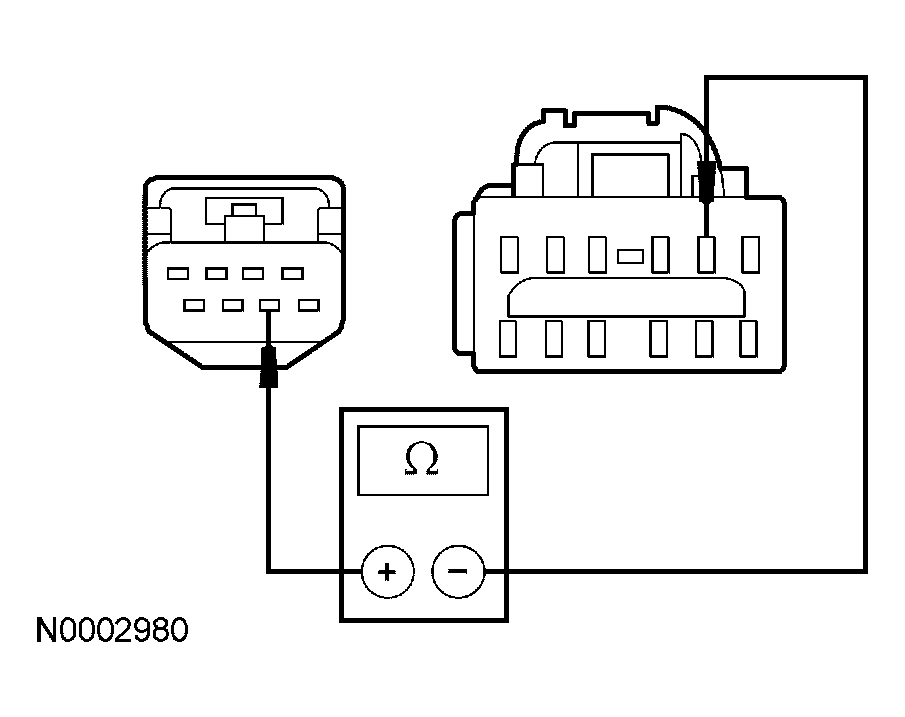

      Fig 4: Measuring Resistance Between EPB Module C4205b-2, Circuit 31S-CG14 (BK/GN), Harness Side And EPB Switch C3218-6, Circuit 31S-CG14 (BK/GN), Harness Side
      G03995496Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms
  5. I5 CHECK CIRCUIT 75-CG14 (YE/GN) FOR AN OPEN
    • Measure the resistance between the EPB switch C3218-7, circuit 75-CG14 (YE/GN), harness side and the CJB fuse 7 (5A) output cavity.

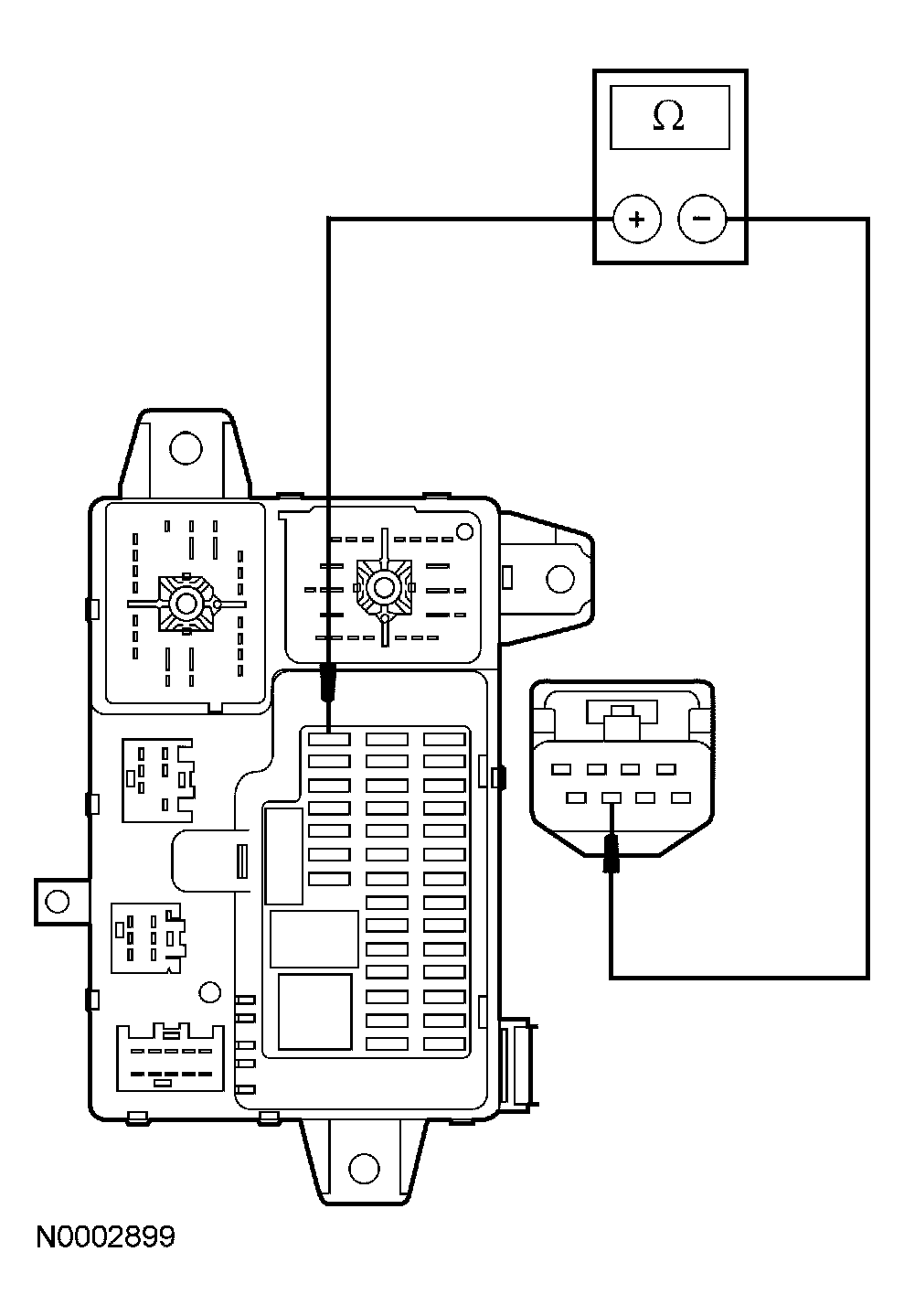

      Fig 5: Measuring Resistance Between EPB Switch C3218-7, Circuit 75-CG14 (YE/GN), Harness Side And CJB Fuse 7 (5A) Output Cavity
      G03995497Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms
