Rear Brake Caliper: Material

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
BRAKE CALIPER MATERIAL SPECIFICATION

Item Specification
High Performance DOT 3 Brake Fluid PM-1 (Canada CPM-1) ESA-M6C25-A
Brake Parts Cleaner PM-4 -

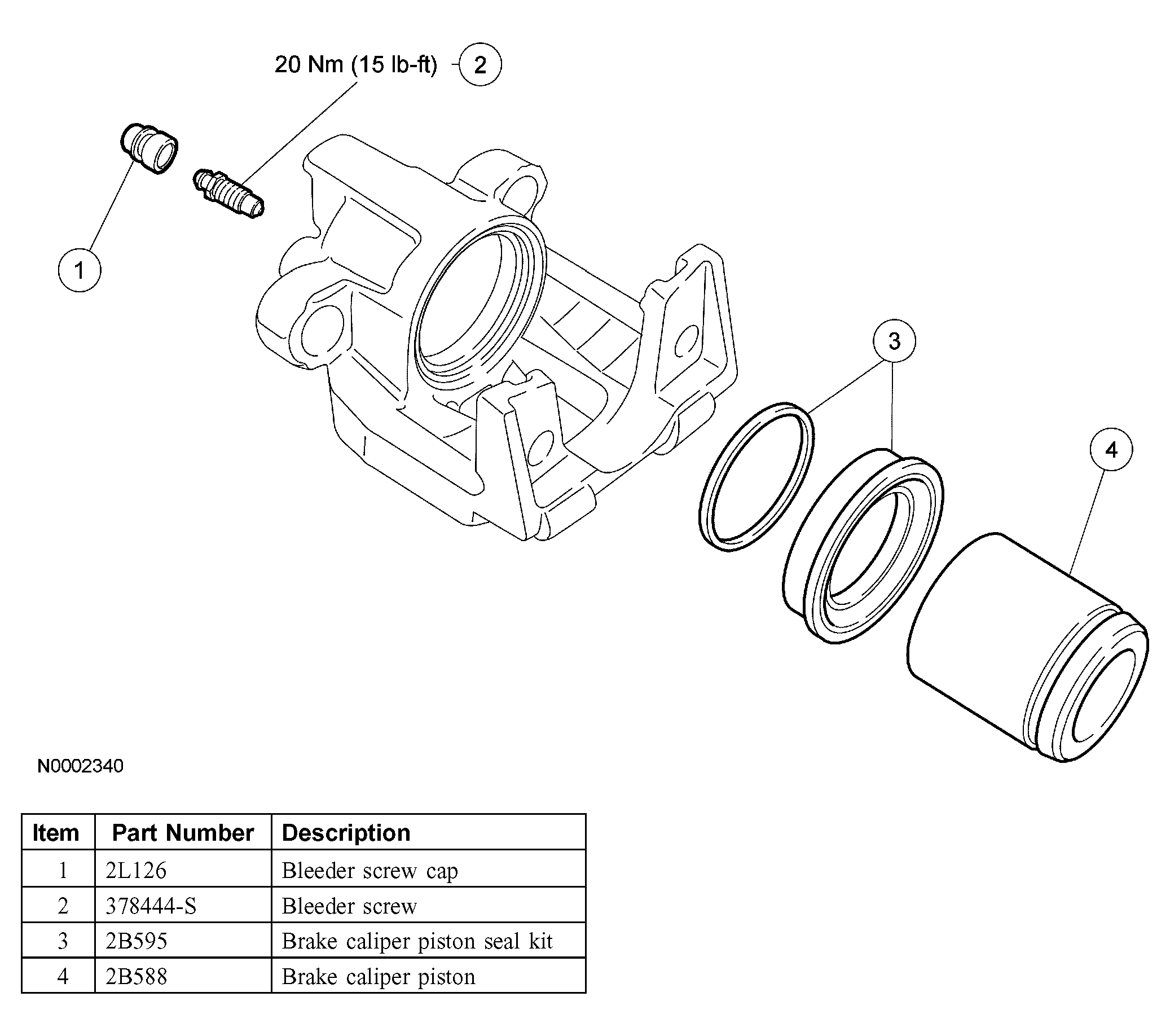

Fig 1: Identifying Components Of Brake Caliper
G03995460Courtesy of FORD MOTOR CO.
