Wheel Studs: Removal

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the rear brake disc. For additional information, refer to REAR DISC BRAKE .

NOTE: Cut off 1 inch of the stud to ease removal if necessary.

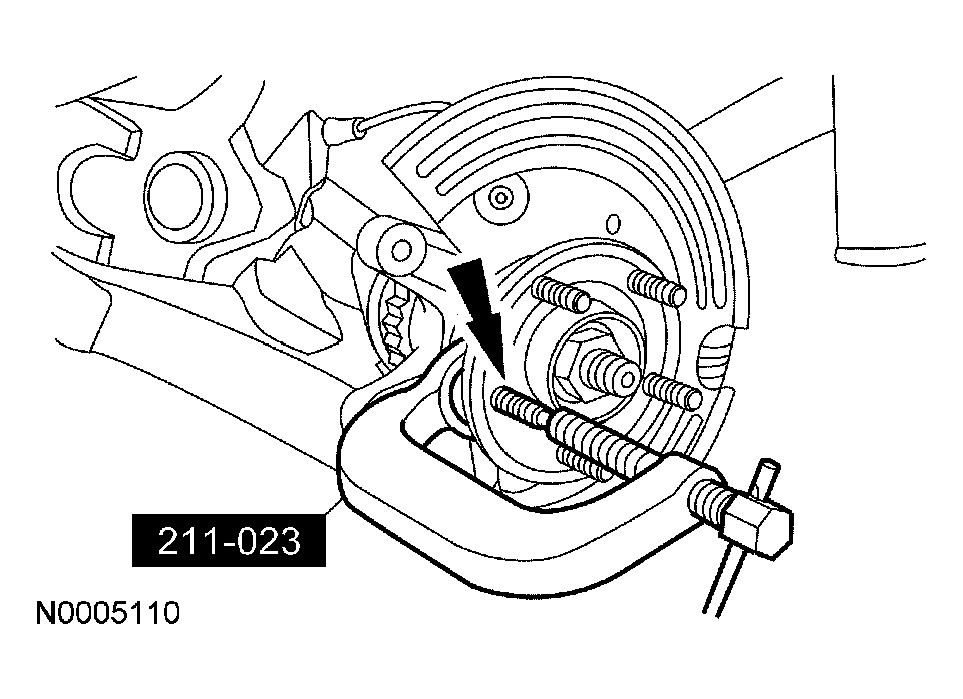

Fig 1: Pressing Wheel Stud Out Of Rear Hub Between Caliper Mounting Pads

Courtesy of FORD MOTOR CO.

Using the special tool, press the wheel stud out of the rear hub between the caliper mounting pads.
- Discard the wheel stud. Do not reuse wheel studs.
