Rear Toe Adjustment

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Start the engine and center the steering wheel.
Turn the engine off, and hold the steering wheel in the "straight forward" position using a suitable holding device.
Loosen the toe link jam nut.
- Clean the nut and toe link threads.

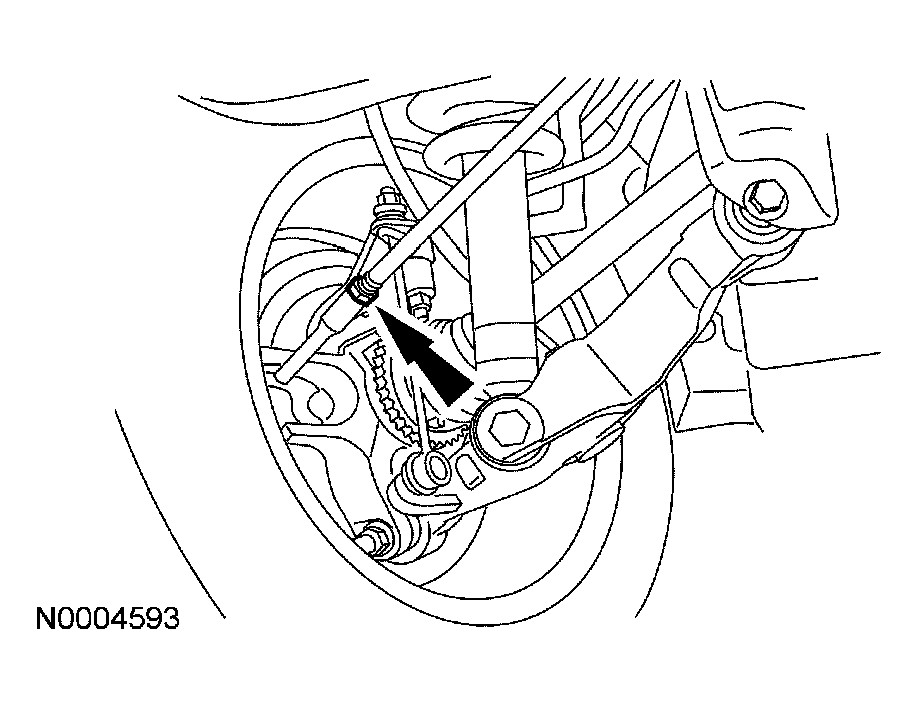

Fig 1: Locating Toe Link Jam Nut
Courtesy of FORD MOTOR CO.
Rotate the toe link to adjust the toe.

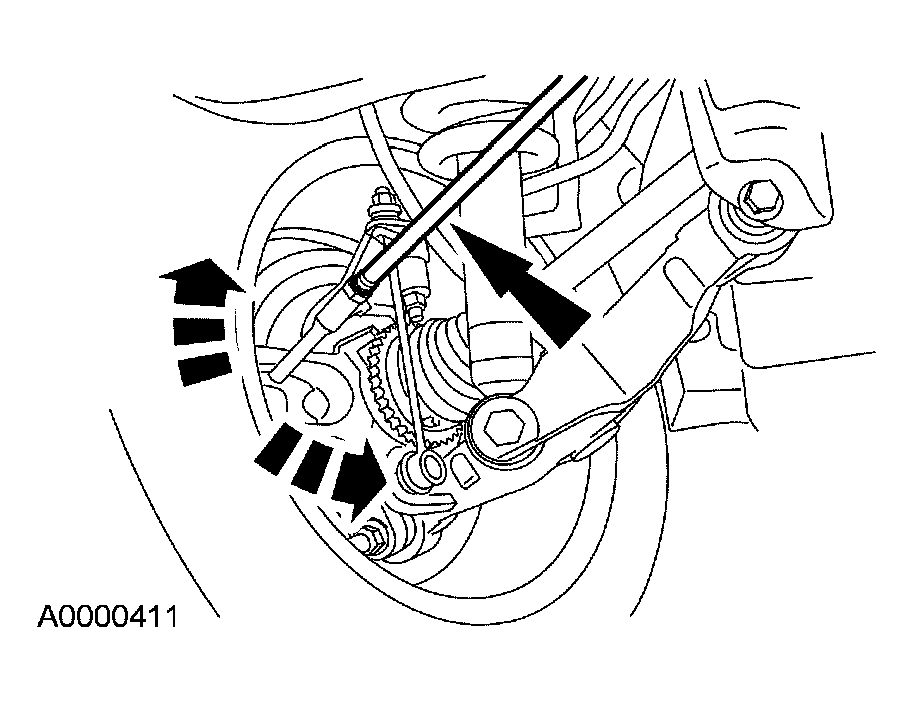

Fig 2: Rotating Toe Link To Adjust Toe
Courtesy of FORD MOTOR CO.
Tighten the toe link jam nut.
- Tighten to 55 Nm (41 lb-ft).

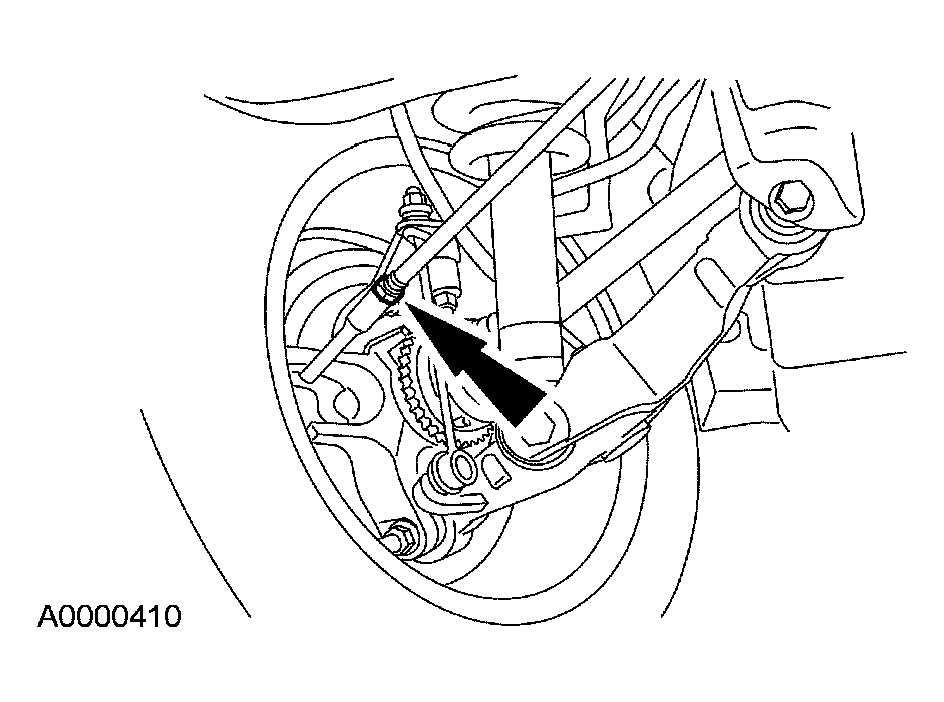

Fig 3: Tightening Toe Link Jam Nut
Courtesy of FORD MOTOR CO.
Recheck the toe settings and adjust if necessary.
